Littelfuse 1-Element Bi-Directional TVS Diode, 5 kW, 2-Pin P600
- RS Stock No.:
- 764-5455P
- Mfr. Part No.:
- 5KP33CA
- Brand:
- Littelfuse

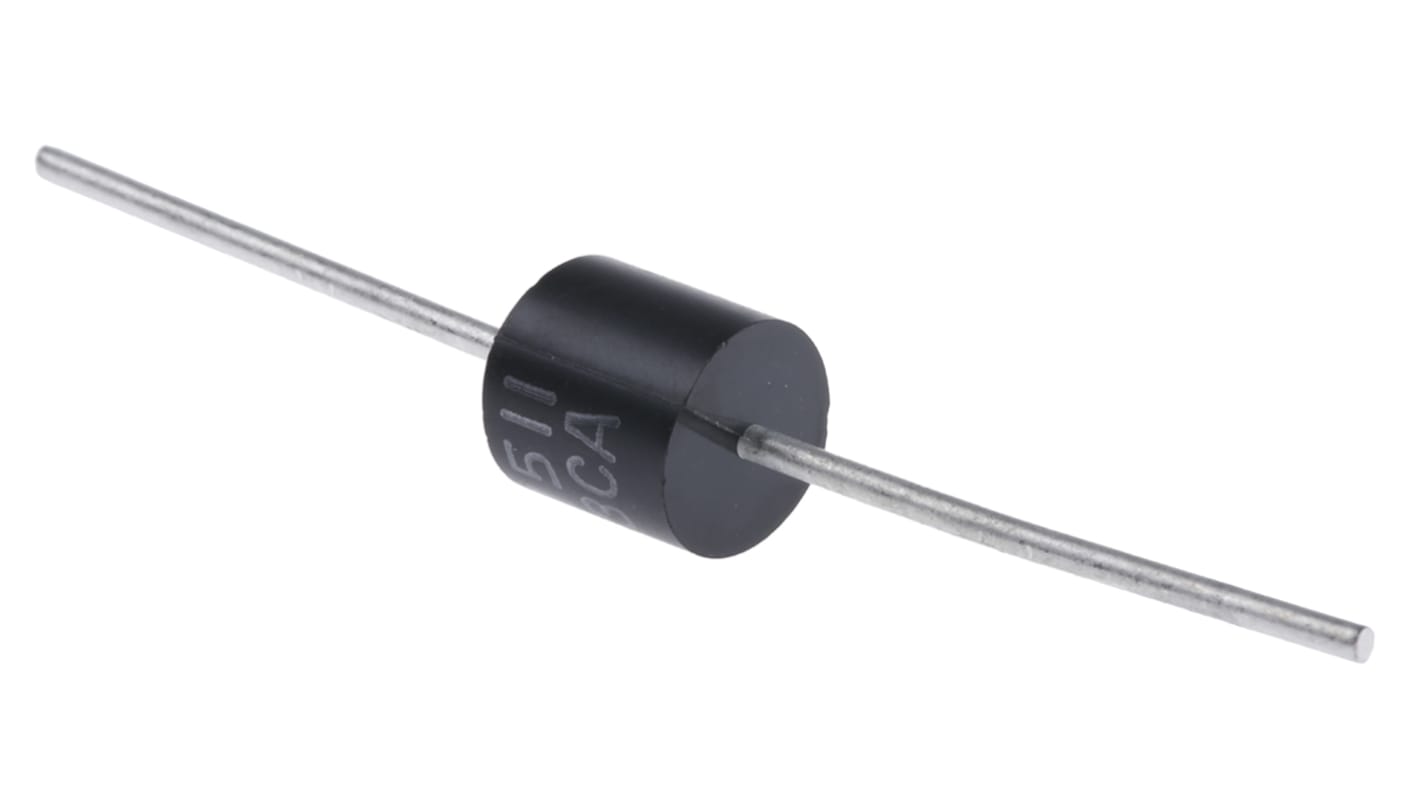

This image is representative of the product range
Bulk discount available
Subtotal 200 units (supplied on a reel)*
$801.20
(exc. GST)
$881.40
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- Plus 1,275 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 200 - 395 | $4.006 |
| 400 + | $3.932 |
*price indicative
- RS Stock No.:
- 764-5455P
- Mfr. Part No.:
- 5KP33CA
- Brand:
- Littelfuse
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Littelfuse | |
| Product Type | TVS Diode | |
| Diode Configuration | Single | |
| Direction Type | Bi-Directional | |
| Minimum Breakdown Voltage Vbr | 36.7V | |
| Mount Type | Through Hole | |
| Package Type | P600 | |
| Maximum Reverse Stand-off Voltage Vwm | 33V | |
| Pin Count | 2 | |
| Peak Pulse Power Dissipation Pppm | 5kW | |
| Maximum Peak Pulse Current Ippm | 95.7A | |
| Clamping Voltage VC | 53.3V | |
| Test Current It | 5mA | |
| ESD Protection | Yes | |
| Minimum Operating Temperature | -55°C | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | 175°C | |
| Series | 5KP | |
| Standards/Approvals | No | |
| Length | 9.1mm | |
| Maximum Reverse Leakage Current | 2μA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Littelfuse | ||
Product Type TVS Diode | ||
Diode Configuration Single | ||
Direction Type Bi-Directional | ||
Minimum Breakdown Voltage Vbr 36.7V | ||
Mount Type Through Hole | ||
Package Type P600 | ||
Maximum Reverse Stand-off Voltage Vwm 33V | ||
Pin Count 2 | ||
Peak Pulse Power Dissipation Pppm 5kW | ||
Maximum Peak Pulse Current Ippm 95.7A | ||
Clamping Voltage VC 53.3V | ||
Test Current It 5mA | ||
ESD Protection Yes | ||
Minimum Operating Temperature -55°C | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature 175°C | ||
Series 5KP | ||
Standards/Approvals No | ||
Length 9.1mm | ||
Maximum Reverse Leakage Current 2μA | ||
Automotive Standard No | ||
TVS Diodes Axial Bidirectional 5000W, 5KP Series, Littelfuse
The 5KP series from Littelfuse is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
