- RS Stock No.:
- 202-6930
- Mfr. Part No.:
- SP4010-02HTG
- Brand:
- Littelfuse
2800 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (On a Reel of 3000)
$0.588
(exc. GST)
$0.647
(inc. GST)
Units | Per unit | Per Reel* |
---|---|---|
3000 - 3000 | $0.588 | $1,764.00 |
6000 - 9000 | $0.574 | $1,722.00 |
12000 + | $0.565 | $1,695.00 |
*price indicative
- RS Stock No.:
- 202-6930
- Mfr. Part No.:
- SP4010-02HTG
- Brand:
- Littelfuse
Technical data sheets
Legislation and Compliance
Product Details

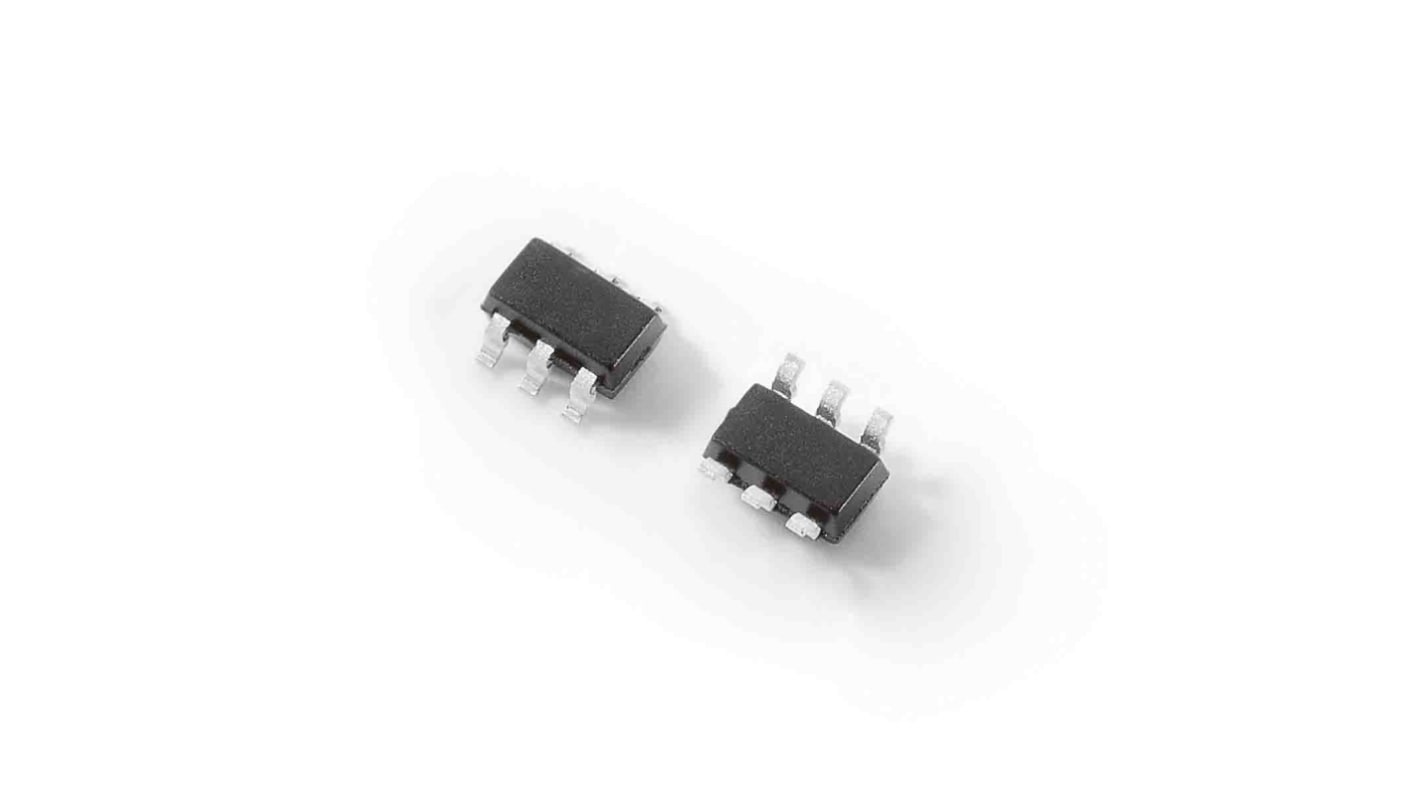

The SP4010 integrates 2 channels of ultra low capacitance asymmetrical protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust components can safely absorb repetitive ESD strikes above the maximum contact level specified in the IEC 61000-4-2 international standard (±30kV contact discharge) without performance degradation. The extremely low off-state capacitance also makes it ideal for protecting high speed signal lines such as USB3.0,HDMI, USB2.0, and eSATA.
ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
EFT, IEC 61000-4-4, 40A (tP=5/50ns)
Lightning, IEC 61000-4-5 2nd edition, 23A (tP=8/20μs)
Low capacitance of 0.48pF @0V, 1MHz (TYP) per I/O
Low leakage current of 0.2μA (MAX) at 10V
AEC-Q101 qualified
Moisture Sensitivity Level (MSL-1)
Halogen free, lead free and RoHS compliant
EFT, IEC 61000-4-4, 40A (tP=5/50ns)
Lightning, IEC 61000-4-5 2nd edition, 23A (tP=8/20μs)
Low capacitance of 0.48pF @0V, 1MHz (TYP) per I/O
Low leakage current of 0.2μA (MAX) at 10V
AEC-Q101 qualified
Moisture Sensitivity Level (MSL-1)
Halogen free, lead free and RoHS compliant
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Diode Configuration | Array |
Direction Type | Uni-Directional |
Maximum Clamping Voltage | 43V |
Minimum Breakdown Voltage | 10.5V |
Mounting Type | Surface Mount |
Package Type | SOT-23 |
Pin Count | 6 |
Number of Elements per Chip | 2 |
