Texas Instruments SN74LVC2T45DCTR, Voltage Level Shifter Bus Transceiver 1 Voltage Level, 8-Pin

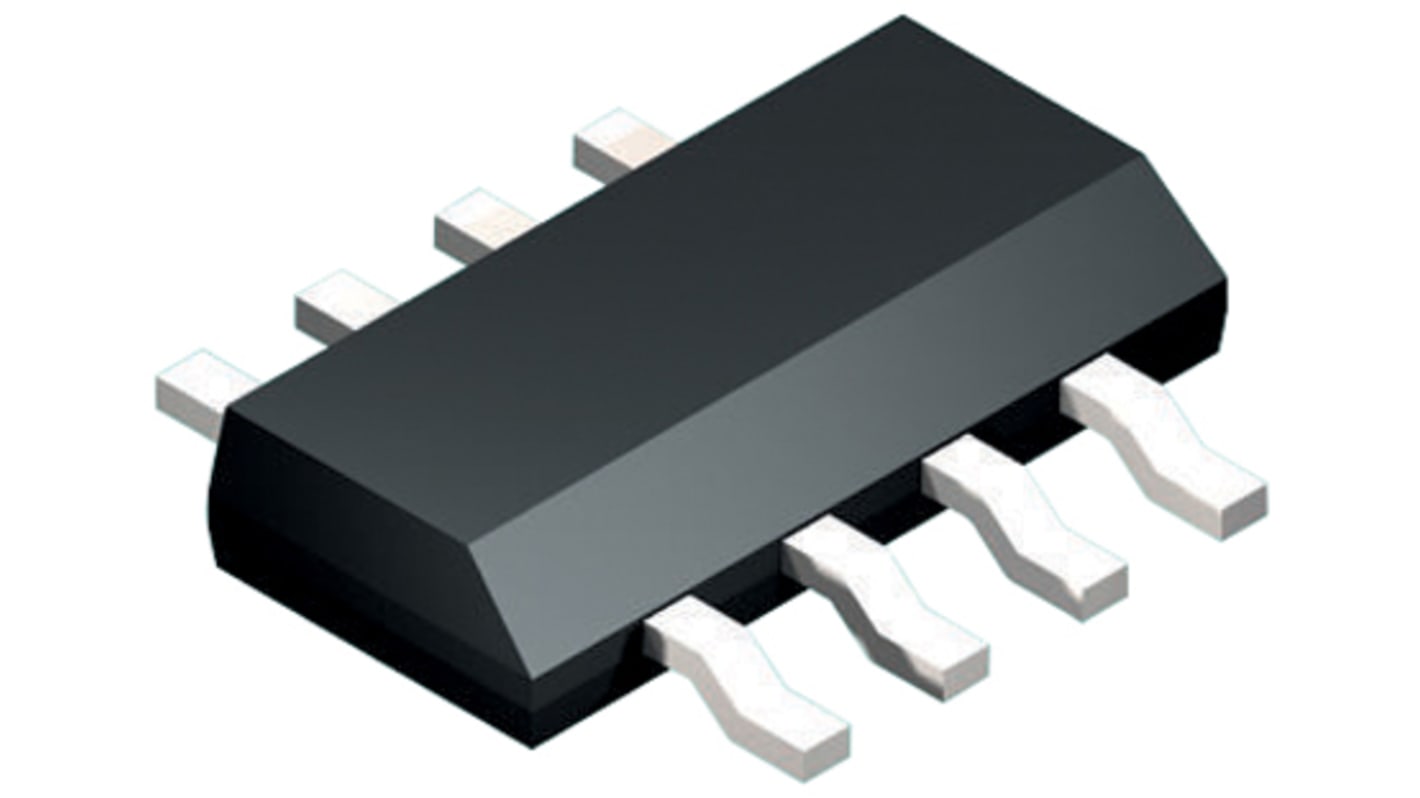

This image is representative of the product range

View all Translator ICs
Bulk discount available
View bulk pricing options

Subtotal (1 pack of 10 units)*

$12.72

(exc. GST)

$13.99

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 160 unit(s) ready to ship from another location
  • Plus 910 unit(s) shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
10 - 740$1.272$12.72
750 - 1490$1.254$12.54
1500 +$1.228$12.28

*price indicative

Packaging Options:
RS Stock No.:
825-3467
Mfr. Part No.:
SN74LVC2T45DCTR
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Product Type

Voltage Level Shifter

Direction Type

Bi-Directional

Logic Family

LVC

Maximum Propagation Delay Time @ CL

4.4ns

Mount Type

Surface

Number of Elements per Chip

1

Output Type

3 State

Pin Count

8

Logic Function

Bus Transceiver

Maximum Low Level Output Current

32mA

Minimum Supply Voltage

1.65V

Maximum High Level Output Current

-32mA

Maximum Supply Voltage

5.5V

Translation

Voltage Level

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

No

Series

SN74LVC2T

Height

2.1mm

Length

2.4mm

Automotive Standard

No

74LVC2T Family, Texas Instruments


Low-Voltage CMOS logic

Single gate package

Operating Voltage: 1.65 to 5.5 V

Compatibility: Input LVTTL/TTL, Output LVCMOS

74LVC Family
