Maxim Integrated MAX3393EEUD+, Voltage Level Translator Voltage Level Translator 4 Bi-Directional, 14-Pin TSSOP

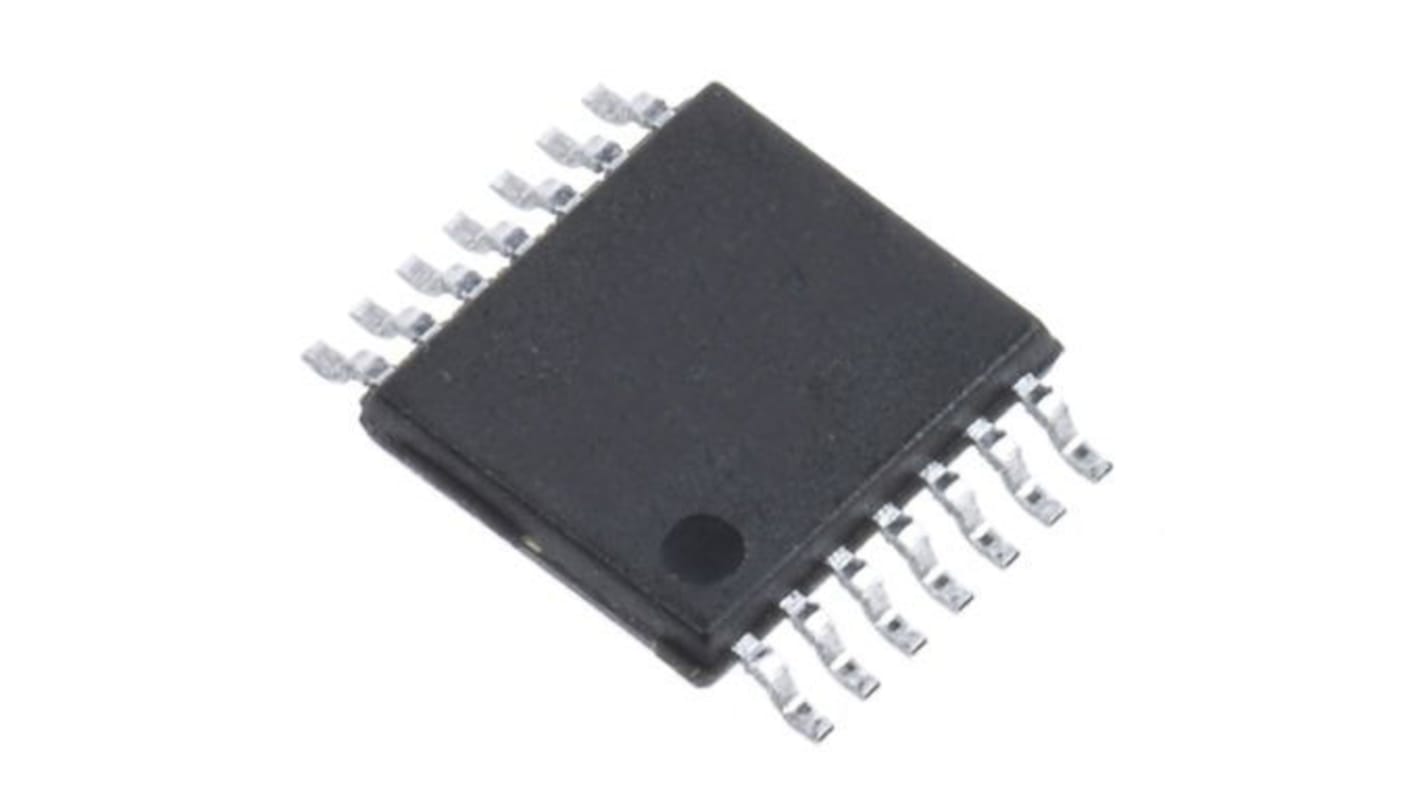

This image is representative of the product range

View all Translator ICs
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Packaging Options:
RS Stock No.:
190-5946
Mfr. Part No.:
MAX3393EEUD+
Brand:
Maxim Integrated
Find similar products by selecting one or more attributes.
Select all

Brand

Maxim Integrated

Direction Type

Uni-Directional

Product Type

Voltage Level Translator

Logic Family

BiCMOS

Maximum Propagation Delay Time @ CL

20ns

Mount Type

Surface

Package Type

TSSOP

Number of Elements per Chip

4

Pin Count

14

Output Type

Open Drain, 3 State

Logic Function

Voltage Level Translator

Maximum Low Level Output Current

1μA

Minimum Supply Voltage

1.65V

Maximum High Level Output Current

0.02μA

Translation

Bi-Directional

Maximum Supply Voltage

5.5V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

5.1mm

Series

MAX3393E

Standards/Approvals

No

Width

4.5 mm

Height

0.95mm

Automotive Standard

No

COO (Country of Origin):
MY
Guaranteed Data Rate Options

230kbps

8Mbps (+1.2V ≤ VL ≤ VCC ≤ +5.5V)

10Mbps (+1.2V ≤ VL ≤ VCC ≤ +3.3V)

16Mbps (+1.8V ≤ VL ≤ VCC ≤ +2.5V and +2.5V ≤ VL = VCC ≤ +3.3V)

Bidirectional Level Translation (MAX3372E/MAX3373E and MAX3377E/MAX3378E)

Operation Down to +1.2V on VL

±15kV ESD Protection on I/O VCC Lines

Ultra-Low 1μA Supply Current in Three-State Output Mode

Low-Quiescent Current (130μA typ)

UCSP, TDFN, SOT23, and TSSOP Packages

Thermal Short-Circuit Protection

Applications

Cell Phones

Cell-Phone Cradles

GPS

Low-Cost Serial Interfaces

Low-Voltage ASIC Level Translation

Portable Communication Devices

Portable POS Systems

Smart Card Readers

SPI, MICROWIRE®, and I²C Level Translation

Telecommunications Equipment
