Maxim Integrated, Voltage Level Translator Logic Level Translator 6 Bi-Directional, 14-Pin TDFN
- RS Stock No.:
- 190-4891
- Mfr. Part No.:
- MAX14611ETD+T
- Brand:
- Maxim Integrated

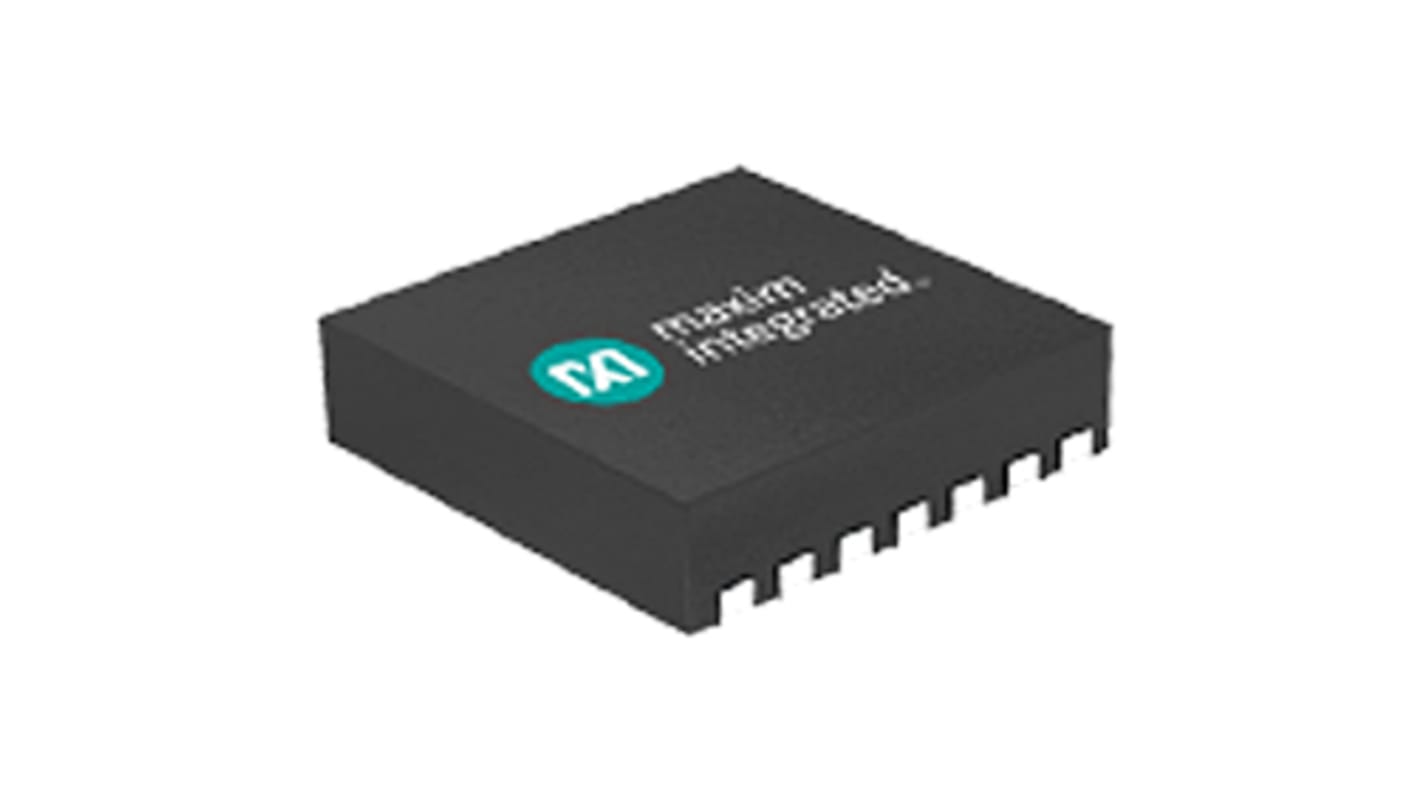

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 190-4891
- Mfr. Part No.:
- MAX14611ETD+T
- Brand:
- Maxim Integrated
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Direction Type | Bi-Directional | |
| Logic Family | BiCMOS | |
| Product Type | Voltage Level Translator | |
| Maximum Propagation Delay Time @ CL | 40ns | |
| Mount Type | Surface | |
| Number of Elements per Chip | 6 | |
| Package Type | TDFN | |
| Pin Count | 14 | |
| Output Type | Open Drain, 3 State | |
| Logic Function | Logic Level Translator | |
| Maximum High Level Output Current | 50mA | |
| Minimum Supply Voltage | 1.65V | |
| Maximum Supply Voltage | 5.5V | |
| Translation | Bi-Directional | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Series | MAX14611 | |
| Standards/Approvals | No | |
| Length | 3.1mm | |
| Width | 3.1 mm | |
| Height | 0.75mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Direction Type Bi-Directional | ||
Logic Family BiCMOS | ||
Product Type Voltage Level Translator | ||
Maximum Propagation Delay Time @ CL 40ns | ||
Mount Type Surface | ||
Number of Elements per Chip 6 | ||
Package Type TDFN | ||
Pin Count 14 | ||
Output Type Open Drain, 3 State | ||
Logic Function Logic Level Translator | ||
Maximum High Level Output Current 50mA | ||
Minimum Supply Voltage 1.65V | ||
Maximum Supply Voltage 5.5V | ||
Translation Bi-Directional | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Series MAX14611 | ||
Standards/Approvals No | ||
Length 3.1mm | ||
Width 3.1 mm | ||
Height 0.75mm | ||
Automotive Standard No | ||
Improved Interoperability
10kΩ Internal Pullup Resistor
Pin-to-Pin Compatible with the MAX3377E and the MAX3378E
0.9V Operation on Low Voltage Supply
Robust Logic-Level Translation
±0.5V Tolerances on All Pins
±6kV Human Body Model ESD Protection
Thermal Short-Circuit Protection
Short to Ground Fault Protection on All Pins
-40°C to +85°C Operating Temperature Range
Increased Design Flexibility
Ultra-Low Supply Current
Pullup Resistor Enabled with a Single Power Supply when Active-Low TS = High
10Ω (max) Transmission Gate FET
Small, 14-Pin, 3.0mm x 3.0mm TDFN Package and 14-Pin, 4.9mm x 5.1mm TSSOP Package
Applications
Low-Voltage ASIC Level Translation
Mobile Phones
Portable Electronics
POS Systems
SPI, I²C, and MDIO Level Translation
Telecommunications Equipment
