Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, On-On, SPDT, Tab Terminal

RS Stock No.:: 861-0289
Mfr. Part No.:: C3910BAAAA
Brand:: Arcolectric (Bulgin) Ltd

Arcolectric (Bulgin) Ltd Toggle Switch, Panel Mount, On-On, SPDT, Tab Terminal

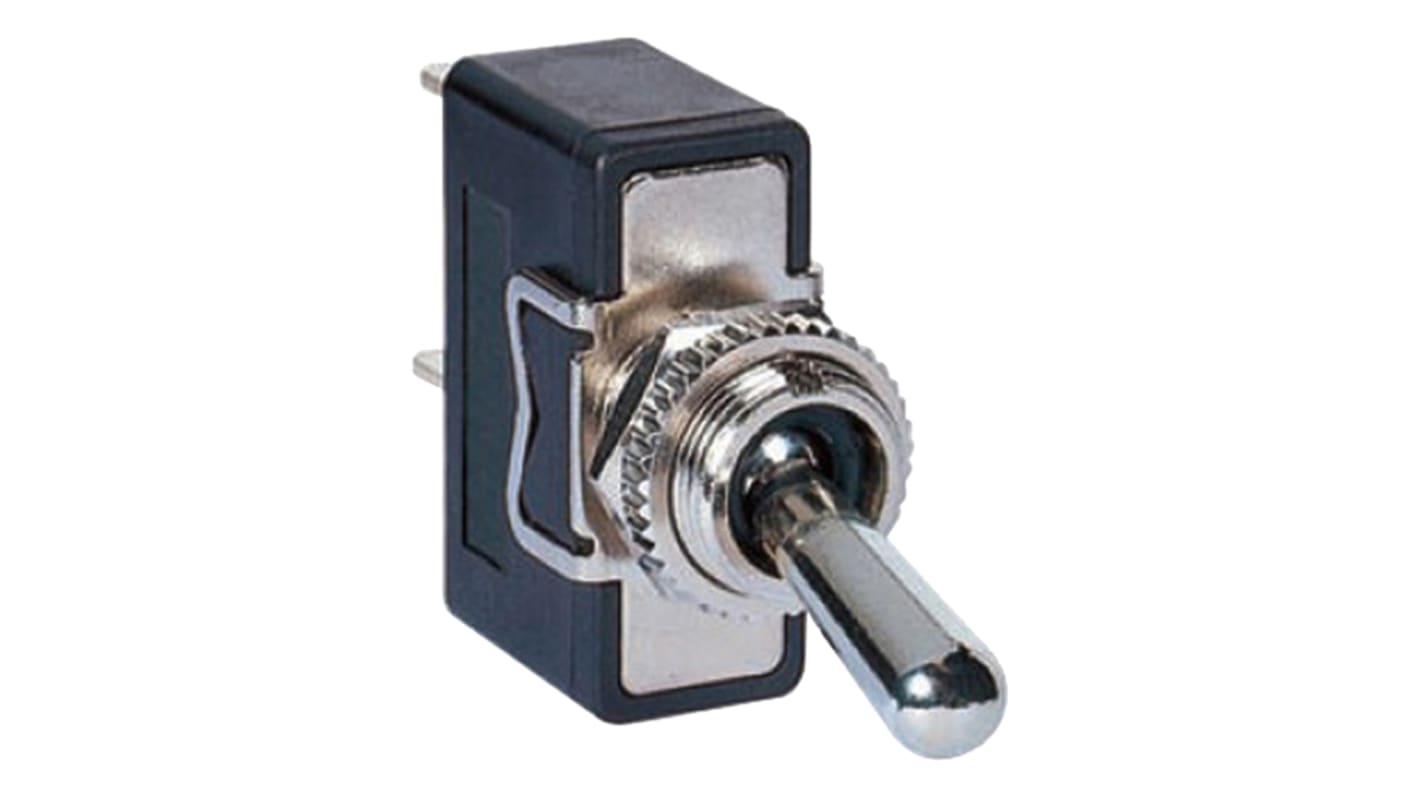

This image is representative of the product range

394 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$11.66

(exc. GST)

$12.83

(inc. GST)

Units	Per unit
1 - 24	$11.66
25 - 49	$11.56
50 - 99	$11.34
100 - 249	$11.02
250 +	$10.72

RS Stock No.:: 861-0289
Mfr. Part No.:: C3910BAAAA
Brand:: Arcolectric (Bulgin) Ltd

Technical data sheets

3900 Metal Toggle Switches Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

Arcolectric 3900 Series 16A Metal Toggle Switches

The 3900 Series of toggle switches offer a wide variety of switching options in single and double pole versions with SPST, SPDT, DPST & DPDT switching and momentary and three position actions.
Nickel plated brass levers, with nickel plated nut and bush, fit industry standard 12.7mm diameter mounting holes and provide secure, durable operation.
These switches find many applications where conventional lever operation is needed including; control panels, automation systems, test equipment, industrial equipment and even agricultural, marine and motoring accessories.

Mechanical life: 50000 operations
Full international approvals up to 16(4)A @ 250Vac, T85 (ENEC) and 20A @ 125/277Vdc (UL & CSA).

Specifications

Attribute	Value
Contact Configuration	SPDT
Switch Operation	On-On
Contact Current Rating	16A
Mounting Type	Panel Mount
Terminal Type	Tab
IP Rating	IP67
Panel Cut Out Diameter	12.7mm
Actuator Length	17.5mm
Actuator Material	Metal
Panel Cut Out Size	12.7mm
