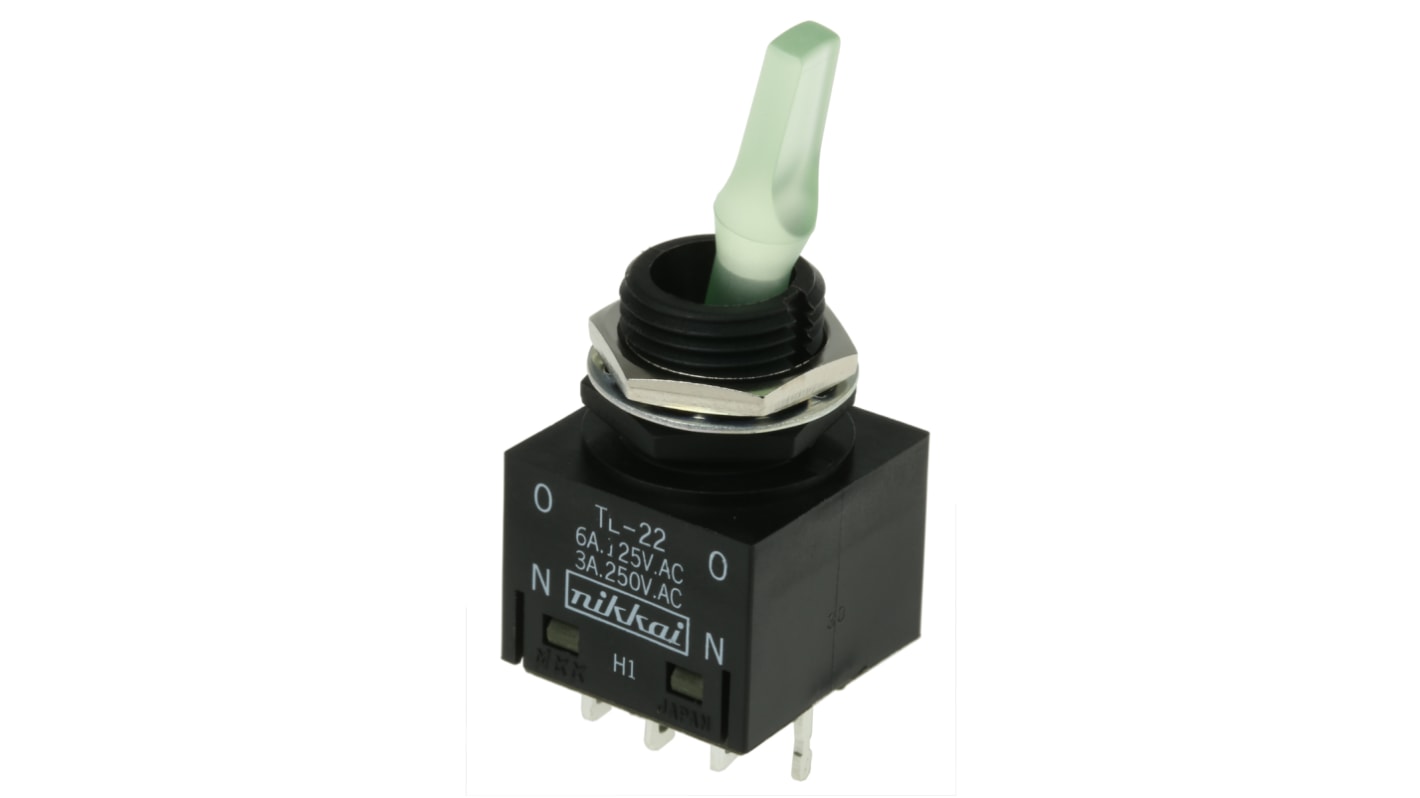

    NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal

    View all Toggle Switches
    Discontinued product

    Alternatives

    This product is not currently available. Here are our alternative recommendations.

    presentation
    NKK Switches Toggle Switch, Panel Mount, Latching, DPDT, Solder Terminal
    RS Stock No.
    453-7922

    Each

    $18.37

    (exc. GST)

    $20.21

    (inc. GST)

    presentation
    NKK Switches Toggle Switch, Panel Mount, Latching, DPDT, Solder Terminal
    RS Stock No.
    453-7938

    Each

    $15.71

    (exc. GST)

    $17.28

    (inc. GST)

    presentation
    NKK Switches Toggle Switch, Panel Mount, On-On, DPDT, Solder Terminal
    RS Stock No.
    453-7972

    Each

    $29.80

    (exc. GST)

    $32.78

    (inc. GST)

    RS Stock No.:
    453-7900
    Mfr. Part No.:
    TL-22H1DKMMS1
    Brand:
    NKK Switches
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    NKK Switches

    Contact Configuration

    Double Pole Double Throw (DPDT)

    Switch Operation

    On-On

    Contact Current Rating

    3 A @ 250 V ac

    Mounting Type

    Panel Mount

    Terminal Type

    Solder

    IP Rating

    IP65

    Illuminated

    Yes

    Panel Cut Out Diameter

    12.5mm

    Actuator Length

    17.5mm

    Actuator Material

    PC

    Contact Resistance

    10mΩ

    Contact Material

    Silver Plated Silver Copper or Gold Plated Copper (Stationary); Gold Plated Silver Alloy or Copper (Movable)

    Panel Cut Out Size

    12.5mm

    Maximum Operating Temperature

    +55°C

    Mechanical Life

    50000Operations

    Minimum Operating Temperature

    -10°C

    Operating Temperature Range

    -10 → +55°C
