C & K Toggle Switch, PCB Mount, On-On, SPDT, Through Hole Terminal, 20 V dc, 20 V ac
- RS Stock No.:
- 154-6157
- Mfr. Part No.:
- ET01MD1ABE
- Brand:
- C & K

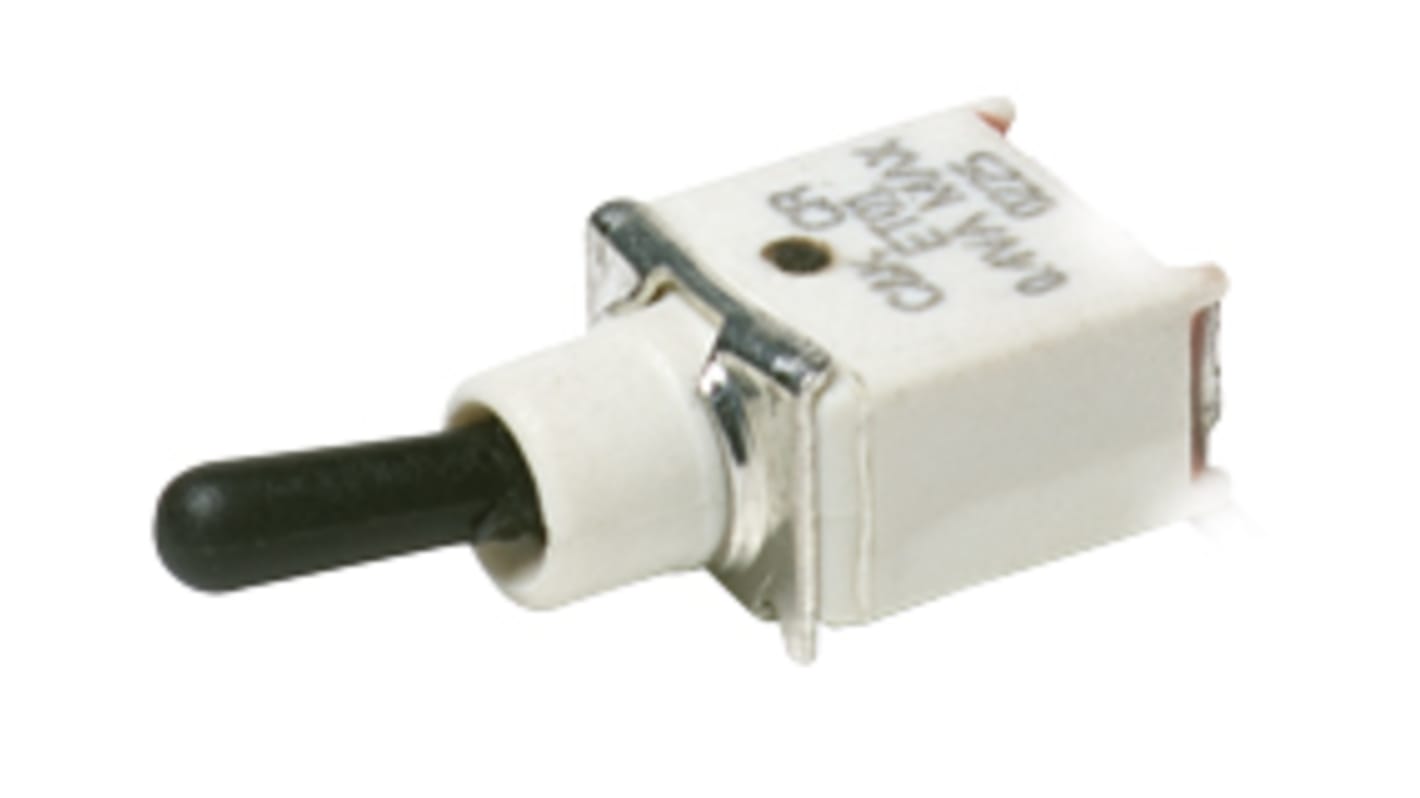

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$14.18
(exc. GST)
$15.60
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 82 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 12 | $14.18 |
| 13 - 24 | $13.83 |
| 25 + | $13.63 |
*price indicative
- RS Stock No.:
- 154-6157
- Mfr. Part No.:
- ET01MD1ABE
- Brand:
- C & K
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPDT | |
| Product Type | Toggle Switch | |
| Switch Operation | On-On | |
| Mount Type | PCB | |
| Terminal Type | Through Hole | |
| IP Rating | IP57 | |
| Illuminated | No | |
| Minimum Operating Temperature | -30°C | |
| Contact AC Voltage | 20V ac | |
| Actuator Length | 6.1mm | |
| Contact DC Voltage | 20V dc | |
| Actuator Material | Brass | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Series | ET | |
| Mechanical Life | 60000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPDT | ||
Product Type Toggle Switch | ||
Switch Operation On-On | ||
Mount Type PCB | ||
Terminal Type Through Hole | ||
IP Rating IP57 | ||
Illuminated No | ||
Minimum Operating Temperature -30°C | ||
Contact AC Voltage 20V ac | ||
Actuator Length 6.1mm | ||
Contact DC Voltage 20V dc | ||
Actuator Material Brass | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Series ET | ||
Mechanical Life 60000Cycles | ||
Sealed against solder and cleaning process contaminants
Compact size and small footprint save PCB space
ESD protection available
Hand-held telecommunications
Instrumentation
Medical equipment
