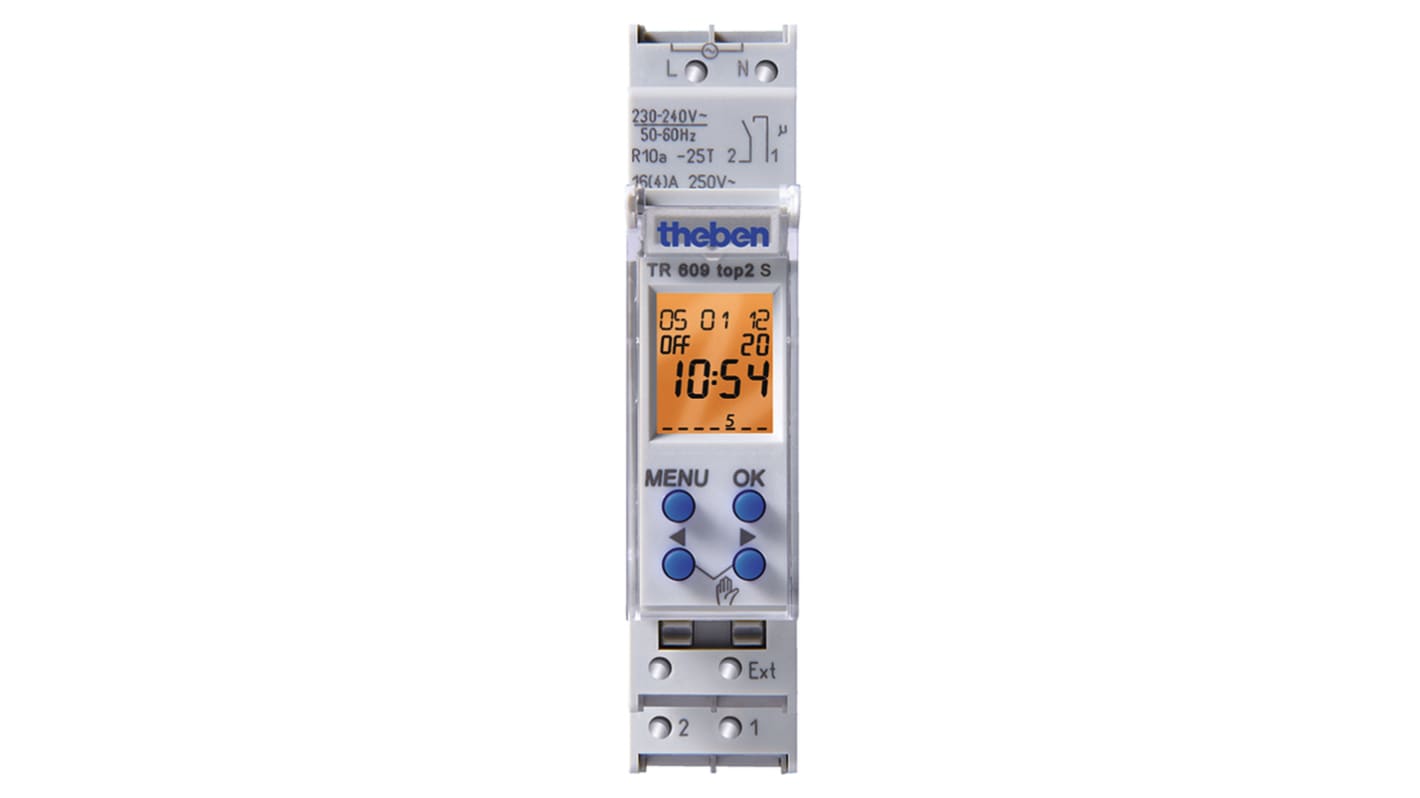

Theben Digital TR609 Top DIN Rail Time Switch, 1-Channel 240 V ac
- RS Stock No.:
- 138-5673
- Mfr. Part No.:
- TR609 top 2S
- Brand:
- Theben
Subtotal (1 unit)*
$165.18
(exc. GST)
$181.70
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 14 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
- Plus 7 unit(s) shipping from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $165.18 |
*price indicative
- RS Stock No.:
- 138-5673
- Mfr. Part No.:
- TR609 top 2S
- Brand:
- Theben
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Theben | |
| Product Type | DIN Rail Time Switch | |
| Sub Type | Digital | |
| Number of Channels | 1 | |
| Units Measured | Seconds, Hours, Minutes, Days | |
| Segment Length | 1s | |
| Terminal Type | DuoFix Spring | |
| Contact Configuration | 1 NO | |
| Maximum Supply Voltage | 240V ac | |
| Memory Spaces | 84 | |
| Battery Life | 10year | |
| Standards/Approvals | VDE, RoHS, EN 60 730-1 | |
| Series | TR609 Top | |
| Height | 85.5mm | |
| Depth | 65.5mm | |
| Select all | ||
|---|---|---|
Brand Theben | ||
Product Type DIN Rail Time Switch | ||
Sub Type Digital | ||
Number of Channels 1 | ||
Units Measured Seconds, Hours, Minutes, Days | ||
Segment Length 1s | ||
Terminal Type DuoFix Spring | ||
Contact Configuration 1 NO | ||
Maximum Supply Voltage 240V ac | ||
Memory Spaces 84 | ||
Battery Life 10year | ||
Standards/Approvals VDE, RoHS, EN 60 730-1 | ||
Series TR609 Top | ||
Height 85.5mm | ||
Depth 65.5mm | ||
- COO (Country of Origin):
- DE
TR 609 Top 2- Digital Time Switch
TR609 Top 2 digital time switch with weekly programming.
Features and Benefits
1 Channel
84 Memory locations
External input
- Connectable sensors (external selector switch, sequence timer)
- Connectable switches (On or Off permanent switching)
Pulse program
Cycle program
Timer countdown
2 Random programs
DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Button for releasing plug-in connection
Text-orientated user guidance in display
- Preset date and time
- Fully operable without mains connection
Interface for OBELISK top2 memory card (PC programming)
- 2 Insertable switching program
- Copying and storing programs
10-year power reserve (lithium battery)
On-Off switching times
Switching preselection
Permanent switching on/off
Integrated operating hour counter
- Reset option
- Service function for monitoring maintenance intervals
Holiday program
PIN coding
Automatic summer/winter time changeover
- Can be deactivated
- Data rule options are already stored for Europe, USE and other countries
- Own data rule options or changeover around set dates are available
