Hirschmann Test & Measurement, 16A, 30 V ac, 60V dc, Red, 1m Lead Length

RS Stock No.:: 508-0607
Mfr. Part No.:: 973646101
Brand:: Hirschmann Test & Measurement

Hirschmann Test & Measurement, 16A, 30 V ac, 60V dc, Red, 1m Lead Length

52 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$30.24

(exc. GST)

$33.26

(inc. GST)

Units	Per unit
1 - 15	$30.24
16 - 50	$29.56
51 +	$28.24

RS Stock No.:: 508-0607
Mfr. Part No.:: 973646101
Brand:: Hirschmann Test & Measurement

Technical data sheets

Measuring Leads, MLB 100/1 V.pdf

Legislation and Compliance

Product Details

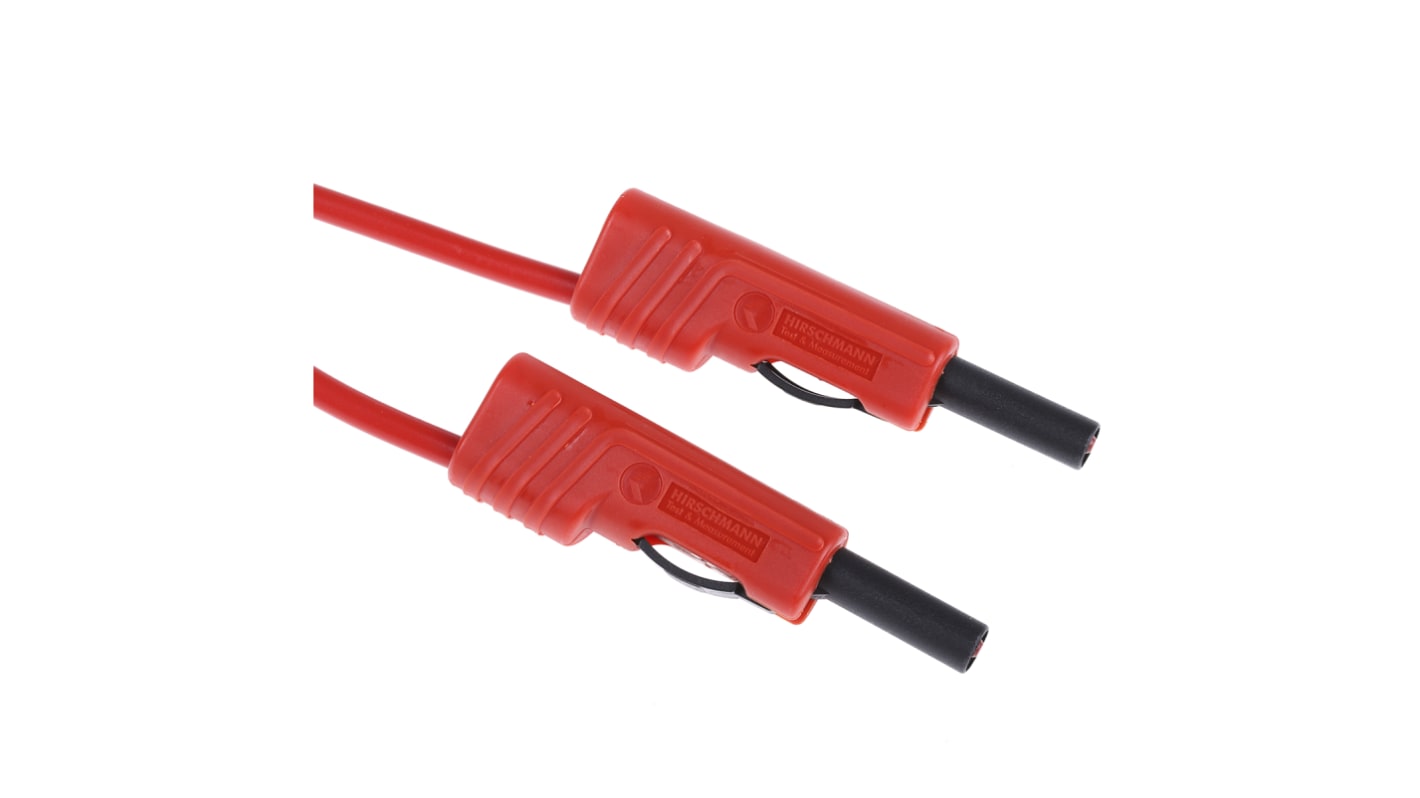

MLB test lead

From Hirschmann Test & Measurement , this MLB touch-proof test lead features a plug with a sliding insulating sleeve and a pin with a captive spring. Stackable for a tower connection configuration, this 4mm test lead is highly versatile.

Features and Benefits:
Voltage rating: 60 Vdc
Connecting plug: Ø 4 mm
Operating current (max.): 16 A
Contact resistance (max): 22 / 40 mΩ
PVC flexible cord: 1 mm²

Specifications

Attribute	Value
Lead Length	1m
Current Rating	16A
Colour	Red
Test Lead Type	4 mm Connector Test Leads
Voltage Rating	30 V ac, 60V dc
Connector A Gender	Male
Connector B Gender	Male
Connector A Shrouded	Yes
Connector B Shrouded	Yes
Connector A Orientation	Straight
Connector B Orientation	Straight
Contact Material	Beryllium Copper, Brass
Insulation Material	PA, PVC
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+70°C
Operating Temperature Range	-15 → +70 °C
