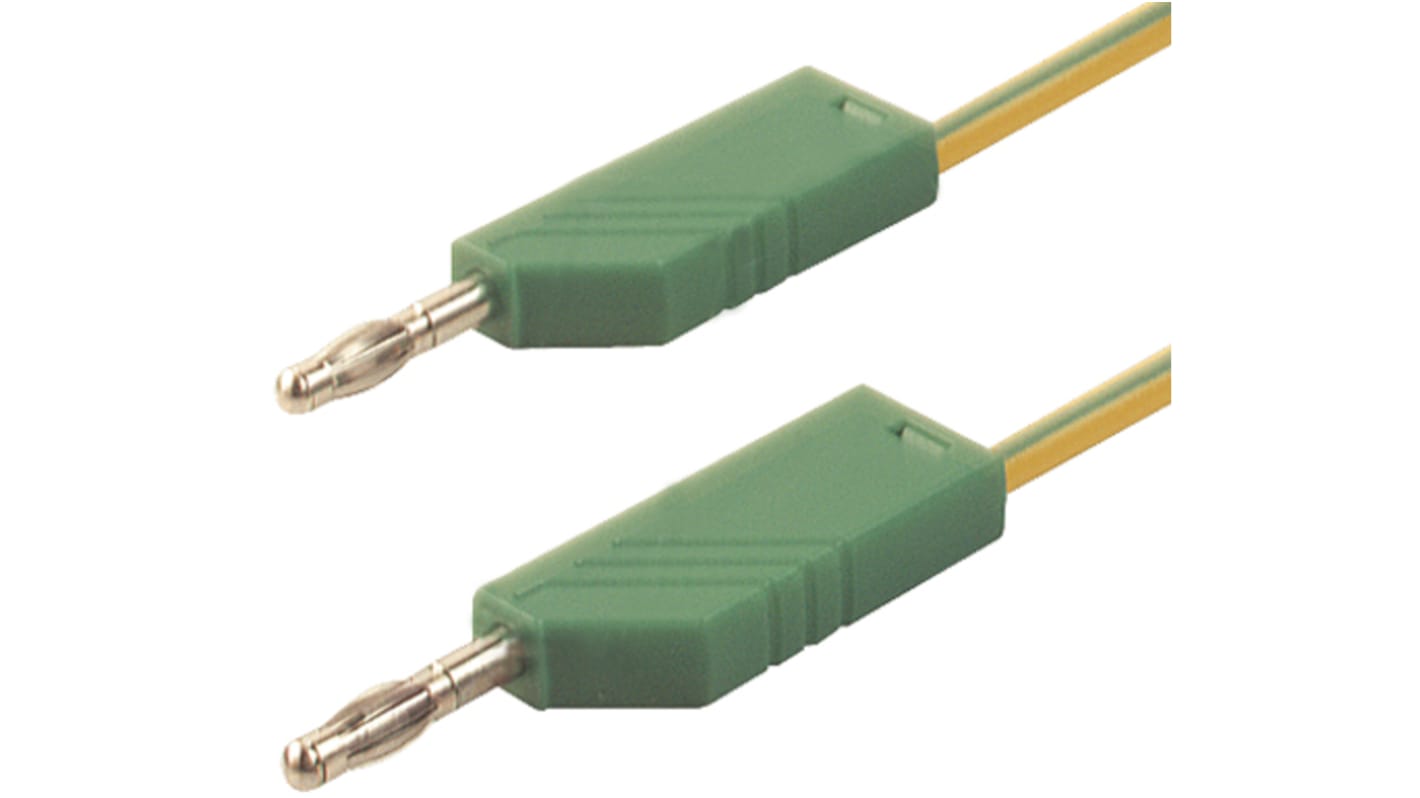

Hirschmann Test & Measurement Test lead, 32A, 60V dc, Green/Yellow, 1m Lead Length

RS Stock No.:: 343-3532
Mfr. Part No.:: 934063188
Brand:: Hirschmann Test & Measurement

Hirschmann Test & Measurement Test lead, 32A, 60V dc, Green/Yellow, 1m Lead Length

97 In Global stock for delivery within 10 working day(s)

Price (ex. GST) Each

$27.74

(exc. GST)

$30.51

(inc. GST)

Units	Per unit
1 - 9	$27.74
10 - 24	$26.76
25 +	$25.66

RS Stock No.:: 343-3532
Mfr. Part No.:: 934063188
Brand:: Hirschmann Test & Measurement

Technical data sheets

Hirschmann Measuring Leads MLN/MLS Series Data Sheet

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

MLN 2.5 Stackable 4mm Measuring Leads

Hirschmann Test and Measurement MLN 2.5, 4mm measuring leads have at either end a 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. These measuring and test leads have a nickel or gold plated, copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.

Rated voltage 30 VAC / 60 VDC
Rated current 32A
CAT I
PVC Insulated
Wire stranding 320 x 0.10mm
Contact resistance 12mΩ (100cm) 20mΩ (200cm)

Note

All manufacturing part numbers ending in 7** are gold plated variants.

Specifications

Attribute	Value
Lead Length	1m
Current Rating	32A
Colour	Green/Yellow
Voltage Rating	60V dc
Connector A Gender	Male
Connector B Gender	Male
Connector A Orientation	Straight
Connector B Orientation	Straight
Contact Material	Beryllium Copper, Brass
Insulation Material	PVC
Minimum Operating Temperature	-15°C
Operating Temperature Range	-15 → +70 °C
Maximum Operating Temperature	+70°C
