- RS Stock No.:
- 239-8955
- Mfr. Part No.:
- 973647103
- Brand:
- Hirschmann Test & Measurement
33 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$20.85
(exc. GST)
$22.93
(inc. GST)
Units | Per unit |
1 - 15 | $20.85 |
16 - 50 | $20.10 |
51 + | $19.18 |
- RS Stock No.:
- 239-8955
- Mfr. Part No.:
- 973647103
- Brand:
- Hirschmann Test & Measurement
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

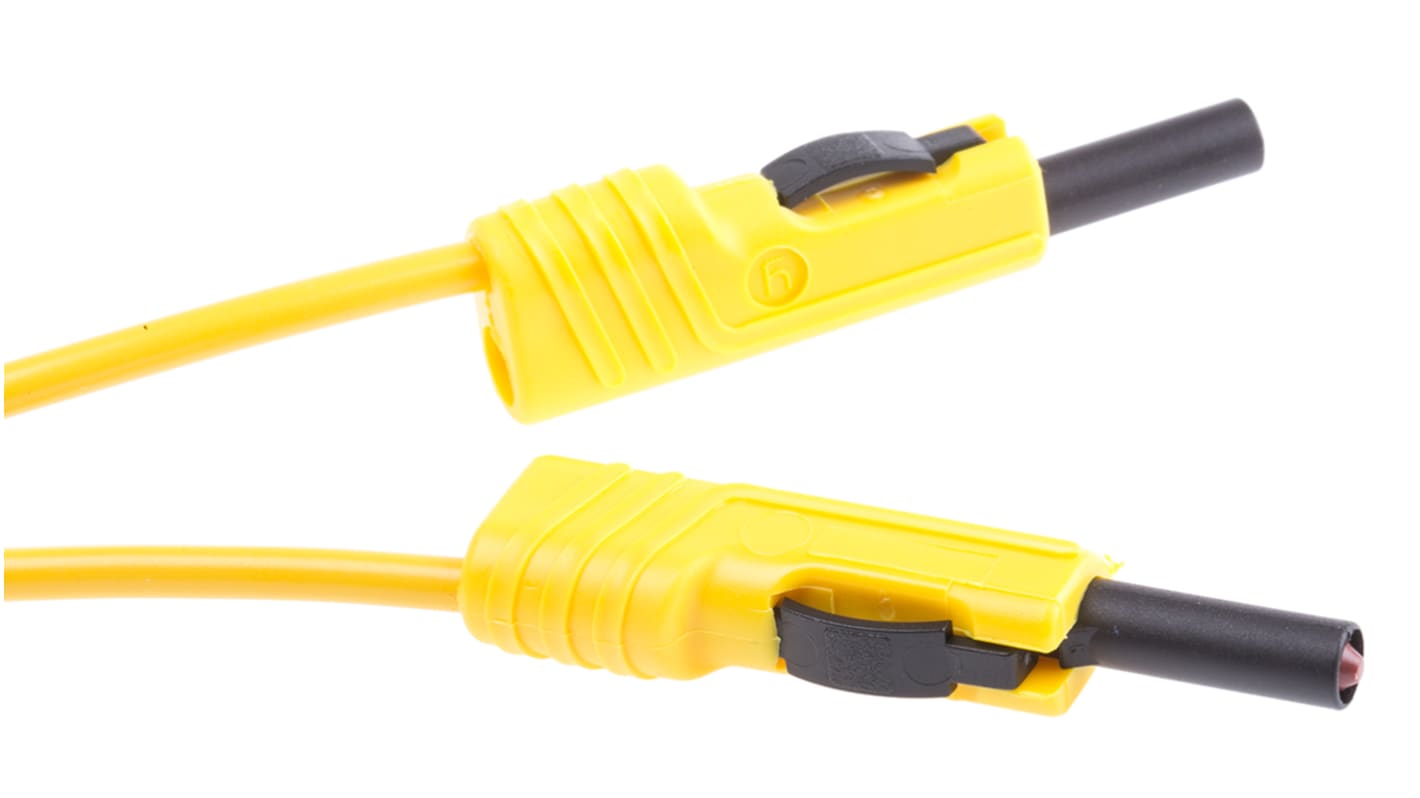

MLB test lead
From Hirschmann Test & Measurement , this MLB touch-proof test lead features a plug with a sliding insulating sleeve and a pin with a captive spring. Stackable for a tower connection configuration, this 4mm test lead is highly versatile.
Features and Benefits:
Voltage rating: 60 Vdc
Connecting plug: Ø 4 mm
Operating current (max.): 16 A
Contact resistance (max): 22 / 40 mΩ
PVC flexible cord: 1 mm²
Voltage rating: 60 Vdc
Connecting plug: Ø 4 mm
Operating current (max.): 16 A
Contact resistance (max): 22 / 40 mΩ
PVC flexible cord: 1 mm²
Specifications
Attribute | Value |
---|---|
Lead Length | 2m |
Current Rating | 16A |
Test Lead Type | 4 mm Connector Test Leads |
Colour | Yellow |
Voltage Rating | 60V dc |
Connector A Gender | Male |
Connector B Gender | Male |
Connector A Orientation | Straight |
Connector B Orientation | Straight |
Contact Material | Beryllium Copper |
Insulation Material | PVC |
Operating Temperature Range | -15 → +70 °C |
Minimum Operating Temperature | -15°C |
Maximum Operating Temperature | +70°C |
