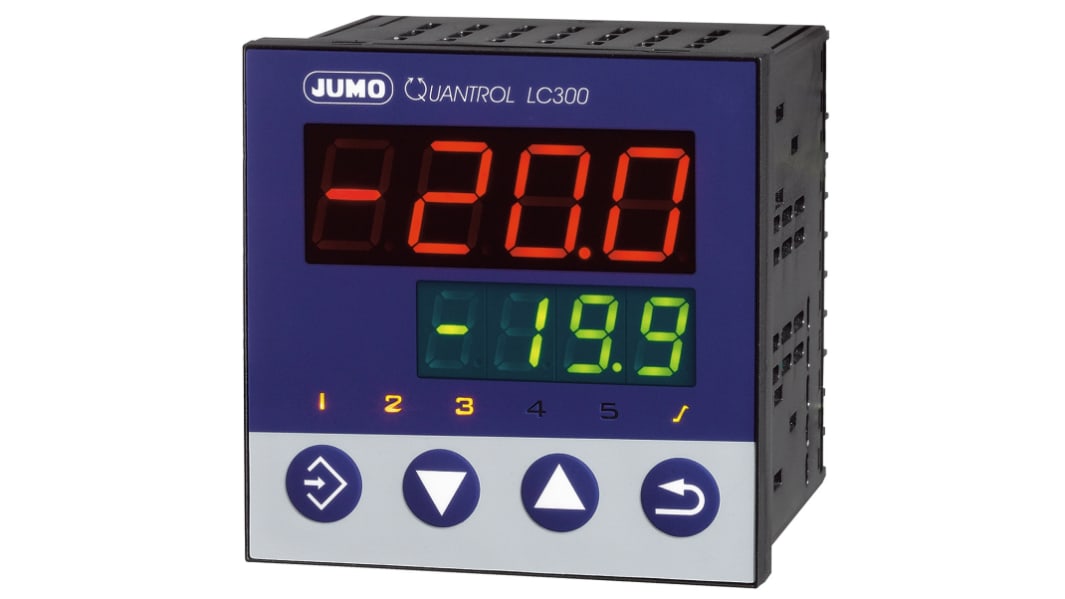

Jumo QUANTROL PID Temperature Controller, 96 x 96mm, 2 Output Analogue, 110 → 240 V ac Supply Voltage

RS Stock No.:: 815-8817
Mfr. Part No.:: 702034/8-3100-23
Brand:: Jumo

Jumo QUANTROL PID Temperature Controller, 96 x 96mm, 2 Output Analogue, 110 → 240 V ac Supply Voltage

1 In Global stock for delivery within 10 working day(s)

Added

Price (ex. GST) Each

$712.37

(exc. GST)

$783.61

(inc. GST)

Units	Per unit
1 +	$712.37

RS Stock No.:: 815-8817
Mfr. Part No.:: 702034/8-3100-23
Brand:: Jumo

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: DE

Product Details

Quantrol LC-Series - PID Controller

The Jumo Quantrol is a compact, easy to use, and self-optimizing controller series.
The controller is used for two-state and three-state control applications as well as for the control of regulating valves or SCR power controllers via a continuous controller output.
The universal analog input is for RTD temperature probes, thermocouples, or current / voltage signals and can be programmed by the user.

3 formats: 48x48mm, 48x96mm and 96x96mm
Two seven-segment LED displays (red/green)
The values can be displayed in °C or °F
LED status indicator for the output
Two-state/three-state and continuous controller (depending on version)
Sensor monitoring
Self-optimization (autotuning) for exact PID control
Manual/automatic mode
Configurable limit value monitoring (alarms)
Setpoint changeover
Level inhibit and key lock
RS485 interface (Modbus RTU)
Ramp and timer function
Firing curve for pottery kilns
Push-in controller insert
Setup interface (USB Mini-B)

Specifications

Attribute	Value
Output Type	Analogue
Supply Voltage	110 → 240 V ac
Size	96 x 96mm
Number of Outputs	2
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+55°C
Communication Module Available	No
Display Type	7-Segment LED Display
IP Rating	IP65
Additional Functionality	ON/OFF, PID
Series	QUANTROL
Range	Quantrol LC300
Panel Depth	80mm
Display Colour	Red/Green
