    West Instruments P8100+ DIN Rail PID Temperature Controller, 48 x 96mm 1 Input, 3 Output Relay, SSR, 100 → 240 V

    RS Stock No.:
    123-8248
    Mfr. Part No.:
    P8100-2-2-1-1-0-0-2-0
    Manufacturer:
    West Instruments
    West Instruments
    View all Temperature Controllers
    7 In Global stock for delivery within 10 working day(s)
    Add to Basket
    units

    Added

    Price (ex. GST) Each

    $1,197.99

    (exc. GST)

    $1,317.79

    (inc. GST)

    unitsPer unit
    1 +$1,197.99
    RS Stock No.:
    123-8248
    Mfr. Part No.:
    P8100-2-2-1-1-0-0-2-0
    Manufacturer:
    West Instruments
    COO (Country of Origin):
    GB

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    GB

    Product Details

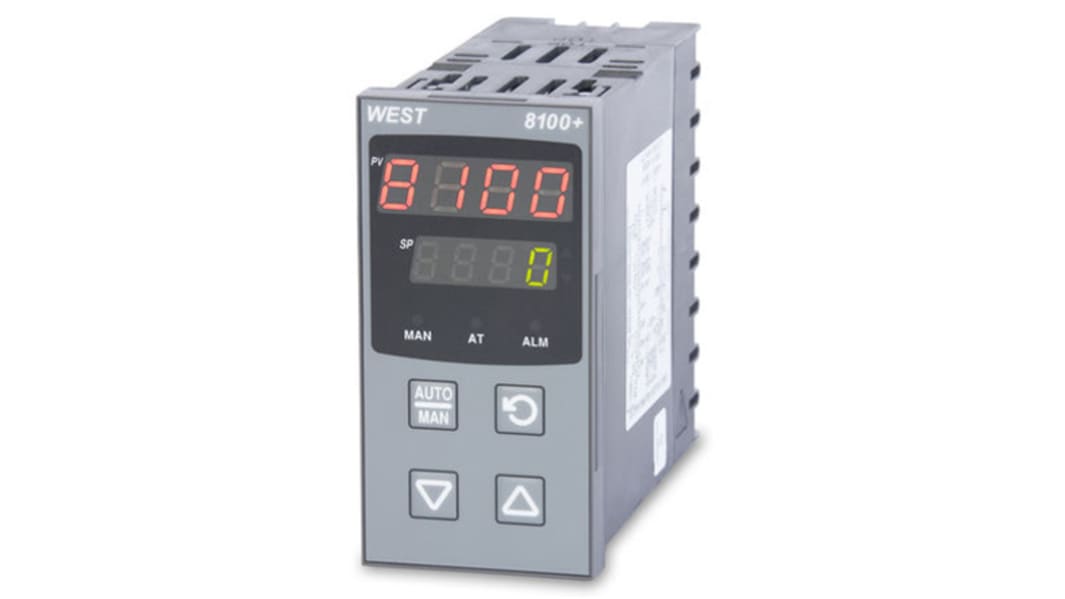

    West Instruments Temperature Controller


    The West Instruments P8100 series temperature controller has a supply voltage rating ranging from 100VAC to 240VAC. This controller has a width of 48mm and a height of 96mm. It has thermocouple input, 2 DC for SSR output and a relay output. It is designed to incorporate improvements, save time (as much as 50% on product set-up), reduce inventory stock and virtually eliminates the likelihood of operator errors. It has versatile features and user-friendly functionalities. These features include remote setpoint inputs, digital inputs, plug-in output modules, a customisable operator/HMI menu, jumper-less and auto-hardware configuration. The 8100 plus provides a product that surpasses competitive offerings in terms of ease of use, delivery and value for money.

    Features and Benefits


    Red upper and green lower display colour
    Adjustable hysteresis
    Auto-hardware recognition
    Backward compatible panel cut-out, housing and terminal wiring capability
    Dual set points with optional remote selection
    Expanded user-selectable operator modes
    Faster communication speeds and more security options
    Improved easy to use HMI
    Improved windows PC configuration software
    Jumper-less input configuration
    Optional 10V SSR driver
    Optional analogue remote set point input
    Plug in output module allows installing just the functions needed
    Process and loop alarms
    User-selectable plug-and-play output cards

    Certifications


    CE certified
    IP20 rated
    IP66 rated
    UL listed


    Specifications

    AttributeValue
    Output TypeRelay, SSR
    Supply Voltage100 → 240 V ac
    Size48 x 96mm
    Number of Inputs1
    Number of Outputs3
    Minimum Operating Temperature0°C
    Maximum Operating Temperature+55°C
    Display TypeDual 4 Digit LED
    IP RatingIP20, IP66
    SeriesP8100+
    Mounting TypeDIN Rail
    Input TypeThermocouple
    Panel Depth100mm
    Display ColourGreen, Red
    Termination TypeScrew
