XP Power DC/DC Switching Regulator, 1.8V dc Output Voltage, 2 A Output Current, 1 Outputs
- RS Stock No.:
- 212-4673
- Mfr. Part No.:
- TR2024S1V8
- Brand:
- XP Power

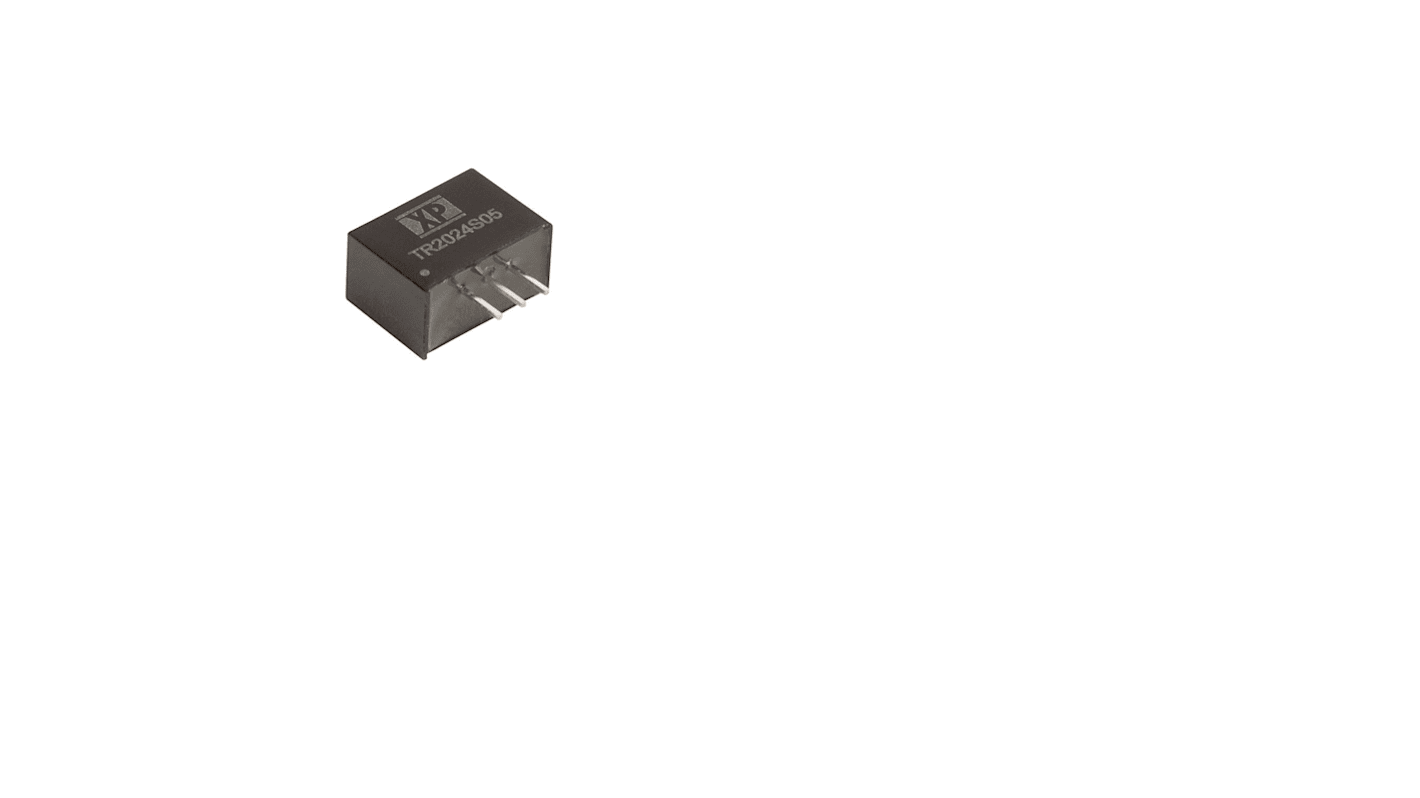

This image is representative of the product range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 212-4673
- Mfr. Part No.:
- TR2024S1V8
- Brand:
- XP Power
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Product Type | DC/DC Switching Regulator | |
| Output Voltage 1 | 1.8V dc | |
| Output Current | 2A | |
| Number of Outputs | 1 | |
| Efficiency | 96% | |
| Ripple and Noise | 75mV Pk-Pk | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 100°C | |
| Series | TR20 | |
| Number of Pins | 3 | |
| Line Regulation | ±0.5 % | |
| Package Type | SIP-3 | |
| Standards/Approvals | EN 55032 | |
| Width | 7.5mm | |
| Depth | 10.1mm | |
| Length | 14mm | |
| Weight | 0.005lb | |
| Maximum Input Voltage | 36V dc | |
| Load Regulation | ± 1.5 % | |
| MTBF | 2500000h | |
| Minimum Input Voltage | 4.6V | |
| Select all | ||
|---|---|---|
Brand XP Power | ||
Product Type DC/DC Switching Regulator | ||
Output Voltage 1 1.8V dc | ||
Output Current 2A | ||
Number of Outputs 1 | ||
Efficiency 96% | ||
Ripple and Noise 75mV Pk-Pk | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 100°C | ||
Series TR20 | ||
Number of Pins 3 | ||
Line Regulation ±0.5 % | ||
Package Type SIP-3 | ||
Standards/Approvals EN 55032 | ||
Width 7.5mm | ||
Depth 10.1mm | ||
Length 14mm | ||
Weight 0.005lb | ||
Maximum Input Voltage 36V dc | ||
Load Regulation ± 1.5 % | ||
MTBF 2500000h | ||
Minimum Input Voltage 4.6V | ||
- COO (Country of Origin):
- TW
The XP power TR20 provides a compact efficient switching regulator solution operating from a wide range DC input. Output voltages start from 1.2V and the TR20 consumes just 1mA when idle.
Low 0.3mA Standby Input Current
-40°C to +85°C Operation
MTBF >2MHrs
3 Year Warranty
