Schneider Electric Surge Protector, 65 kA, 1.5 kV

RS Stock No.:: 212-0148
Mfr. Part No.:: A9L65501
Brand:: Schneider Electric

Schneider Electric Surge Protector, 65 kA, 1.5 kV

Subtotal (1 unit)*

$266.51

(exc. GST)

$293.16

(inc. GST)

FREE delivery for orders over $80.00 ex GST

In Stock

4 unit(s) ready to ship from another location
Plus 2 unit(s) shipping from 23 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	$266.51

*price indicative

RS Stock No.:: 212-0148
Mfr. Part No.:: A9L65501
Brand:: Schneider Electric

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Product Type	Surge Protector
	Voltage Protection Rating	1.5kV
	Maximum Surge Current	65kA
	Series	Acti9 Parafoudre
	Range	Acti9
	Impulse Discharge Current	20kA
	IP Rating	IP20, IP40
	Depth	69mm
	Standards/Approvals	IEC 61643-11:2011, EN 61643-11:2012
	Length	85mm
	Width	36mm
	Maximum Operating Temperature	60°C
	Minimum Operating Temperature	-25°C

	Select all
	Brand Schneider Electric
	Product Type Surge Protector
	Voltage Protection Rating 1.5kV
	Maximum Surge Current 65kA
	Series Acti9 Parafoudre
	Range Acti9
	Impulse Discharge Current 20kA
	IP Rating IP20, IP40
	Depth 69mm
	Standards/Approvals IEC 61643-11:2011, EN 61643-11:2012
	Length 85mm
	Width 36mm
	Maximum Operating Temperature 60°C
	Minimum Operating Temperature -25°C

COO (Country of Origin):: CN

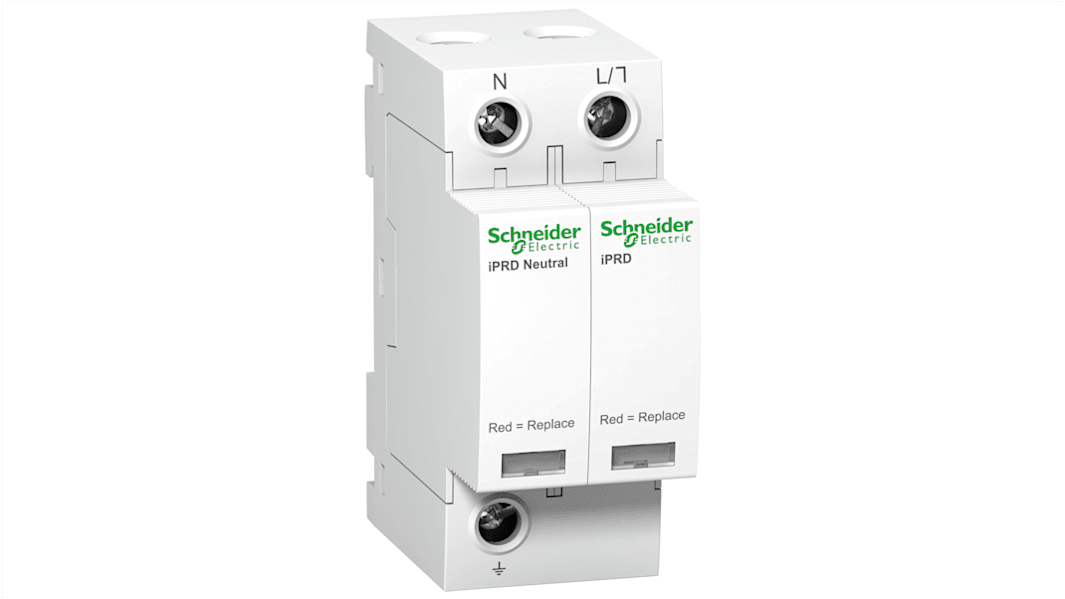

Schneider Electric IPRD65r Series Surge Arrester, 65kA Maximum Surge Current, -25 to +60°C Operating Temperature Range - A9L65501

This surge arrester delivers effective surge protection for electrical distribution networks, playing a crucial role in safeguarding equipment from voltage spikes and ensuring reliability in vital applications. It reflects Schneider Electric's dedication to sustainability, making it suitable for users who value both efficiency and environmental stewardship.

Features & Benefits

• Maximum surge capacity of 65 kA for enhanced protection

• Impulse discharge current rated at 20 kA improves capability

• Compatible with 1P + N configurations for flexible installations

• Clip-on design facilitates easy mounting on DIN rails

• Remote signalling feature allows for improved system monitoring

• Composed of eco-friendly materials, certified as Green Premium

Applications

• Suitable for electrical installations in residential and commercial environments

• Installed within distribution boards to ensure vital surge protection

• Works alongside circuit breakers to maximise electrical performance

• Ideal for automation equipment needing dependable surge protection

How does this safeguard against voltage spikes?

It diverts excess voltage away from sensitive components.

What type of installation is required for this device?

A clip-on mounting on a DIN rail is necessary for proper setup.

Can it be integrated into existing electrical systems?

Yes, it is compatible with standard distribution networks.

What maintenance is needed for optimal performance?

Regular visual inspections are advisable to maintain its condition.

Is there a recommended circuit breaker to use with this?

It works with various models, including the IC60N and NG125 series.
