Bourns, SDR0302, 0302 Unshielded Wirewound Surface Mount Inductor with a Ferrite DR Core, 4.7 μH ±20 % 1.35 A Idc Q:18
- RS Stock No.:
- 181-6281
- Mfr. Part No.:
- SDR0302-4R7ML
- Brand:
- Bourns

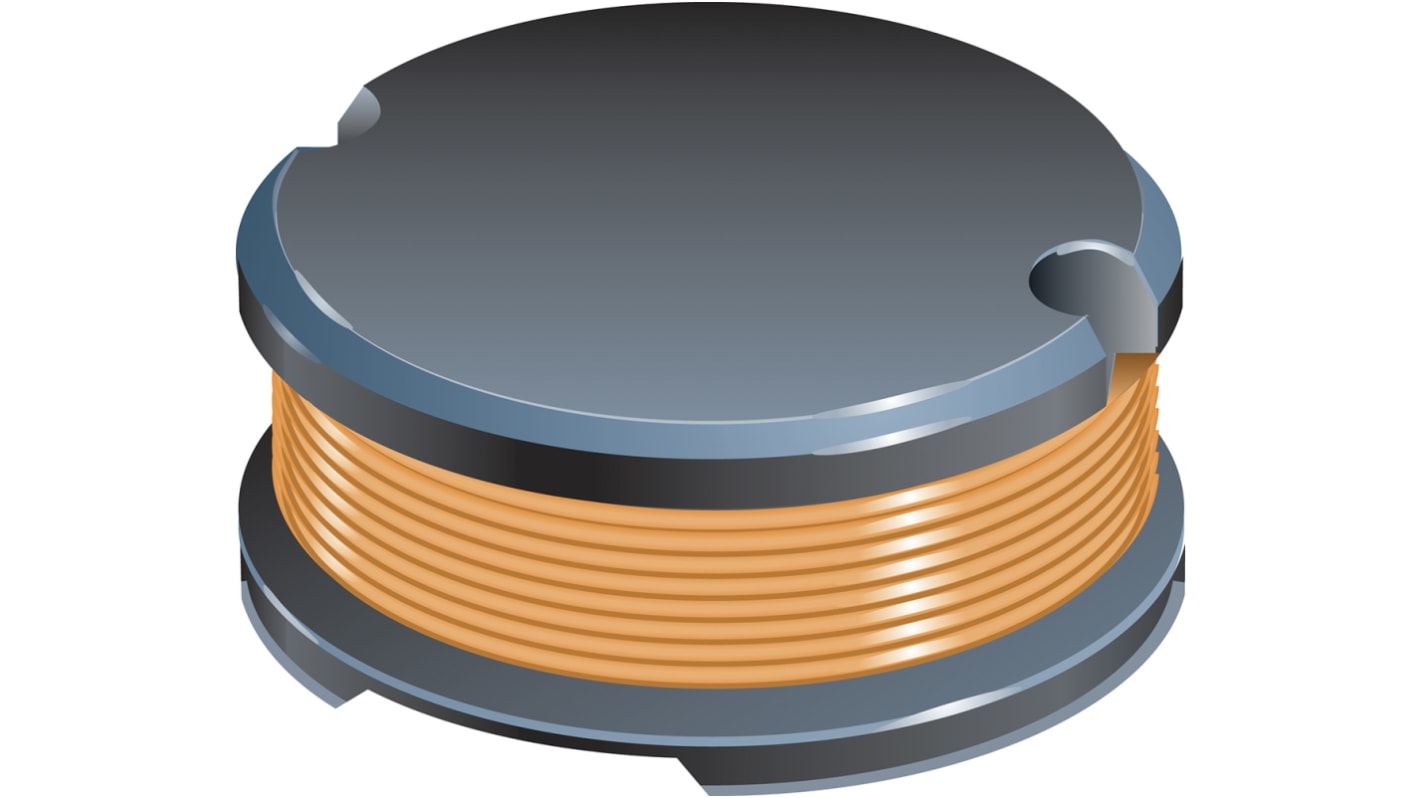

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 250 units)*
$117.00
(exc. GST)
$128.75
(inc. GST)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 250 - 750 | $0.468 | $117.00 |
| 1000 + | $0.436 | $109.00 |
*price indicative
- RS Stock No.:
- 181-6281
- Mfr. Part No.:
- SDR0302-4R7ML
- Brand:
- Bourns
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 4.7μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 1.35A | |
| Package/Case | 0302 | |
| Length | 3mm | |
| Packaging | Reel | |
| Automotive Standard | No | |
| Shielding | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 150mΩ | |
| Series | SDR0302 | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Depth | 2.8mm | |
| Core Material | Ferrite DR | |
| Standards/Approvals | RoHS | |
| Height | 2.5mm | |
| Diameter | 3mm | |
| Termination Style | Surface Mount | |
| Maximum Self Resonant Frequency | 45MHz | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Minimum Quality Factor | 18 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 4.7μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 1.35A | ||
Package/Case 0302 | ||
Length 3mm | ||
Packaging Reel | ||
Automotive Standard No | ||
Shielding No | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 150mΩ | ||
Series SDR0302 | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Depth 2.8mm | ||
Core Material Ferrite DR | ||
Standards/Approvals RoHS | ||
Height 2.5mm | ||
Diameter 3mm | ||
Termination Style Surface Mount | ||
Maximum Self Resonant Frequency 45MHz | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
Minimum Quality Factor 18 | ||
SDR0302 Series Wire Wound Chokes
Bourns SDR0302 Series SMD Power Inductors with a low profile of only 2.5mm. Applications include input/output of DC/DC converters and power supplies for: Portable communication equipment; Camcorders; LCD TVs; Car radios
