TDK, SPM-LR, 4015 Shielded Wirewound Surface Mount Inductor with a Metal Core, 1 μH ±20 % 4.7 A Idc
- RS Stock No.:
- 124-7005
- Mfr. Part No.:
- SPM4015T-1R0M-LR
- Brand:
- TDK

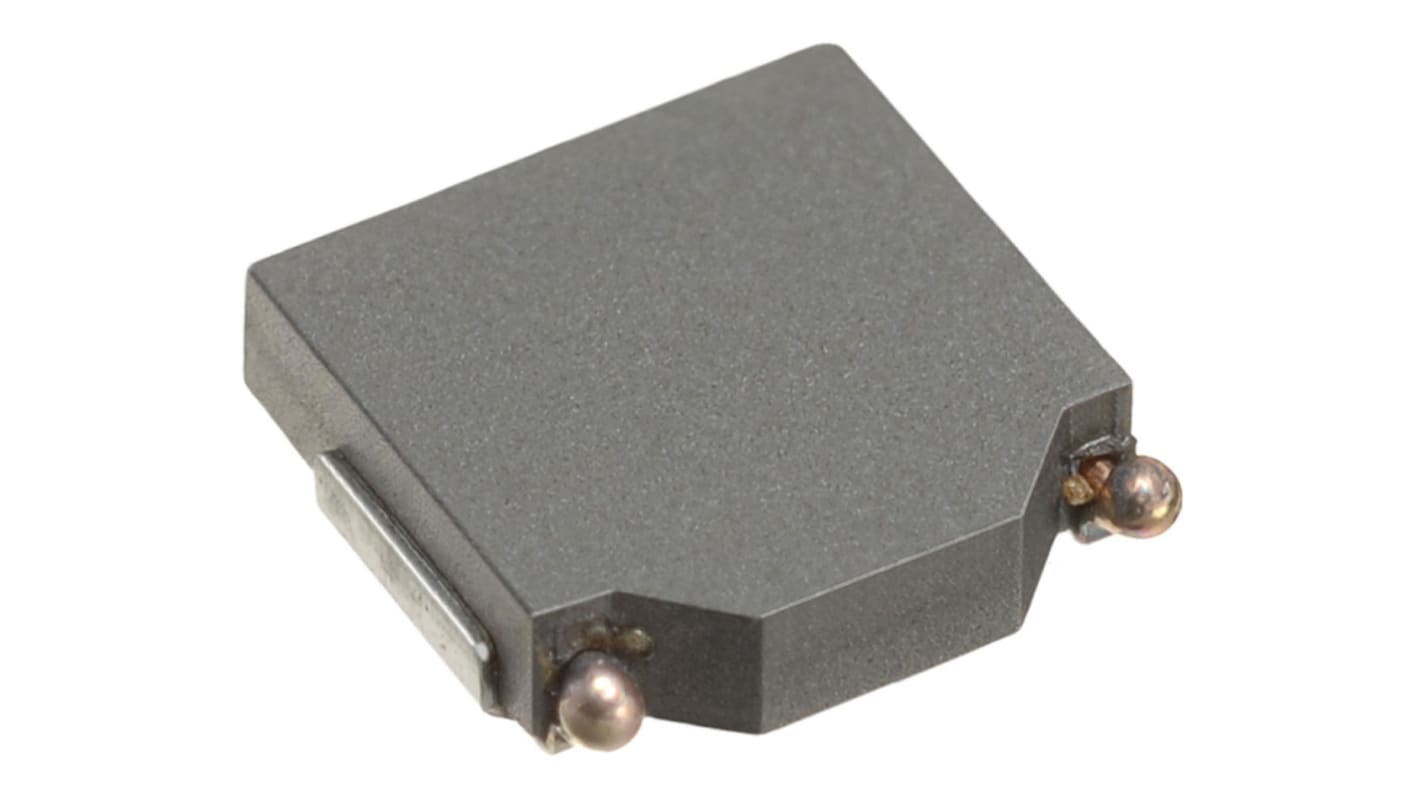

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 1000 units)*
$914.00
(exc. GST)
$1,005.00
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- Shipping from 21 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 - 1000 | $0.914 | $914.00 |
| 2000 - 3000 | $0.891 | $891.00 |
| 4000 + | $0.878 | $878.00 |
*price indicative
- RS Stock No.:
- 124-7005
- Mfr. Part No.:
- SPM4015T-1R0M-LR
- Brand:
- TDK
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Inductance | 1μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 4.7A | |
| Package/Case | 4015 | |
| Length | 4.4mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 33.6mΩ | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Series | SPM-LR | |
| Termination Style | Surface Mount | |
| Depth | 4.1mm | |
| Height | 1.5mm | |
| Standards/Approvals | RoHS | |
| Core Material | Metal | |
| Inductor Construction | Wirewound | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Inductance 1μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 4.7A | ||
Package/Case 4015 | ||
Length 4.4mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 33.6mΩ | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Series SPM-LR | ||
Termination Style Surface Mount | ||
Depth 4.1mm | ||
Height 1.5mm | ||
Standards/Approvals RoHS | ||
Core Material Metal | ||
Inductor Construction Wirewound | ||
Moulded Yes | ||
- COO (Country of Origin):
- CN
SPM4015 Series Magnetically Sheilded Wire Wound Inductor
Applications
TDK SPM4015 series wire wound surface mount inductors are a low profile product that are magnetically shielded for power circuits. These wire wound inductors achieve large current, low Rdc and compactness. These surface mount inductors have low inductance variance in high temperature environments with good superimposition characteristics. Metallic magnetic material used in the structure leads to a hum noise lower than with core adhesive coils.
Compact power supply modules
Tablet terminals
Note PCs
HDDs
Servers
