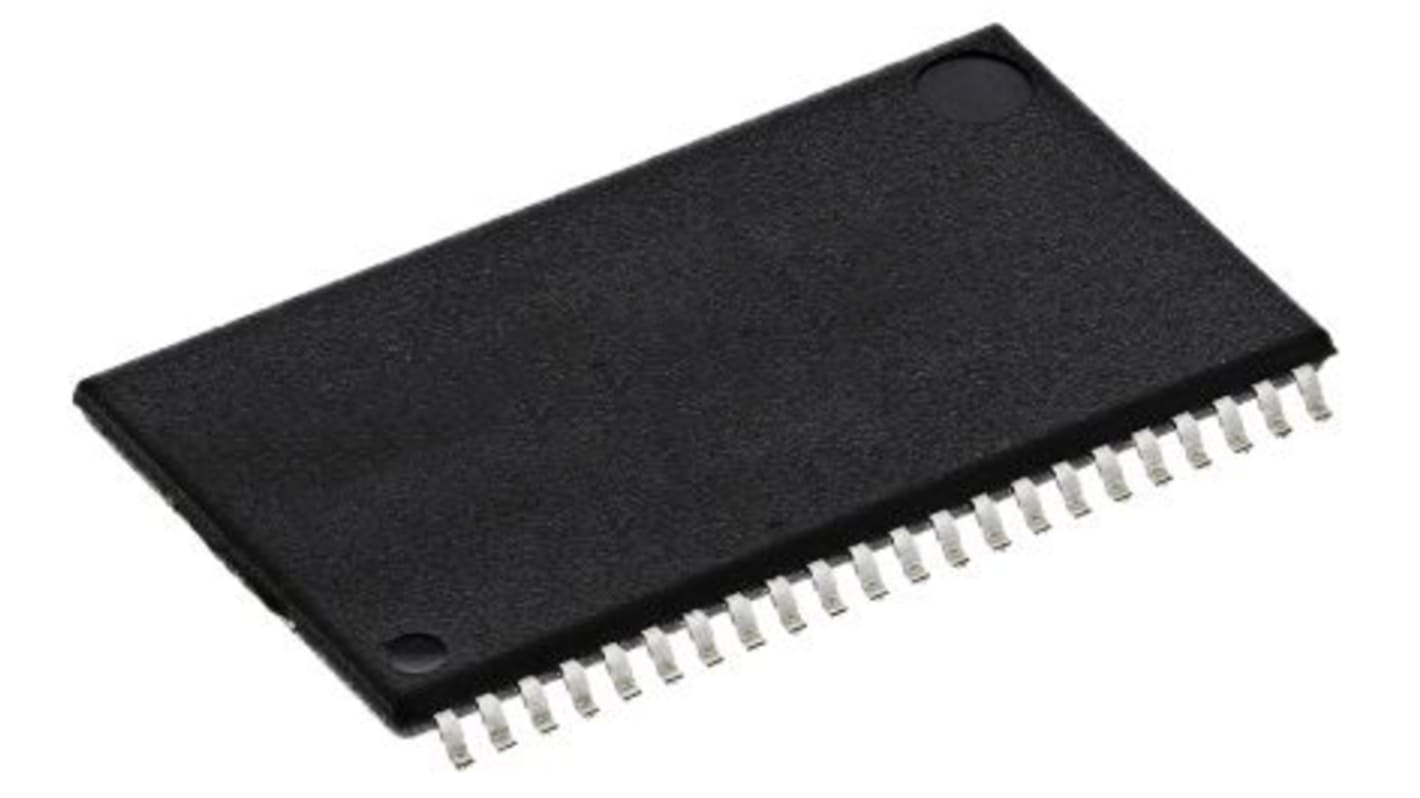

Renesas Electronics SRAM, RMLV0416EGSB-4S2#AA1- 4Mbit

RS Stock No.:: 250-0189
Mfr. Part No.:: RMLV0416EGSB-4S2#AA1
Brand:: Renesas Electronics

Renesas Electronics SRAM, RMLV0416EGSB-4S2#AA1- 4Mbit

On back order for despatch 29/04/2025, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each (In a Tray of 135)

$14.017

(exc. GST)

$15.419

(inc. GST)

Units	Per unit	Per Tray*
135 - 135	$14.017	$1,892.295
270 +	$13.564	$1,831.14
*price indicative

RS Stock No.:: 250-0189
Mfr. Part No.:: RMLV0416EGSB-4S2#AA1
Brand:: Renesas Electronics

Technical data sheets

Datasheet - RMLV0416EGSB-4S2#AA1

Legislation and Compliance

Product Details

4Mb Advanced LPSRAM (256-kword x 16-bit)

The RMLV0416E Series is a family of 4-Mbit static RAMs organized 262, 144-word x 16-bit, fabricated by Renesas’s high-performance Advanced LPSRAM technologies. The RMLV0416E Series has realized higher density, higher performance and low power consumption. The RMLV0416E Series offers low power standby power dissipation;therefore, it is suitable for battery backup systems. It is offered in 44-pin TSOP (II) or 48-ball fine pitch ball grid array.

Key features

Single 3V supply: 2.7V to 3.6V

Access time: 45ns (max.)

Current consumption: Standby: 0.3μA (typ.)

Equal access and cycle times

Common data input and output Three state output

Directly TTL compatible All inputs and outputs

Battery backup operation

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Memory Size	4Mbit
Organisation	256k x 16
Number of Words	256k
Number of Bits per Word	16bit
Maximum Random Access Time	45ns
Low Power	Yes
Mounting Type	Surface Mount
Package Type	TSOP
Pin Count	44
Dimensions	18.41 x 10.16 x 1mm
Maximum Operating Supply Voltage	3.6 V
Height	1mm
Width	10.16mm
Length	18.41mm
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Minimum Operating Supply Voltage	2.7 V
