Infineon SRAM, CY62148ELL-55SXIT- 4 MB
- RS Stock No.:
- 181-7591
- Mfr. Part No.:
- CY62148ELL-55SXIT
- Brand:
- Infineon

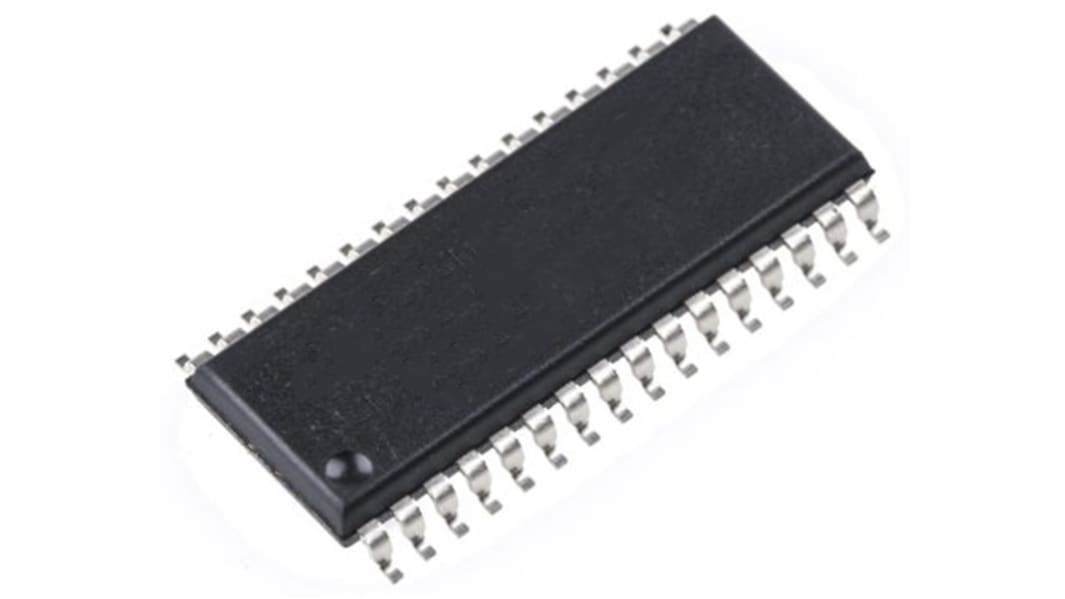

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
$34.73
(exc. GST)
$38.204
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Temporarily out of stock
- 24 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 248 | $17.365 | $34.73 |
| 250 - 498 | $17.195 | $34.39 |
| 500 + | $16.88 | $33.76 |
*price indicative
- RS Stock No.:
- 181-7591
- Mfr. Part No.:
- CY62148ELL-55SXIT
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | SRAM | |
| Memory Size | 4MB | |
| Organisation | 512 k x 8 Bit | |
| Number of Words | 512K | |
| Number of Bits per Word | 8 | |
| Maximum Random Access Time | 45ns | |
| Address Bus Width | 8bit | |
| Maximum Clock Frequency | 1MHz | |
| Timing Type | Asynchronous | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Mount Type | Surface | |
| Minimum Operating Temperature | -40°C | |
| Package Type | SOIC | |
| Maximum Operating Temperature | 85°C | |
| Pin Count | 32 | |
| Height | 2.81mm | |
| Width | 11.43 mm | |
| Length | 20.75mm | |
| Standards/Approvals | No | |
| Series | CY62148E | |
| Automotive Standard | No | |
| Supply Current | 20mA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type SRAM | ||
Memory Size 4MB | ||
Organisation 512 k x 8 Bit | ||
Number of Words 512K | ||
Number of Bits per Word 8 | ||
Maximum Random Access Time 45ns | ||
Address Bus Width 8bit | ||
Maximum Clock Frequency 1MHz | ||
Timing Type Asynchronous | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Mount Type Surface | ||
Minimum Operating Temperature -40°C | ||
Package Type SOIC | ||
Maximum Operating Temperature 85°C | ||
Pin Count 32 | ||
Height 2.81mm | ||
Width 11.43 mm | ||
Length 20.75mm | ||
Standards/Approvals No | ||
Series CY62148E | ||
Automotive Standard No | ||
Supply Current 20mA | ||
Very high speed: 45 ns
Voltage range: 4.5 V to 5.5 V
Pin compatible with CY62148B
Ultra low standby power
Typical standby current: 1 μA
Maximum standby current: 7 μA (Industrial)
Ultra low active power
Typical active current: 2.0 mA at f = 1 MHz
Easy memory expansion with CE, and OE features
Automatic power-down when deselected
Complementary metal oxide semiconductor (CMOS) for optimum speed and power
Available in Pb-free 32-pin thin small outline package (TSOP) II and 32-pin small-outline integrated circuit (SOIC)[1] packages
