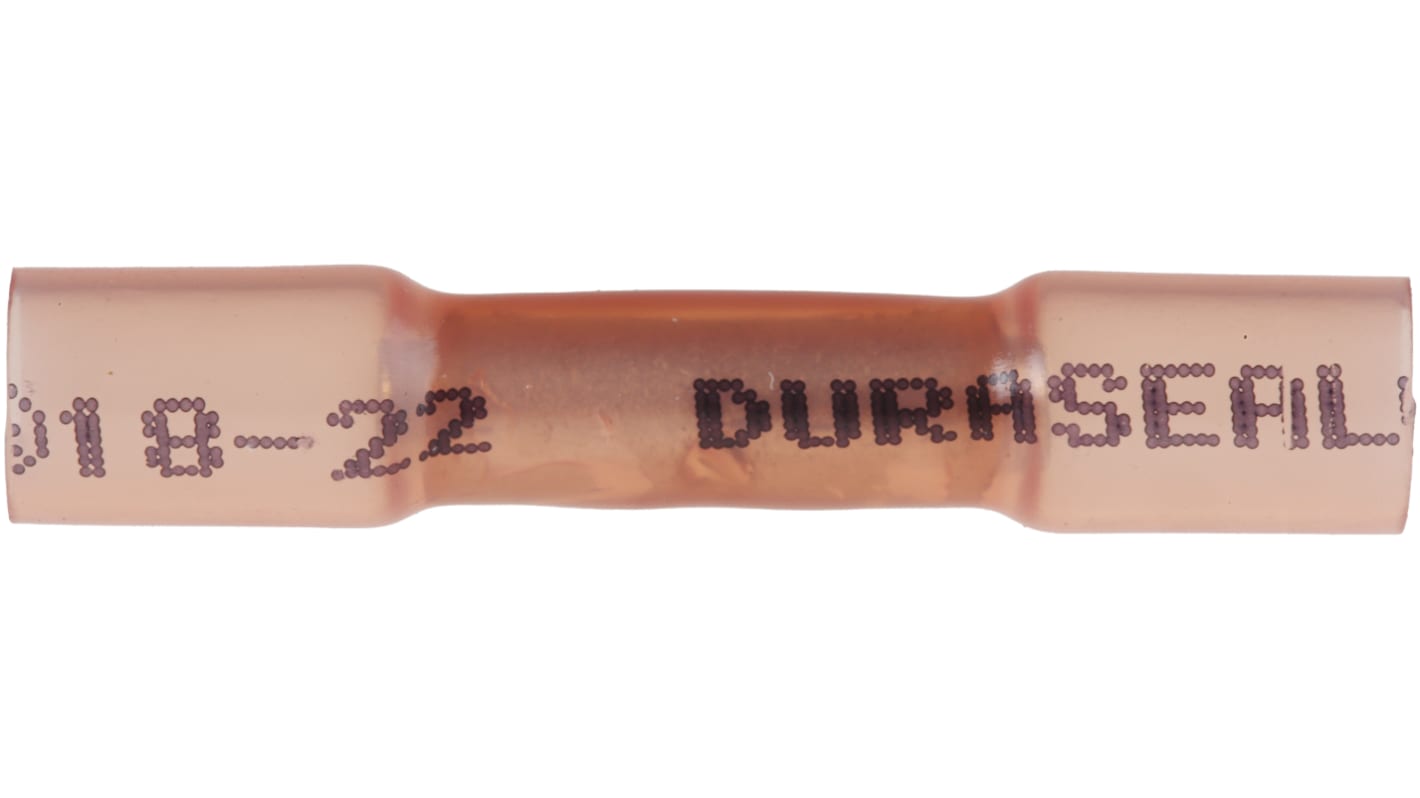

    TE Connectivity DuraSeal Butt Wire Splice Connector, Red, Insulated, Tin Plated 22 → 18 AWG

    RS Stock No.:
    533-673
    Mfr. Part No.:
    DS-18-22-RS
    Manufacturer:
    TE Connectivity
    TE Connectivity
    View all Splice Connectors
    On back order for despatch 03/10/2022, delivery within 10 working days from despatch date.
    Add to Basket
    units

    Added

    Price (ex. GST) Each (In a Pack of 50)

    $2.637

    (exc. GST)

    $2.901

    (inc. GST)

    unitsPer unitPer Pack*
    50 - 450$2.637$131.85
    500 - 1200$2.582$129.10
    1250 - 4950$2.503$125.15
    5000 - 7450$2.442$122.10
    7500 +$2.39$119.50
    *price indicative

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    TE Connectivity, PLASTI-GRIP Parallel Splice Connector, Red, Insulated, Tin 22 → 16 AWG
    RS Stock No.
    278-9250

    Price (ex. GST) Each (In a Pack of 100)

    $1.004

    (exc. GST)

    $1.104

    (inc. GST)

    RS Stock No.:
    533-673
    Mfr. Part No.:
    DS-18-22-RS
    Manufacturer:
    TE Connectivity
    COO (Country of Origin):
    MX

    Legislation and Compliance

    COO (Country of Origin):
    MX

    Product Details

    Splices


    Red 0.25 - 1.6 mm²
    Blue 1.0 - 2.6 mm²
    Yellow 2.7 - 6.6 mm²


    Approvals

    UL

    Approvals

    UL


    Duraseal Heatshrinkable


    TE heat shrinkable pre-insulated nylon splices and crimp terminals provide reliable connections, especially where environmental sealing is important. Covering cable sizes from 0.5mm - 6.0mm², they are designed for use where water or condensation may be encountered, or where abrasion or mechanical abuse could be problematic. To complete a joint, the cable connector is crimped in the traditional manner, and the sleeving is then heated to shrink around the cable insulation. Special adhesive flows during the heating to seal the joint.


    • The TE Duraseal kit is especially suited for use in automotive (approved by most car manufacturers) and marine builds, where environmental sealing is important
    • Kits are also available comprising various heat-shrinkable pre-insulated nylon splices and terminals, covering ranges from 0.5mm² to 6.0mm².

    Approvals

    UL Listed


    Specifications

    AttributeValue
    Splice TypeButt
    Wire Size22 → 18 AWG
    Overall Length36mm
    Diameter3.7mm
    InsulationInsulated
    ColourRed
    SeriesDuraSeal
    Contact MaterialCopper
    Contact PlatingTin
