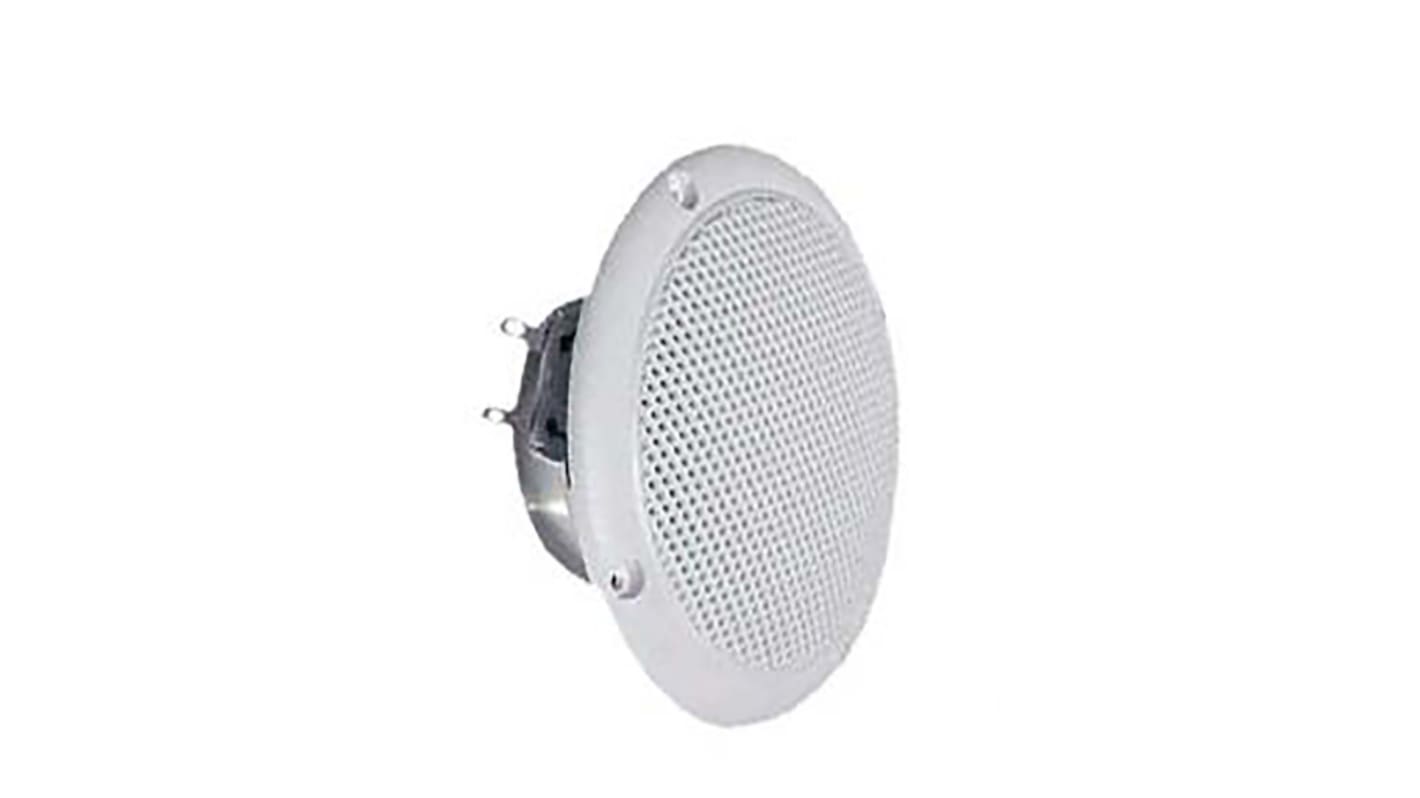

Visaton 20W Cabinet Speaker
- RS Stock No.:
- 197-6431
- Distrelec Article No.:
- 130-18-177
- Mfr. Part No.:
- FR 10 WP WHITE 4 OHM
- Brand:
- Visaton
Subtotal (1 unit)*
$61.18
(exc. GST)
$67.30
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 16 unit(s) ready to ship from another location
- Plus 20 unit(s) shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | $61.18 |
*price indicative
- RS Stock No.:
- 197-6431
- Distrelec Article No.:
- 130-18-177
- Mfr. Part No.:
- FR 10 WP WHITE 4 OHM
- Brand:
- Visaton
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Visaton | |
| Speaker Type | Ceiling Speaker | |
| Nominal Rated Power | 20W | |
| Maximum Rated Power | 30W | |
| Diameter | 132mm | |
| Select all | ||
|---|---|---|
Brand Visaton | ||
Speaker Type Ceiling Speaker | ||
Nominal Rated Power 20W | ||
Maximum Rated Power 30W | ||
Diameter 132mm | ||
- COO (Country of Origin):
- CN
The Visaton FR series is a Saltwater resistant full-range driver with moulded plastic cone, plastic basket and grille. The driver is absolutely corrosion-resistant and waterproof due to encased magnet and silicon-coated leads Clear-cut high-range output.
85dB mean sound pressure level
80–16000Hz frequency response
120Hz resonance frequency
290μWb magnetic flux
4mm height of front pole-plate
20mm voice coil diameter
5mm height of winding
101mm cut-out diameter
