Omron G3PE Three Phase Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 30 V dc Control

RS Stock No.:: 828-6870
Mfr. Part No.:: G3PE-225B-3N DC12-24
Brand:: Omron

Omron G3PE Three Phase Series Solid State Relay, 25 A Load, DIN Rail Mount, 264 V ac Load, 30 V dc Control

Price Each**

$495.22

(exc. GST)

$544.74

(inc. GST)

8 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 +	$495.22

**price indicative

RS Stock No.:: 828-6870
Mfr. Part No.:: G3PE-225B-3N DC12-24
Brand:: Omron

G3PE Series

Omron G3PE Series solid state relays with heat sinks for a wide range of applications.

Models also available with no zero cross
Compact with a slim profile
Improved surge dielectric strength for output circuits
Screw and DIN track mounting possible
RoHS compliant

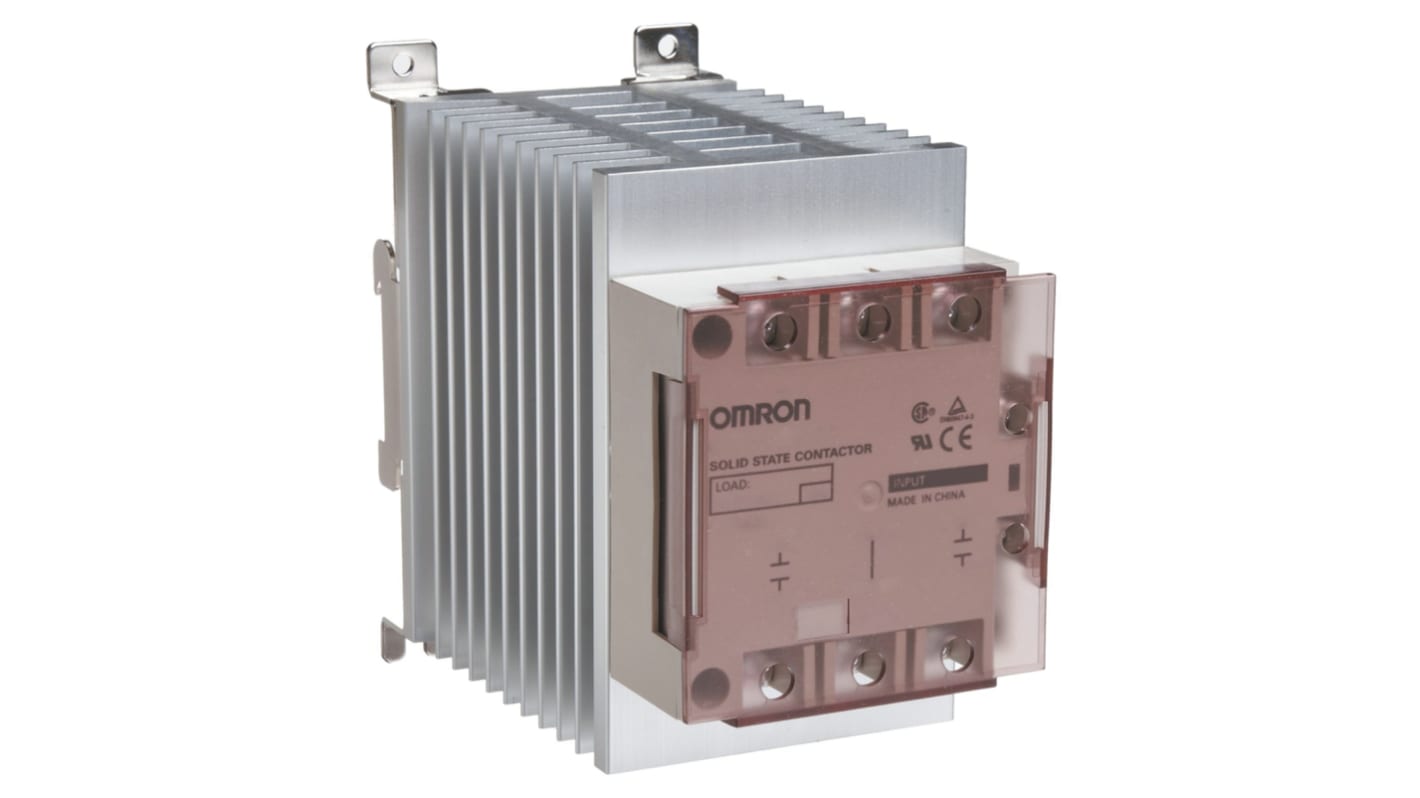

G3PE-225B-3N DC12-24 SSR – Compact 3-Phase Solid State Relay.

The G3PE SSR – Solid State Relay series have a slim compact design complete with built-in heat sinks. Solid state contactors for 3-phase heaters, reduced installation and available to DIN rail mount or screw mount. RoHS compliant with surge protection.

Features and Benefits of G3PE-225B-3N DC12-24 Compact SSR – Solid State Relay.

• Three-phase.
• Phototriac coupler.
• Yellow indicator.
• Rated input voltage 12 to 24 V dc.
• Zero cross function.
• DIN Rail Mounting available
• Applicable load 25 A, 100 to 240 V ac. (dependent upon the ambient temperature).
• 3 Poles.
• Built-in heat sink.

SSR – Solid State Relay Input Rating at 25°C.

• Operating voltage range 9.6 to 30 V dc.
• Rated input current 10 mA max. (24 V dc).
• Must operate voltage 9.6 V dc max.
• Must release voltage 1 V dc max.

SSR – Solid State Relay Output.

• Rated load voltage 100 to 240 V ac, 50 / 60 Hz.
• Load voltage range 75 to 264 V ac, 50 / 60 Hz.
• Applicable load current 25 A at 40°C. (dependent upon the ambient temperature).
• Load current minimum 0.2 A.
• Inrush current 225 A, 60 Hz, 1 cycle. Peak value.
• Resistive load 8.6 kW at 200 V ac.

Additional Features G3PE-225B-3N DC12-24 Compact SSR 3-Phase SSR – Solid State Relay.

• Operate and release time load power source cycle + 1 ms max.
• Output ON voltage drop 1.6 V (RMS) max.
• Leakage current 10 mA max at 200 v ac.
• Vibration resistance 10 to 55 to 10 Hz, 0.175 single amplitude, 0.33 mm double amplitude – DIN rail mounted.
• Vibration resistance 10 to 55 to 10 Hz, 0.375 single amplitude, 0.75 mm double amplitude – Screw mounted.
• Shock resistance destruction 294 m/s² DIN rail mounted.
• Operating temperature – ambient -30°C to 80°C, no icing or condensation.
• Relay weight 1.45 kg.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL508, CSA22.2 No.14, EN 60947-4-3.

Attribute	Value
Maximum Load Current	25 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Load Voltage	75 V ac
Maximum Control Voltage	30 V dc
Minimum Control Voltage	9.6 V dc
Switching Type	Zero Cross
Control Voltage Range	9.6 → 30 V dc
Minimum Load Current	0.2 A
Terminal Type	Screw
Contact Configuration	3P-NO
Output Device	Phototriac Coupler
Series	G3PE Three Phase
Maximum Turn On Time	1/2 cycle
Load Voltage Range	75 → 264V ac
Dimensions	80 x 155 x 120mm
Depth	155mm
Operating Temperature Range	-30 → +80°C
Maximum Operating Temperature	+80°C
Height	120mm
Off State Leakage Current	10 mA
Length	80mm
