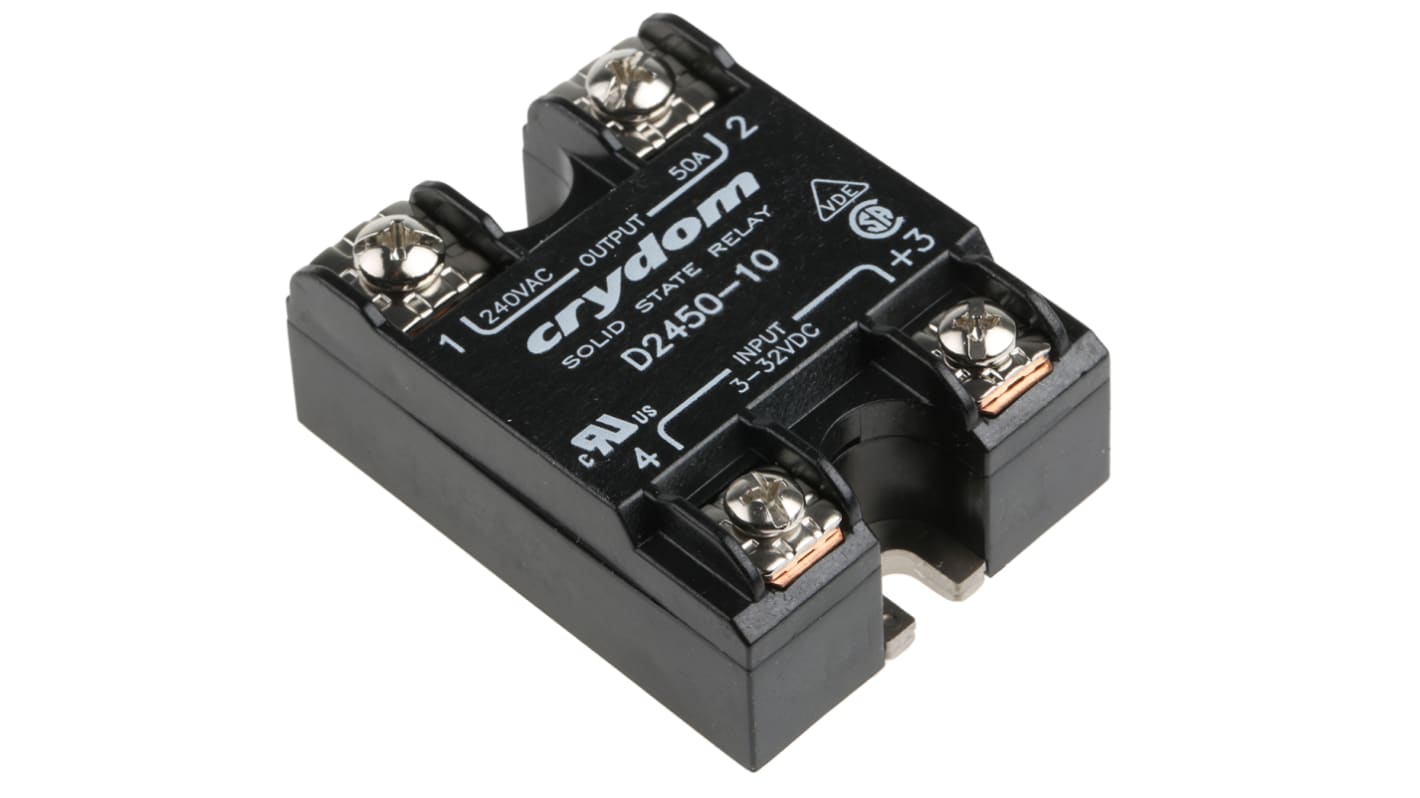

Sensata Crydom 1 Series Solid State Relay, 50 A rms Load, Panel Mount, 280 V rms Load, 32 V Control

Bulk discount available

Subtotal (1 unit)**

$115.63

(exc. GST)

$127.19

(inc. GST)

8 In AU stock for next working day delivery*

49 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	50 A rms
	Mounting Type	Panel Mount
	Maximum Load Voltage	280 V rms
	Minimum Load Voltage	24 V rms
	Maximum Control Voltage	32 V
	Minimum Control Voltage	3 V
	Switching Type	Instantaneous
	Control Voltage Range	3 → 32 V dc
	Minimum Load Current	40 mA
	Terminal Type	Screw
	Output Device	SCR
	Load Voltage Range	24 → 280V ac
	Series	1
	Maximum Turn On Time	1/2 cycle
	Dimensions	58.4 x 45.7 x 23mm
	Capacitance	8pF
	Minimum Operating Temperature	-40°C
	Depth	45.7mm
	Standards Met	CE, CSA, RoHS Compliant
	Length	58.4mm
	Off State Leakage Current	1 mA
	Maximum Operating Temperature	+80°C
	Operating Temperature Range	-40 → +80°C
	Height	23mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 50 A rms
	Mounting Type Panel Mount
	Maximum Load Voltage 280 V rms
	Minimum Load Voltage 24 V rms
	Maximum Control Voltage 32 V
	Minimum Control Voltage 3 V
	Switching Type Instantaneous
	Control Voltage Range 3 → 32 V dc
	Minimum Load Current 40 mA
	Terminal Type Screw
	Output Device SCR
	Load Voltage Range 24 → 280V ac
	Series 1
	Maximum Turn On Time 1/2 cycle
	Dimensions 58.4 x 45.7 x 23mm
	Capacitance 8pF
	Minimum Operating Temperature -40°C
	Depth 45.7mm
	Standards Met CE, CSA, RoHS Compliant
	Length 58.4mm
	Off State Leakage Current 1 mA
	Maximum Operating Temperature +80°C
	Operating Temperature Range -40 → +80°C
	Height 23mm
