Omron G3VM Series Solid State Relay, 700 mA Load, Surface Mount, 60 V Load, 1.4V Control

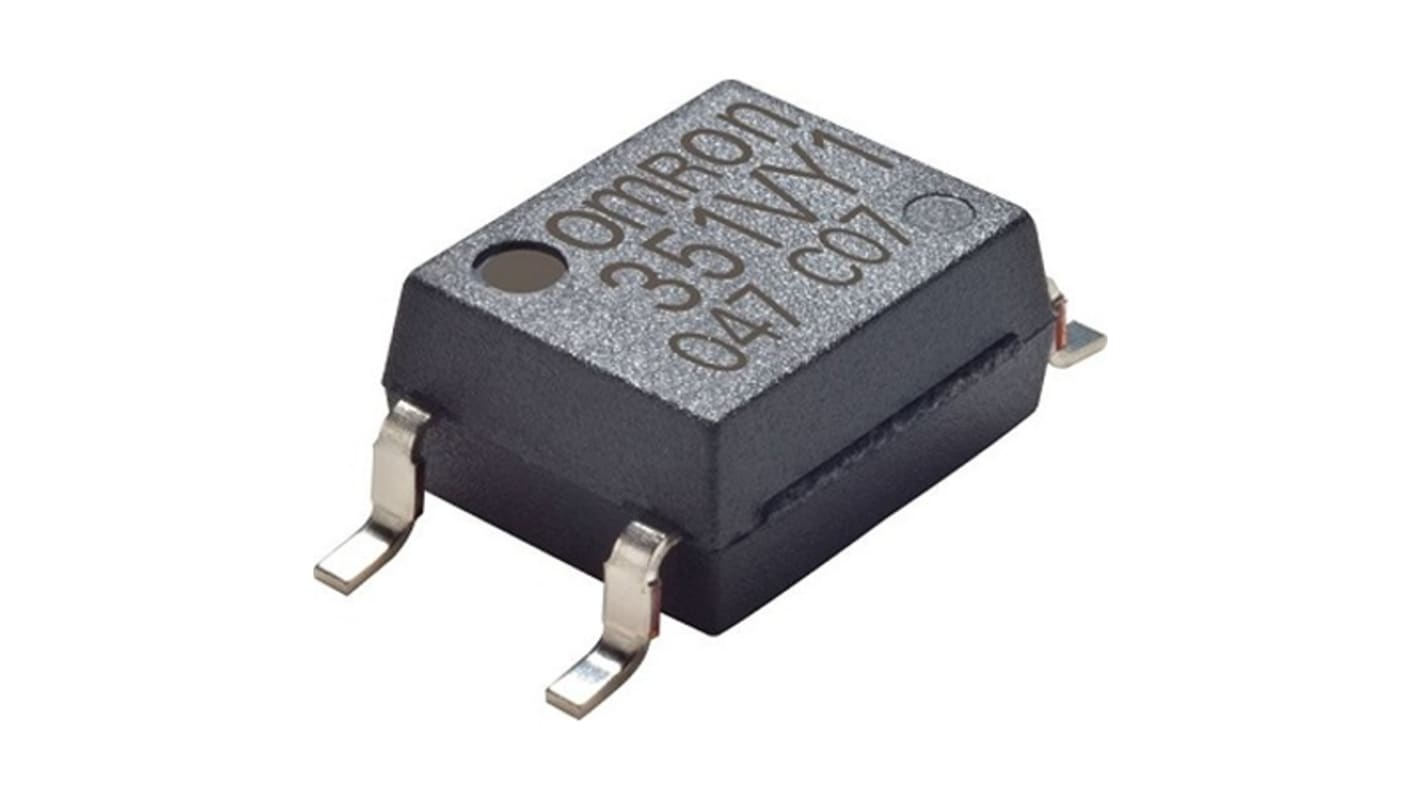

This image is representative of the product range

View all Solid State Relays

Subtotal (1 tape of 500 units)*

$2,864.50

(exc. GST)

$3,151.00

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tape*
500 +$5.729$2,864.50

*price indicative

RS Stock No.:
277-8718
Mfr. Part No.:
G3VM-61VY4(TR05)
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Maximum Load Current

700mA

Product Type

Solid State Relay

Mount Type

Surface

Maximum Load Voltage

60V

Minimum Load Voltage

60V

Minimum Control Voltage

1.1V

Maximum Control Voltage

1.4V

Series

G3VM

Terminal Type

Surface Mount

Contact Configuration

1a (SPST-NO)

On State Resistance

0.15Ω

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Width

2.54 mm

Length

0.5mm

Height

2.1mm

Standards/Approvals

UL Recognised

Output Type

Relay

Capacitance

0.8pF

COO (Country of Origin):
JP
The Omron High-sensitivity MOSFET relay is a non-contact relay used primarily for switching and connecting signals. It has mechanical relays and semiconductors features and is used in a semiconductor inspection system, various measurement devices, security equipment, and a wide range of other applications.

SOP 4 pin packages

Surface mounting Terminals
