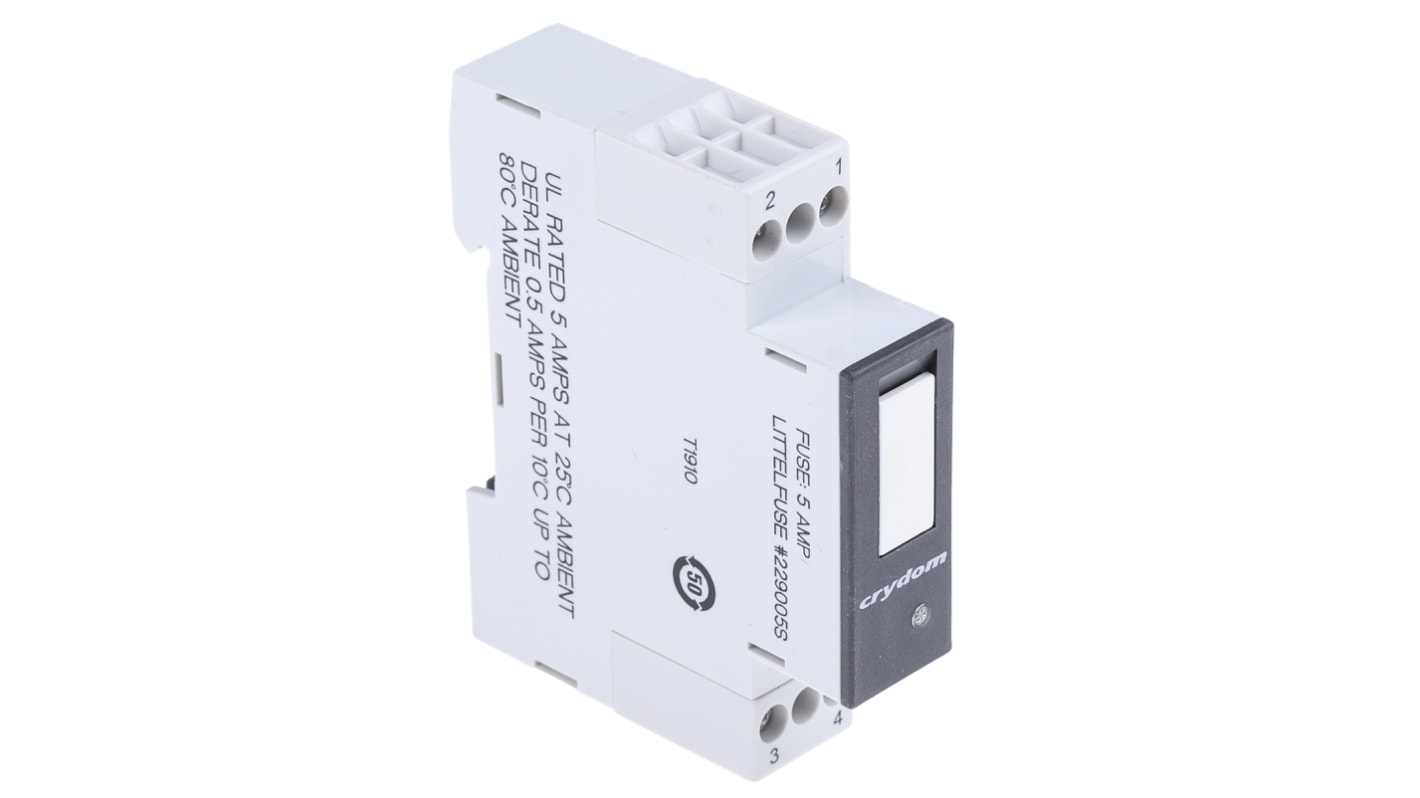

Sensata / Crydom GMS Series Solid State Relay, 5 A rms Load, DIN Rail Mount, 280 V ac Load, 32 V dc Control
- RS Stock No.:
- 145-0529
- Mfr. Part No.:
- 84130105
- Brand:
- Sensata / Crydom
2 In Global stock for delivery within 5 working day(s)
190 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$144.25
(exc. GST)
$158.67
(inc. GST)
| Units | Per unit |
| 1 + | $144.25 |
- RS Stock No.:
- 145-0529
- Mfr. Part No.:
- 84130105
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, 4kV Optical Isolation, 8pF I/O Capacitance - GMS Series - 84130105
Looking for a switching device that goes the extra mile? Choose this solid-state relay from Sensata | Crydom. As it has no moving parts, you don't need to worry about wear and tear. Its electrical and optical switching capabilities make the unit lightning-fast, so your equipment reacts to inputs in a flash. A wide output voltage range between 12 and 280V AC means it meets the needs of various low-power devices. This SSR is just what you need to switch power to water and gas meters or industrial motor control systems.
Features & Benefits
• LED indicator for quick and convenient visual diagnostics
• Optical isolation of 4kV to prevent interference between its input and output
• Low I/O capacitance of 8pF for reliable signals
• Light weight of 31.2g to place minimal strain on your equipment
• Wide operating temperature range between -30°C and +80°C for use in extreme settings
• Optical isolation of 4kV to prevent interference between its input and output
• Low I/O capacitance of 8pF for reliable signals
• Light weight of 31.2g to place minimal strain on your equipment
• Wide operating temperature range between -30°C and +80°C for use in extreme settings
How do I mount this SSR?
This SSR plugs into your PCB without the need for specialised tools, so you can install it in a jiffy.
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 5 A rms |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 280 V ac |
| Minimum Load Voltage | 12 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 50 mA rms, 50 mA rms |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Relay Type | Solid State Relay |
| Series | GMS |
| Load Voltage Range | 12 → 280V ac |
| Maximum Turn On Time | 8.33ms |
| Dimensions | 17.5 x 65 x 81mm |
| Length | 17.5mm |
| Operating Temperature Range | -30 → +80°C |
| Off State Leakage Current | 0.1mA rms |
| Maximum Operating Temperature | +80°C |
| Capacitance | 6pF |
| Height | 81mm |
| Minimum Operating Temperature | -30°C |
| Standards Met | CE, cUL Recognised E46203, UL Recognised E46203 |
| Depth | 65mm |
| Special Features | Barrier Strips Accept 14 to 28 AWG Wire, Industry standard Color Coding Black (AC Output) Red (DC Output) |
