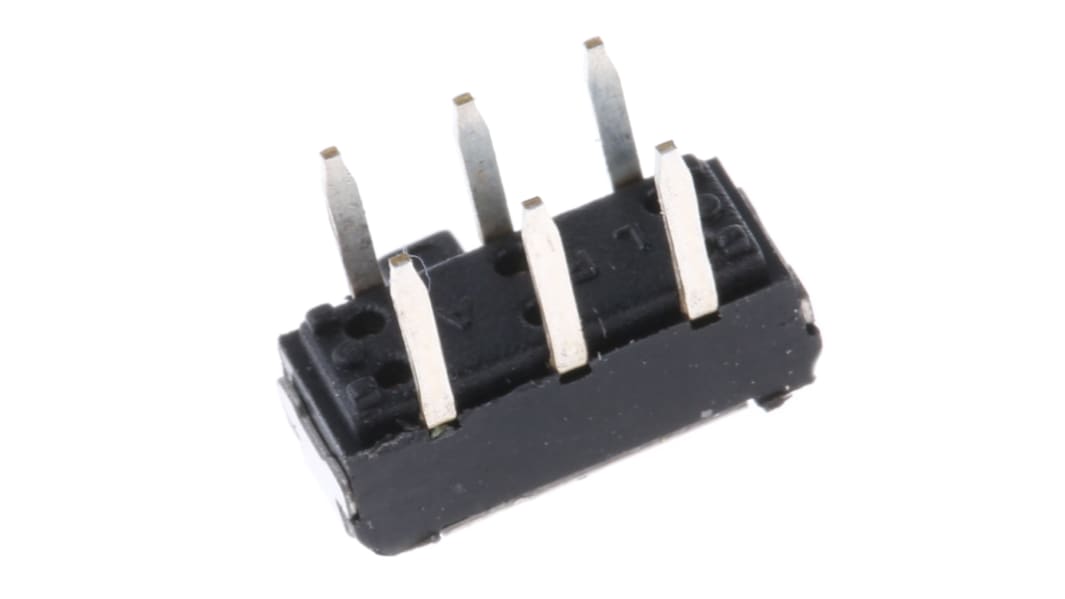

KNITTER-SWITCH PCB Slide Switch DPDT Latching 200 mA @ 12 V dc Slide
- RS Stock No.:
- 702-3564
- Mfr. Part No.:
- MMP221-R
- Brand:
- KNITTER-SWITCH
Subtotal (1 pack of 5 units)**
$11.69
(exc. GST)
$12.86
(inc. GST)
On back order for despatch 27/05/2025, delivery within 10 working days from despatch date.*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit | Per Pack** |
|---|---|---|
| 5 + | $2.338 | $11.69 |
**price indicative
- RS Stock No.:
- 702-3564
- Mfr. Part No.:
- MMP221-R
- Brand:
- KNITTER-SWITCH
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KNITTER-SWITCH | |
| Contact Configuration | Double Pole Double Throw (DPDT) | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 200 mA @ 12 V dc | |
| Terminal Type | Through Hole | |
| Actuator Type | Slide | |
| Length | 9mm | |
| Width | 5.5mm | |
| Depth | 3.5mm | |
| Dimensions | 9 x 5.5 x 3.5mm | |
| Contact Resistance | 50mΩ | |
| Voltage Rating | 12V | |
| Mechanical Life | 5000Operations | |
| Operating Temperature Range | -10 → +60°C | |
| Minimum Operating Temperature | -10°C | |
| Contact Material | Silver Plated Phosphor Bronze | |
| Maximum Operating Temperature | +60°C | |
Select all | ||
|---|---|---|
Brand KNITTER-SWITCH | ||
Contact Configuration Double Pole Double Throw (DPDT) | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 200 mA @ 12 V dc | ||
Terminal Type Through Hole | ||
Actuator Type Slide | ||
Length 9mm | ||
Width 5.5mm | ||
Depth 3.5mm | ||
Dimensions 9 x 5.5 x 3.5mm | ||
Contact Resistance 50mΩ | ||
Voltage Rating 12V | ||
Mechanical Life 5000Operations | ||
Operating Temperature Range -10 → +60°C | ||
Minimum Operating Temperature -10°C | ||
Contact Material Silver Plated Phosphor Bronze | ||
Maximum Operating Temperature +60°C | ||
