NKK Switches PCB Slide Switch SPDT Latching 100 mA Side

RS Stock No.:: 125-1862
Mfr. Part No.:: SS12SDH4
Brand:: NKK Switches

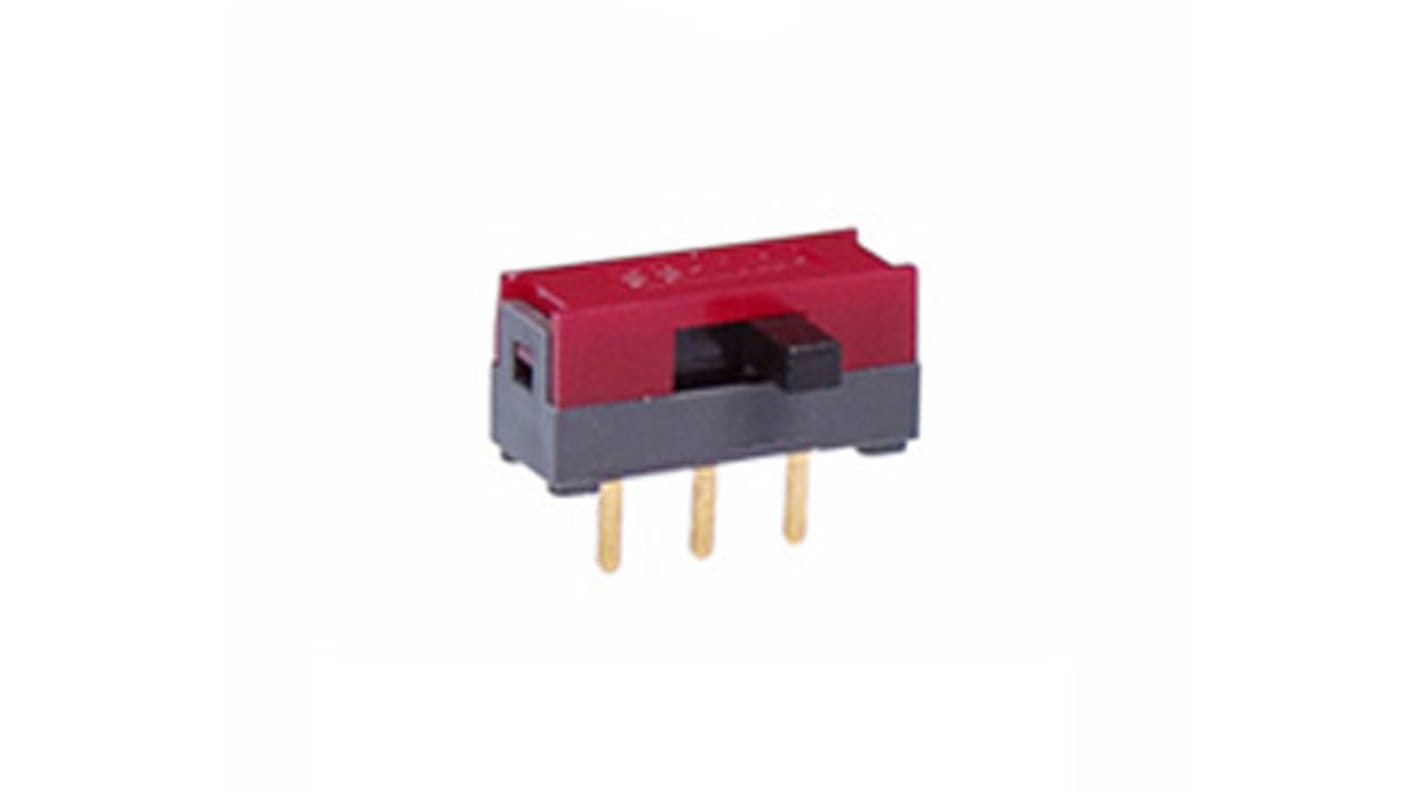

NKK Switches PCB Slide Switch SPDT Latching 100 mA Side

25 In Global stock for delivery within 5 working day(s)

Added

Price (ex. GST) Each (In a Pack of 5)

$4.656

(exc. GST)

$5.122

(inc. GST)

Units	Per unit	Per Pack*
5 - 20	$4.656	$23.28
25 - 95	$4.538	$22.69
100 - 495	$4.284	$21.42
500 +	$4.192	$20.96
*price indicative

RS Stock No.:: 125-1862
Mfr. Part No.:: SS12SDH4
Brand:: NKK Switches

Technical data sheets

Series SS_Datasheet_EN

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

NKK Ultra Miniature Slide Switches

The NKK ultra miniature slide switches have an award winning STC mechanism. These slides can have molded terminals lock out flux, and other contaminants inserted.

Features and benefits

Top or side actuation
Compact dimensions
Low profile, high density mounting and stacking of PC boards
Precise actuation
Double molded thermoset base
Thermo plastic housing
STC mechanism
Enhanced contact stability
Terminal spacing for standard PC board grid in inches or metric

Note

Miniature slide series are designed for use in low voltage, low current circuits. When used as designed the results do not produce hazardous energy.

Standards

UL, CSA

Specifications

Attribute	Value
Contact Configuration	SPDT
Mounting Type	PCB
Switch Operation	Latching
Contact Current Rating	100 mA
Terminal Type	Solder
Actuator Type	Side
Length	10.2mm
Width	6.5mm
Depth	5mm
Dimensions	10.2 x 6.5 x 5mm
Contact Resistance	20mΩ
Voltage Rating	30V dc
Mechanical Life	100000Cycles
Minimum Operating Temperature	-15°C
Operating Temperature Range	-15 → +60°C
Contact Material	Phosphor Bronze
Actuator Material	Polyamide
Maximum Operating Temperature	+60°C
