Murrelektronik Limited Straight Female 4 way M12 to Straight Female 4 way M12 Communication Cable, 5m
- RS Stock No.:
- 196-0721
- Mfr. Part No.:
- 7000-44511-7960500
- Brand:
- Murrelektronik Limited
7 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$180.05
(exc. GST)
$198.05
(inc. GST)
| Units | Per unit |
| 1 - 4 | $180.05 |
| 5 - 9 | $176.29 |
| 10 - 24 | $168.67 |
| 25 + | $162.05 |
- RS Stock No.:
- 196-0721
- Mfr. Part No.:
- 7000-44511-7960500
- Brand:
- Murrelektronik Limited
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- HU
Product Details

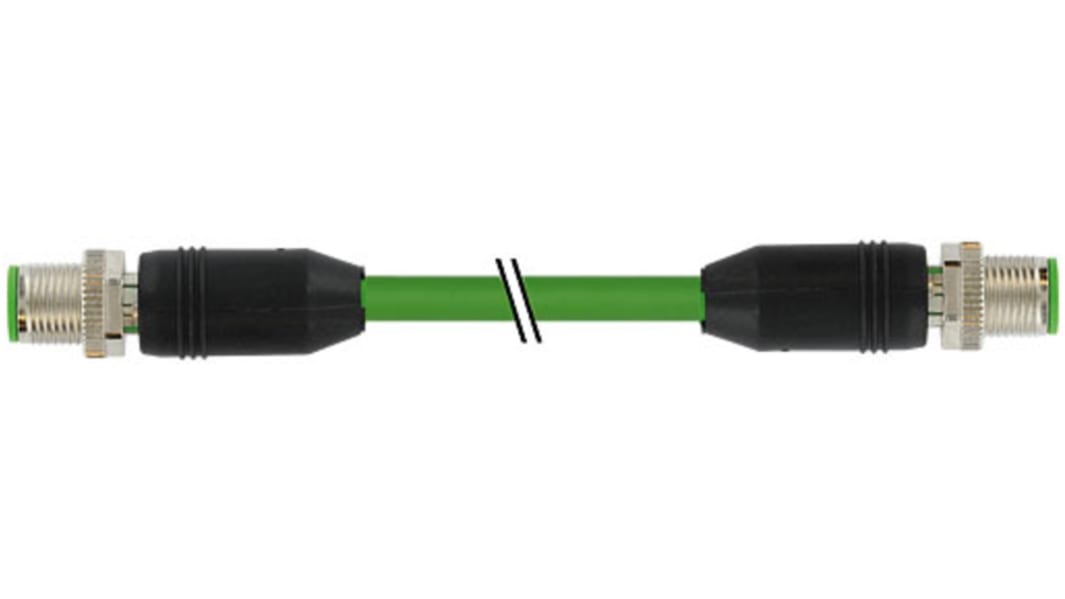

M12 D-Coded 4 pole Male straight to Male
Specifications
Attribute | Value |
|---|---|
| Series | D-Coded |
| Number of Cores | 4 |
| Cross Sectional Area | 0.34 mm² |
| Sheath Material | PUR |
| Length | 5m |
| Sheath Colour | Green |
| Connector 1 Orientation | Straight |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Female |
| Connector 1 | M12 |
| Connector 2 Housing Gender | Male |
| Connector 2 | M12 |
| Connector 2 Gender | Female |
| Connector 2 Orientation | Straight |
| Connector 2 Number of Contacts | 4 |
| Coding | D |
| Shielded/Unshielded | Shielded |
| Voltage Rating | 30 V dc, 60 V dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP66K, IP67 |
| Minimum Bend Radius | 33.5 (Fixed) mm, 80.4 (Moving) mm |
| Connector 1 Housing Gender | Male |
| Operating Temperature Range | -25 → +85 °C, -30 → +70 (Mobile) °C, -40 → +80 (Fixed) °C |
| Conductor Resistance | 55 O/km |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 6.7mm |
| Maximum Operating Temperature | +70 (Mobile) °C, +80 (Fixed) °C, +85°C |
| Fire Behaviour | Flame Retardant |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -25 °C, -30 (Mobile) °C, -40 (Fixed) °C |
