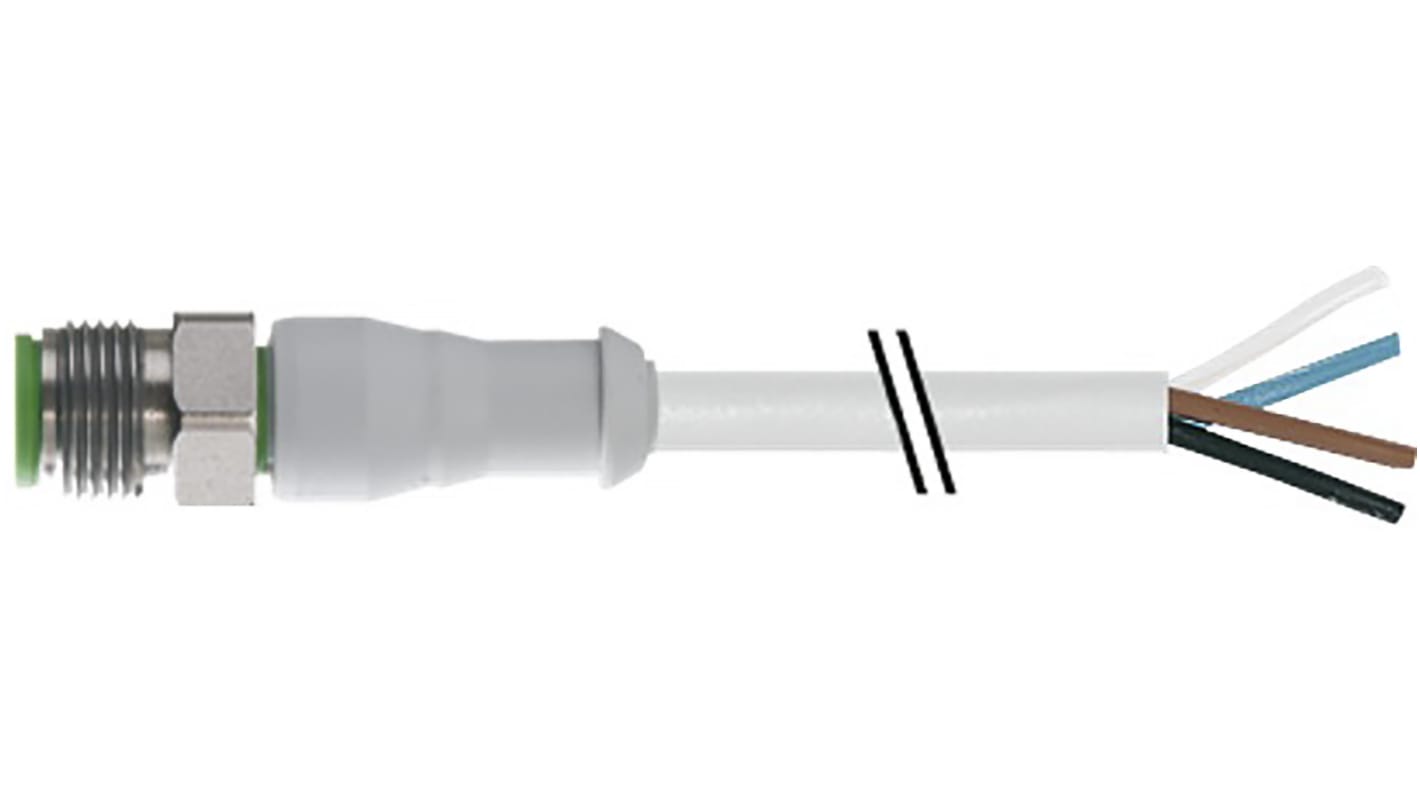

RS PRO Male 8 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 154-7747
- Brand:
- RS PRO
Subtotal (1 unit)**
$121.99
(exc. GST)
$134.19
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over $60.00 ex GST
Units | Per unit |
|---|---|
| 1 - 4 | $121.99 |
| 5 - 24 | $115.89 |
| 25 + | $110.10 |
**price indicative
- RS Stock No.:
- 154-7747
- Brand:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.25 mm² | |
| Number of Cores | 8 | |
| Sheath Colour | Grey | |
| Sheath Material | Polyurethane PUR | |
| Length | 5m | |
| Connector 1 Gender | Male | |
| Connector 1 | M12 | |
| Connector 1 Number of Contacts | 8 | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Current Rating | 4 A | |
| Voltage Rating | 30 V ac/dc | |
| IP Rating | IP65, IP67 | |
| Standards Met | CSA, UL | |
| Cable Shape | Multicore | |
| Oil Resistant | Yes | |
| Minimum Operating Temperature | -25°C | |
| Connector 1 Housing Gender | Male | |
| Operating Temperature Range | -25 → +85 °C | |
| American Wire Gauge | 24 AWG | |
| Outer Diameter | 6mm | |
| Minimum Bend Radius | 15 x 6 mm | |
| Insulation Material | PVC | |
| Maximum Operating Temperature | +85°C | |
| Fire Behaviour | Flame Retardant | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.25 mm² | ||
Number of Cores 8 | ||
Sheath Colour Grey | ||
Sheath Material Polyurethane PUR | ||
Length 5m | ||
Connector 1 Gender Male | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 8 | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 30 V ac/dc | ||
IP Rating IP65, IP67 | ||
Standards Met CSA, UL | ||
Cable Shape Multicore | ||
Oil Resistant Yes | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Male | ||
Operating Temperature Range -25 → +85 °C | ||
American Wire Gauge 24 AWG | ||
Outer Diameter 6mm | ||
Minimum Bend Radius 15 x 6 mm | ||
Insulation Material PVC | ||
Maximum Operating Temperature +85°C | ||
Fire Behaviour Flame Retardant | ||
