STMicroelectronics 45 V 240 A Diode Schottky 4-Pin ISOTOP

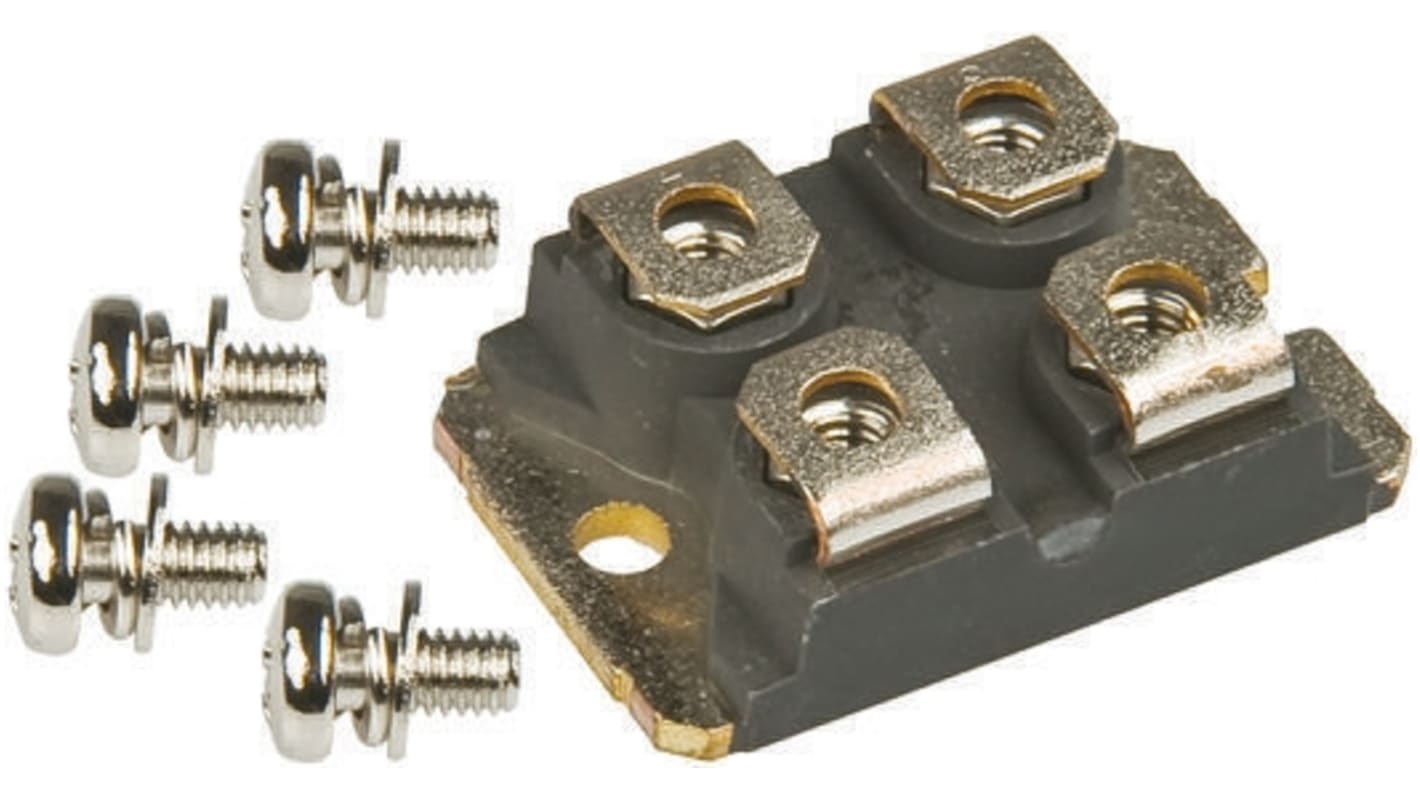

This image is representative of the product range

View this category

Subtotal (1 unit)*

$42.00

(exc. GST)

$46.20

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 06 February 2026
  • Plus 10 unit(s) shipping from 17 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +$42.00

*price indicative

Packaging Options:
RS Stock No.:
829-0652
Mfr. Part No.:
STPS24045TV
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Panel

Package Type

ISOTOP

Maximum Continuous Forward Current If

240A

Peak Reverse Repetitive Voltage Vrrm

45V

Series

STPS24045

Diode Configuration

Isolated

Rectifier Type

Schottky

Pin Count

4

Minimum Operating Temperature

-65°C

Peak Reverse Current Ir

300mA

Maximum Forward Voltage Vf

910mV

Peak Non-Repetitive Forward Surge Current Ifsm

1.5kA

Maximum Operating Temperature

150°C

Width

25.5 mm

Length

38.2mm

Height

9.1mm

Standards/Approvals

No

Automotive Standard

No

The STMicroelectronics dual power Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters. It used packaged in ISOTOP, this device is especially intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.

Avalanche capability specified

Low thermal resistance

Very small conduction losses
