Vishay 600 V 85 A Diode Switching 2-Pin T-Module VS-T85HFL60S02
- RS Stock No.:
- 379-8003
- Mfr. Part No.:
- VS-T85HFL60S02
- Brand:
- Vishay

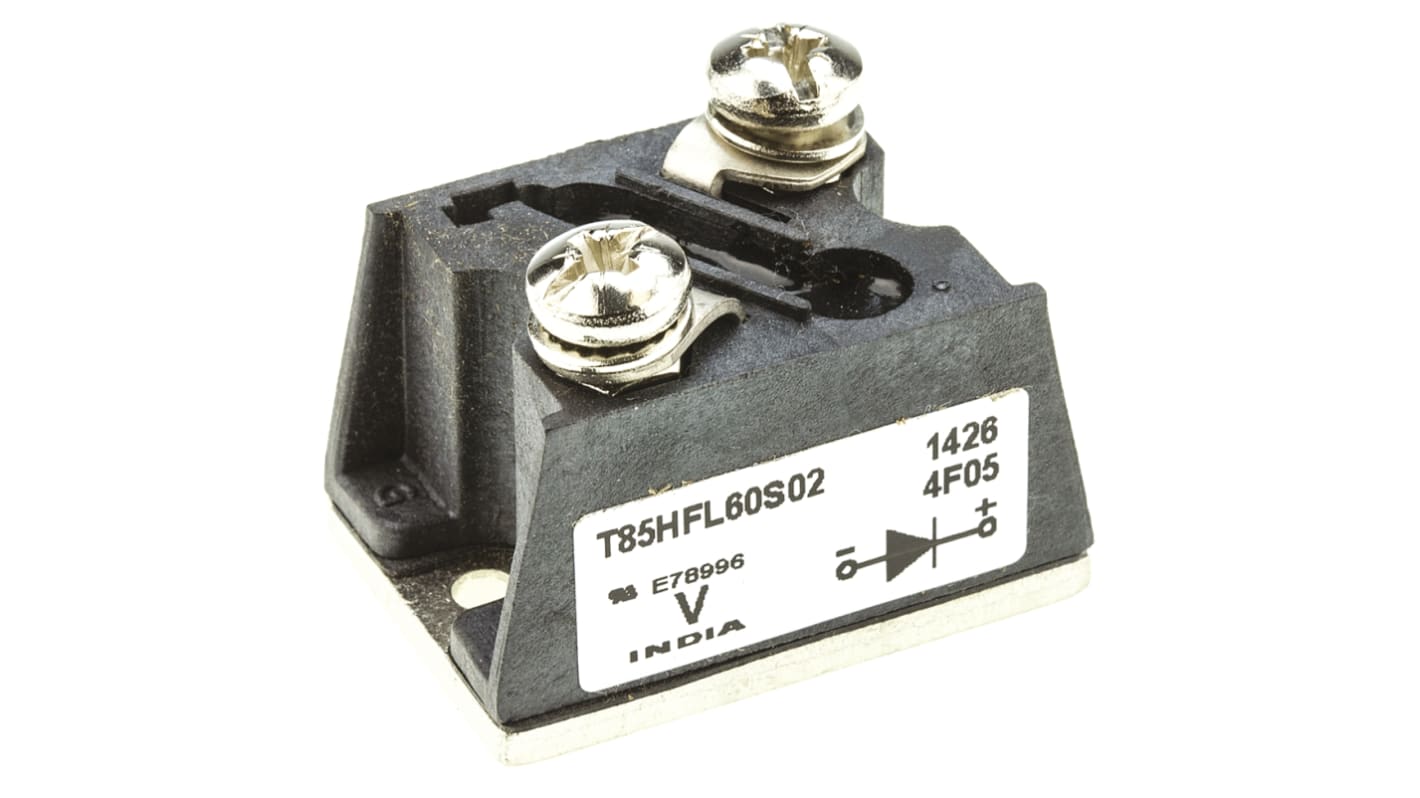

This image is representative of the product range
Bulk discount available
Subtotal (1 unit)*
$74.44
(exc. GST)
$81.88
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 1 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 13 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 2 | $74.44 |
| 3 - 4 | $73.15 |
| 5 + | $71.81 |
*price indicative
- RS Stock No.:
- 379-8003
- Mfr. Part No.:
- VS-T85HFL60S02
- Brand:
- Vishay
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Panel | |
| Product Type | Diode | |
| Package Type | T-Module | |
| Maximum Continuous Forward Current If | 85A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Diode Configuration | Single | |
| Series | VS-T85 | |
| Rectifier Type | Switching | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 1.55V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1.4kA | |
| Peak Reverse Current Ir | 100μA | |
| Maximum Operating Temperature | 125°C | |
| Peak Reverse Recovery Time trr | 200ns | |
| Height | 25mm | |
| Diameter | 25 mm | |
| Width | 27 mm | |
| Length | 41mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Panel | ||
Product Type Diode | ||
Package Type T-Module | ||
Maximum Continuous Forward Current If 85A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Diode Configuration Single | ||
Series VS-T85 | ||
Rectifier Type Switching | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 1.55V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1.4kA | ||
Peak Reverse Current Ir 100μA | ||
Maximum Operating Temperature 125°C | ||
Peak Reverse Recovery Time trr 200ns | ||
Height 25mm | ||
Diameter 25 mm | ||
Width 27 mm | ||
Length 41mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Vishay Fast Recovery Diodes, VS-T40HFL, VS-T70HFL, VS-T85HFL Series
The series of T-modules uses fast recovery power diodes in a single diode configuration. The semiconductors are electrically isolated from the metal base, allowing common heatsink and Compact assemblies to be built.
These single diode modules can be used in conjunction with the thyristor modules as a freewheel diode. Application includes self-commutated inverters, DC choppers, motor control, inductive heating and electronic welders. These modules are intended for those applications where very fast recovery characteristics are required and for general power switching applications.
Features
• Fast recovery time characteristics
• Electrically isolated base plate
• 3500 VRMS isolating voltage
• Standard JEDEC® package
• Simplified mechanical designs, Rapid assembly
• Large creepage distances
• UL E78996 approved
• Designed and qualified for industrial level
Diodes and Rectifiers, Vishay Semiconductor
