- RS Stock No.:
- 224-2253
- Mfr. Part No.:
- 01-1263
- Brand:
- Elma
On back order for despatch 16/09/2024, delivery within 10 working days from despatch date.
Added
Price (ex. GST) Each
$88.93
(exc. GST)
$97.82
(inc. GST)
| Units | Per unit |
| 1 - 4 | $88.93 |
| 5 + | $80.04 |
- RS Stock No.:
- 224-2253
- Mfr. Part No.:
- 01-1263
- Brand:
- Elma
Technical data sheets
Legislation and Compliance
Product Details

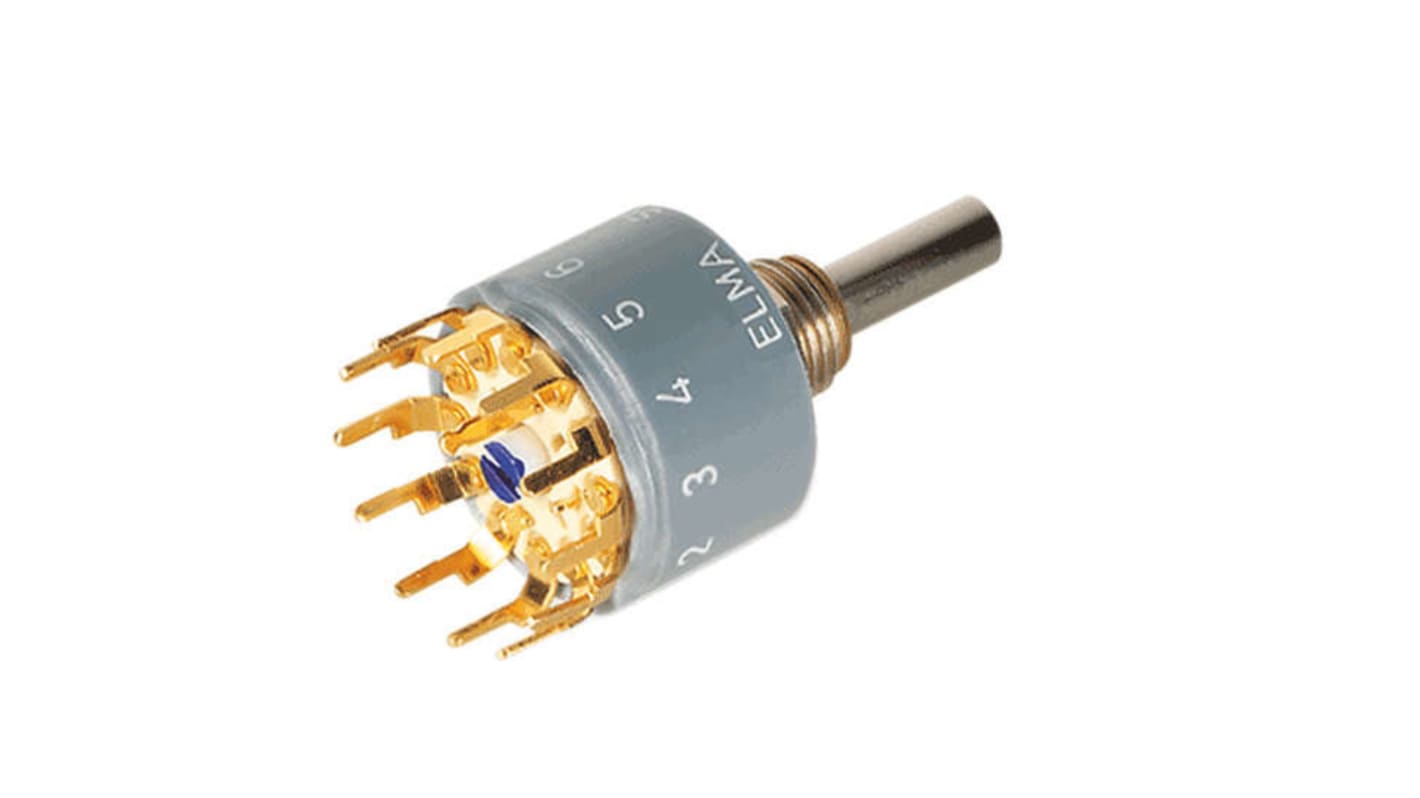

Type 01 Rotary Switch
The Type 01 rotary switch from Elma Electronic is a precision selector switch with an electrical life of 25,000 cycles. These rotary switches are offered with a choice of 2, 3 or 6 position in 2 pole 6 position 30 ° shorting, 2 pole 3 position 60° non-shorting, 4 pole 2 position 60° non-shorting or 4 pole 3 position 30° shorting variations. Their robust housing and IP60 environmental rating allow these to be used in multiple high-end applications.
Features and benefits
- 3-micron gold plated contacts
- Robust metal bushing and shaft
- Operating temperature range -40 to +85 °C
Applications
- Industrial Controls
- Avionics
- Medical Devices
- High-End Audio Equipment
Specifications
Attribute | Value |
|---|---|
| Series | TYPE 01 |
| Contact Current Rating | 2 A |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 500V |
| Shaft Shape | Round |
| Terminal Type | Solder |
| IP Rating | IP60 |
| Contact Type | Shorting |
| Angle of Throw | 30° |
