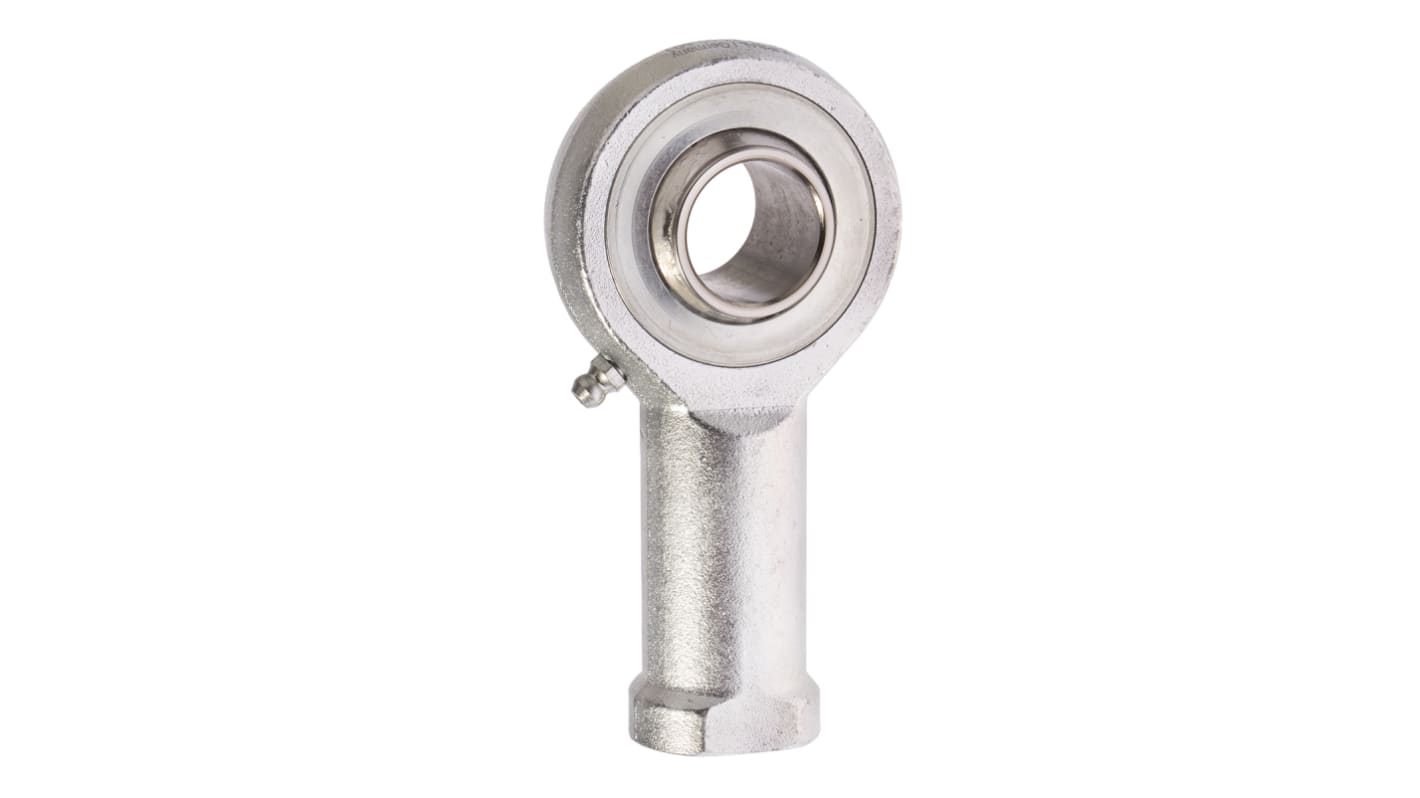

Durbal M12 x 1.75 Female Forged Steel Rod End, 12mm Bore, 66mm Long, Metric Thread Standard, Female Connection Gender
- RS Stock No.:
- 185-0082
- Mfr. Part No.:
- BRTF 12-00-501
- Brand:
- Durbal
1 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$386.09
(exc. GST)
$424.70
(inc. GST)
Units | Per unit |
1 - 4 | $386.09 |
5 + | $375.27 |
- RS Stock No.:
- 185-0082
- Mfr. Part No.:
- BRTF 12-00-501
- Brand:
- Durbal
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Premium Line Rod Ends low maintenance, lubrication possible rod ends with integral self-aligning roller or ball bearing.
Female thread greasable, low maintenance, shields adapter.
Rod end housing: forged steel, tempered, case hardened, bearing race, ground and lapped, rolled thread, surface galvanized
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 30 μm radial
Inner ring: ball bearing steel, hardened, superfine ground
Lubrication: Polyrex EP2 or soap complex
Temperature range -20 °C to +120 °C
Bearing clearance: 15 - 30 μm radial
Specifications
Attribute | Value |
---|---|
Connection Size | M12 x 1.75 Female |
Bore Size | 12mm |
Material | Forged Steel |
Dynamic Load Rating | 10.3kN |
Static Load Rating | 6.6kN |
Overall Length | 66mm |
Connection Thread Standard | Metric |
Maximum Operating Temperature | +120°C |
Minimum Operating Temperature | -20°C |
Connection Gender | Female |
