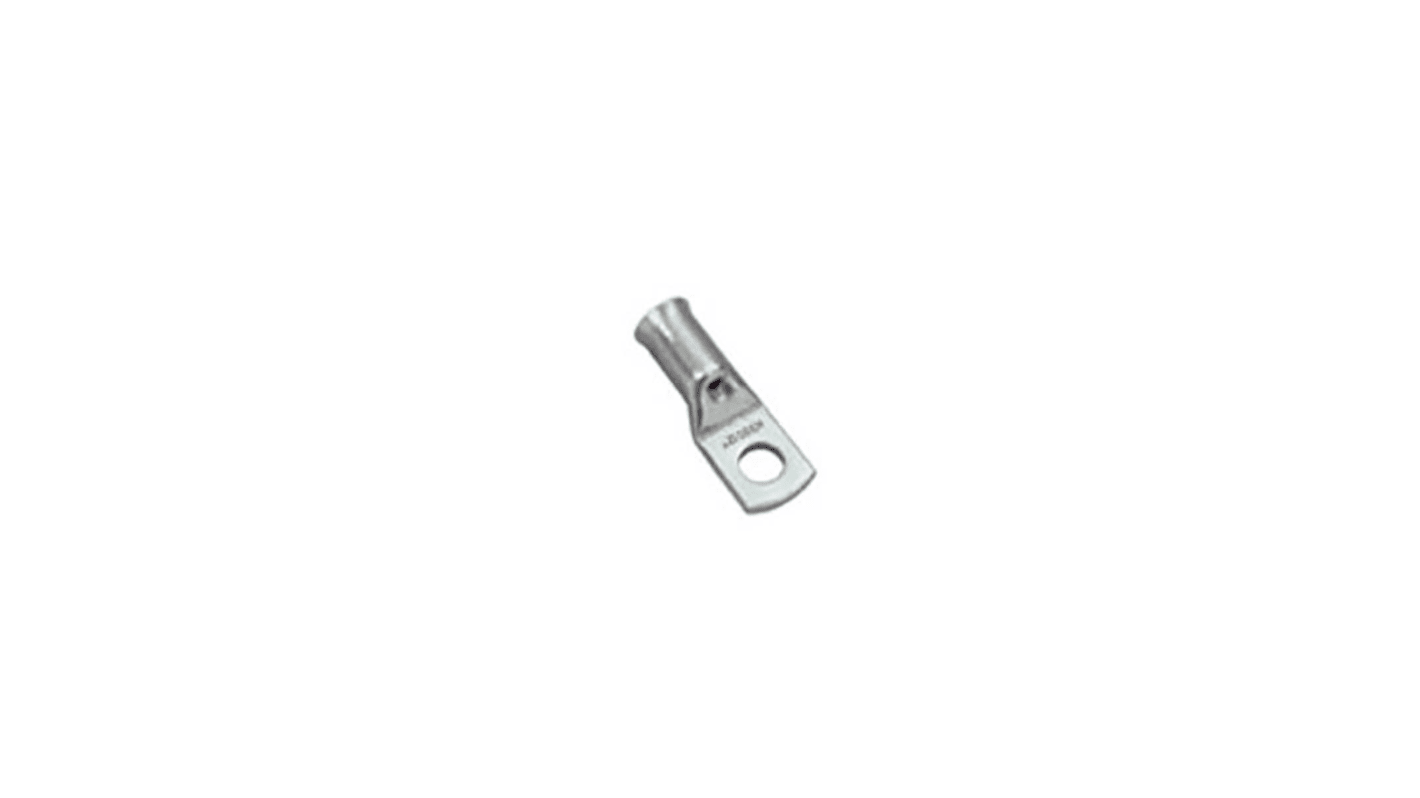

MECATRACTION, C Uninsulated Tubular Ring Terminal, M5 Stud Size 4 AWG Wire Size, Grey
- RS Stock No.:
- 200-7016
- Mfr. Part No.:
- C15-25-5CT
- Brand:
- MECATRACTION
Bulk discount available
Subtotal (1 box of 15 units)*
$53.445
(exc. GST)
$58.785
(inc. GST)
FREE delivery for orders over $60.00 ex GST
Last RS stock
- Final 630 unit(s), ready to ship from another location
Units | Per unit | Per Box* |
|---|---|---|
| 15 - 60 | $3.563 | $53.45 |
| 75 + | $3.207 | $48.11 |
*price indicative
- RS Stock No.:
- 200-7016
- Mfr. Part No.:
- C15-25-5CT
- Brand:
- MECATRACTION
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MECATRACTION | |
| Product Type | Tubular Ring Terminal | |
| Series | C | |
| Insulation | Uninsulated | |
| Inner Ring Diameter | 5.2mm | |
| Outer Ring Diameter | 13mm | |
| Maximum Wire Size AWG | 4AWG | |
| Overall Length | 37.6mm | |
| Stud Size | M5 | |
| Colour | Grey | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | No | |
| Maximum Wire Size mm² | 25mm² | |
| Select all | ||
|---|---|---|
Brand MECATRACTION | ||
Product Type Tubular Ring Terminal | ||
Series C | ||
Insulation Uninsulated | ||
Inner Ring Diameter 5.2mm | ||
Outer Ring Diameter 13mm | ||
Maximum Wire Size AWG 4AWG | ||
Overall Length 37.6mm | ||
Stud Size M5 | ||
Colour Grey | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals No | ||
Maximum Wire Size mm² 25mm² | ||
C15-25-5CT
The Mecatraction copper tubular lug for 25mm² conductor size.
Electrolytic tin-plating process
Bell entry from 10 mm²
