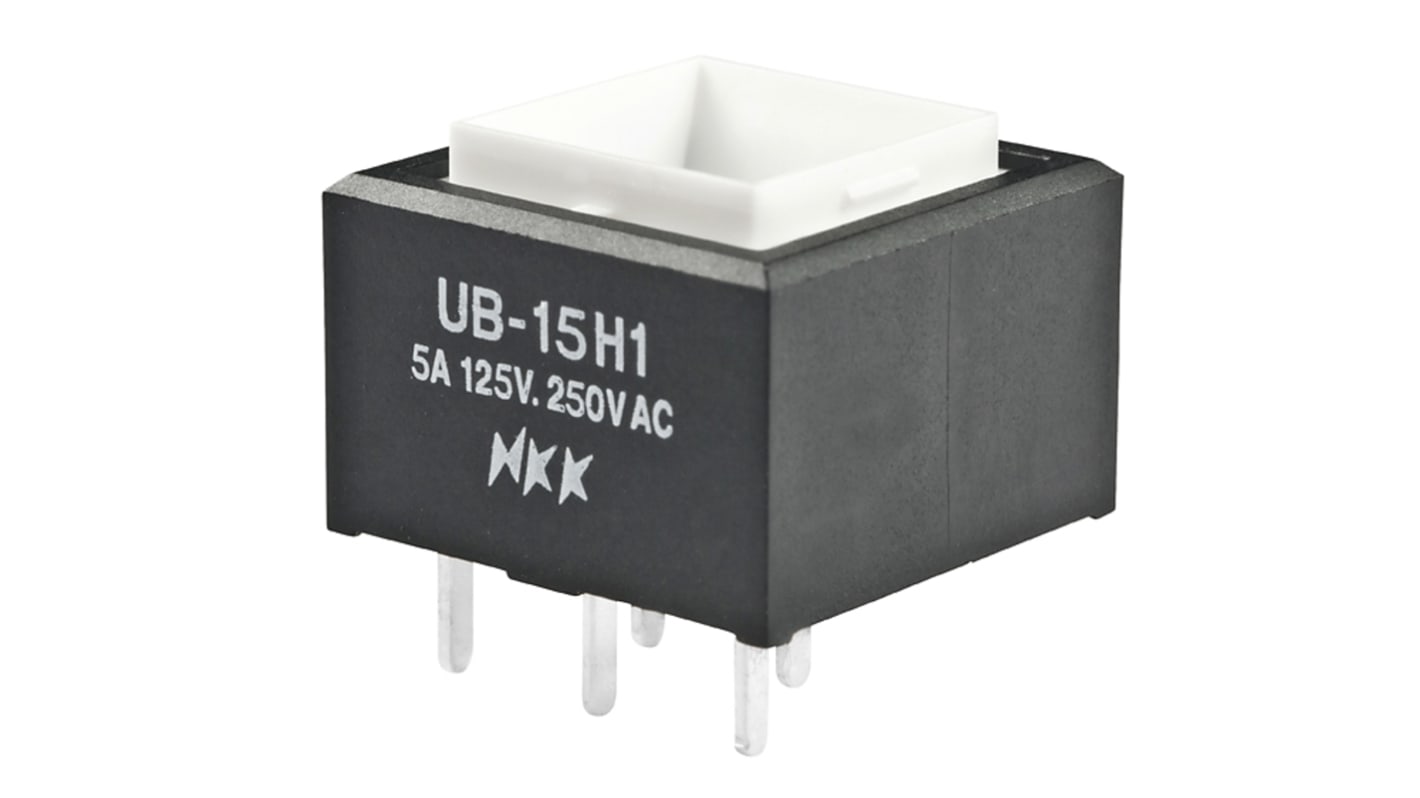

NKK Switches UB Series Illuminated Push Button Switch, On-On, Through Hole, SPDT, Amber LED, 30 V dc 250 V ac
- RS Stock No.:
- 181-7061
- Mfr. Part No.:
- UB15SKW035D
- Brand:
- NKK Switches
Bulk discount available
Subtotal (1 unit)*
$18.36
(exc. GST)
$20.20
(inc. GST)
Add 4 units to get free delivery
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | $18.36 |
| 5 - 49 | $17.64 |
| 50 + | $16.91 |
*price indicative
- RS Stock No.:
- 181-7061
- Mfr. Part No.:
- UB15SKW035D
- Brand:
- NKK Switches
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NKK Switches | |
| Switch Operation | On-On | |
| Product Type | Push Button Switch | |
| Illuminated | Yes | |
| Series | UB | |
| Mount Type | Through Hole | |
| Contact Configuration | SPDT | |
| Terminal Type | PC Terminal | |
| LED Colour | Amber | |
| Contact DC Voltage | 30V dc | |
| Minimum Operating Temperature | -25°C | |
| Actuator Style | Plunger | |
| Contact AC Voltage | 250V ac | |
| Switch Configuration | On-On | |
| Maximum Operating Temperature | 50°C | |
| Switch Contact Current | 5 A | |
| Standards/Approvals | UL, cULus, CSA | |
| Select all | ||
|---|---|---|
Brand NKK Switches | ||
Switch Operation On-On | ||
Product Type Push Button Switch | ||
Illuminated Yes | ||
Series UB | ||
Mount Type Through Hole | ||
Contact Configuration SPDT | ||
Terminal Type PC Terminal | ||
LED Colour Amber | ||
Contact DC Voltage 30V dc | ||
Minimum Operating Temperature -25°C | ||
Actuator Style Plunger | ||
Contact AC Voltage 250V ac | ||
Switch Configuration On-On | ||
Maximum Operating Temperature 50°C | ||
Switch Contact Current 5 A | ||
Standards/Approvals UL, cULus, CSA | ||
- COO (Country of Origin):
- PH
5A Power Level & 0.4VA Logic Level, Snap-in and PCB Mount, LED Illumination, Square and Rectangular Cap Options, Full Face and Spot Illumination
Wide selection of illumination effects is achieved with single and bicolour LEDs, in flat, beveled, or sculptured caps. LED colours include red, amber, green, white, blue, and orange.
Non-illuminated models available.
Combination of PCB mount ability and short body allows for use in compact applications.
