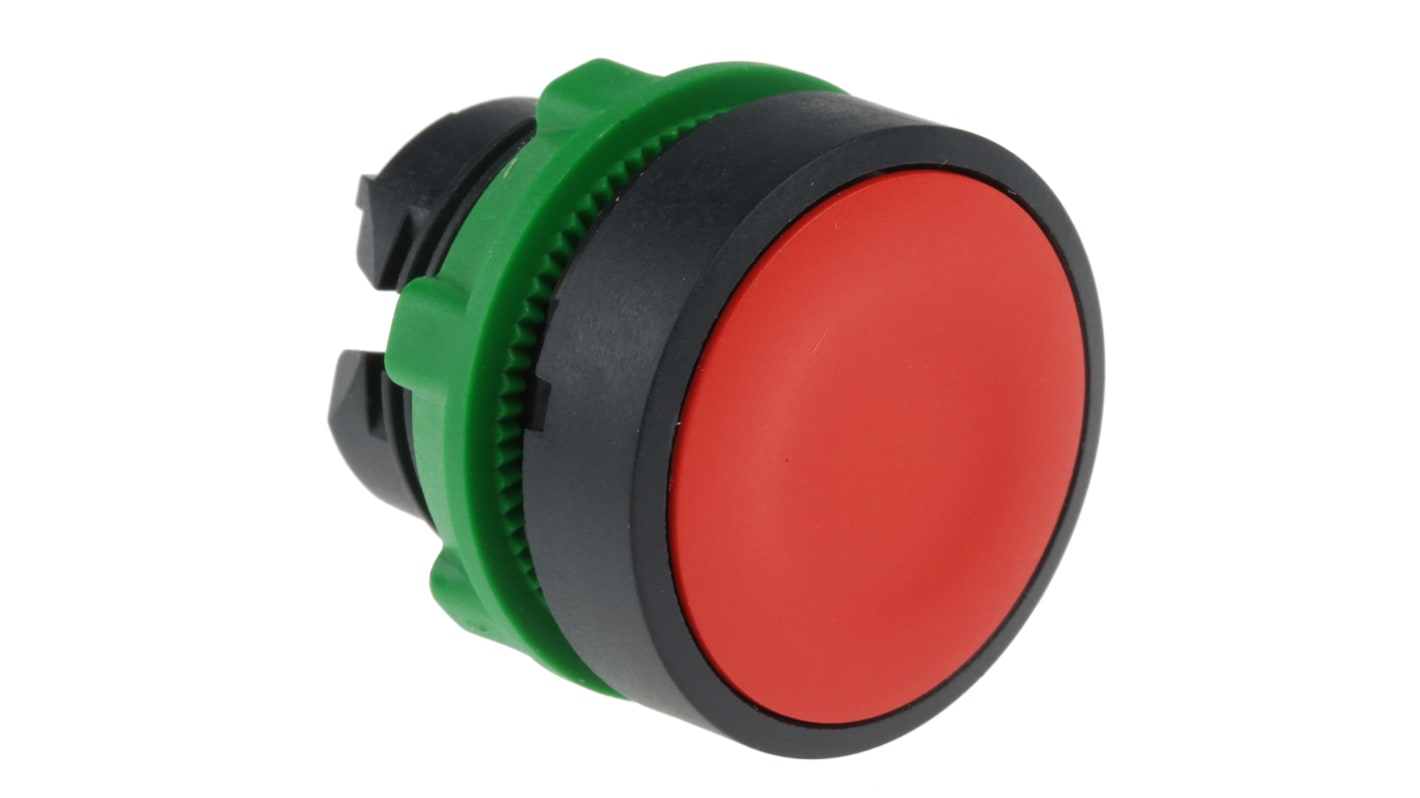

Schneider Electric Harmony XB5 Series Red Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

RS Stock No.:: 331-0221
Mfr. Part No.:: ZB5AA4
Brand:: Schneider Electric

Schneider Electric Harmony XB5 Series Red Spring Return Push Button Head, 22mm Cutout, IP66, IP67, IP69K

Price (ex. GST) Each

$28.40

(exc. GST)

$31.24

(inc. GST)

18 In AU stock for next working day delivery*

16 In AU stock for next working day delivery

273 In Global stock for delivery within 10 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $80.00 ex GST

Units	Per unit
1 +	$28.40

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 331-0221
Mfr. Part No.:: ZB5AA4
Brand:: Schneider Electric

Pushbutton Head - Flush / Booted Flush / Projecting

Suitable for Harmony XB5 plastic bodies

Standards

IEC, JIS

Approvals

UL, CSA

Schneider Electric Harmony XB5 Series Push Button HeadPush Button Head, IP66, IP67, and IP69K , -40 to +70 °C - ZB5AA4

This push-button head by Schneider Electric is a high-quality product designed for non-illuminated push-button applications. With a flush design, red colour, and being made of durable plastic, this push-button head is a dependable solution. Its 22mm mounting diameter and spring return mechanism make it ideal for various industrial uses.

Features & Benefits

• Crafted from dark grey plastic, this push-button head has a flush red design with a 22mm mounting diameter
• The spring return mechanism ensures reliable operation and long-lasting durability
• Suitable for use with XALD and XALK 1...5 cut-outs, this push-button head offers versatile installation options
• With an IP66 protection rating, this push-button head is resistant to dust and water ingress, ensuring reliable performance in challenging environments

Applications

• Ideal for use in control panels and industrial machinery for start/stop functions
• Suitable for use in automation systems for process control and monitoring

Can This push-button head be used in outdoor applications?

Yes, the Schneider Electric push-button head is rated IP66, making it suitable for outdoor use in various industrial applications.

Will This push-button head fit existing control panels with 22mm cutouts?

Yes, it is designed to fit standard 22mm mounting diameters, making it compatible with most control panels.

Is the red colour of This push-button head customisable?

No, the push-button head comes with a standard flush red colour that cannot be customised.

Can This push-button head be used in hazardous environments?

The push-button head is not specifically rated for hazardous environments, so it is recommended to check compatibility before use.

Is the push-button head compatible with different screw clamp terminal types?

Yes, it is designed to work with screw clamp terminals, offering flexibility in wiring options.

Schneider Electric ZB5-A (Harmony®) 22mm

Attribute	Value
Series	Harmony XB5
Cutout Diameter	22mm
Push Button Colour	Red
Push Button Shape	Round
Push Button Actuation	Spring Return
Push Button Style	Round
Push Button Material	Plastic
IP Rating	IP66, IP67, IP69K
Push Button Marking	Unmarked
Push Button Diameter	28.5mm
Illuminated	No
Better World Verification	Green Premium
Better World Product	Yes
Mounting Type	Front
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Terminal Type	Screw Clamp
