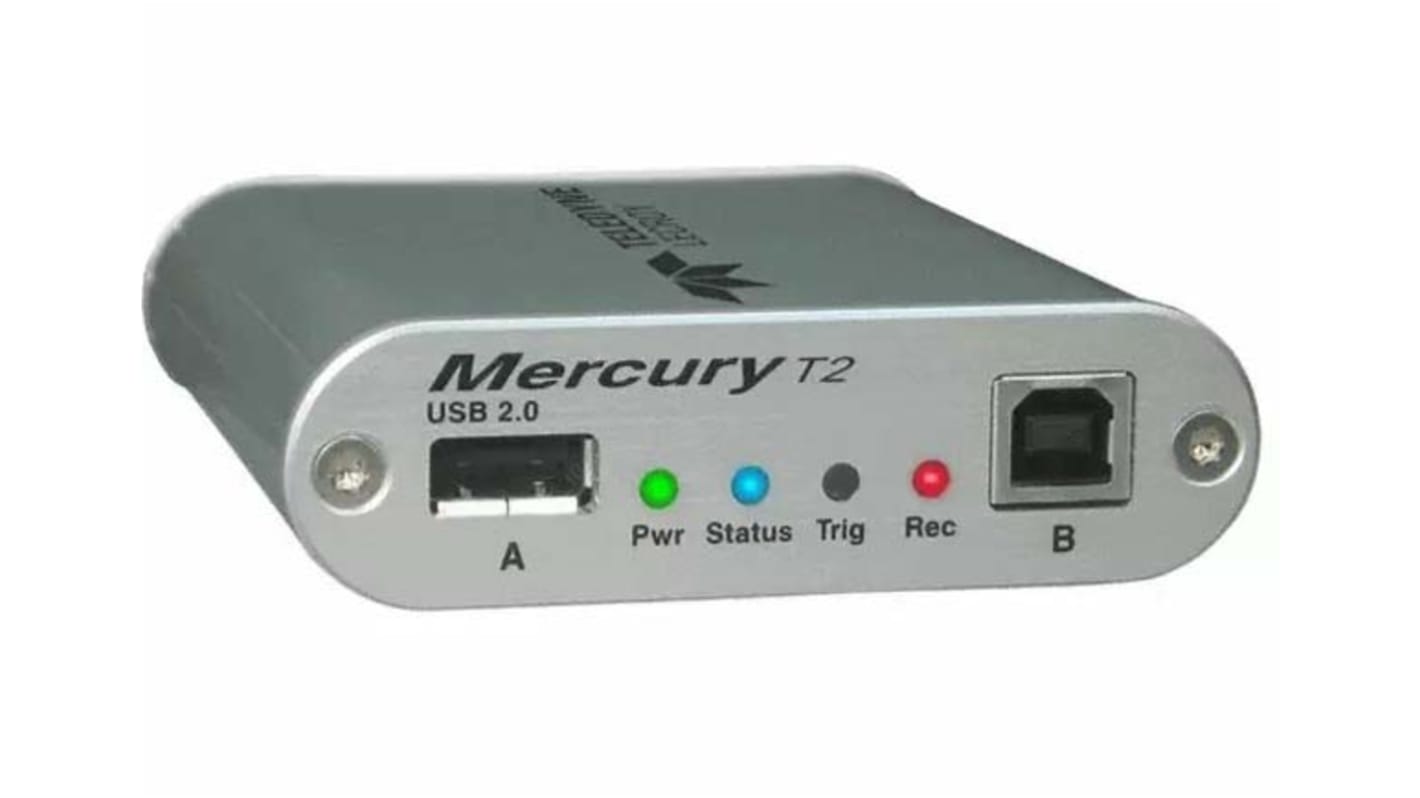

Teledyne LeCroy USB-TMS2-M01-X Protocol Analyser USB 2.0

RS Stock No.:: 144-4387
Mfr. Part No.:: USB-TMS2-M01-X
Brand:: Teledyne LeCroy

Teledyne LeCroy USB-TMS2-M01-X Protocol Analyser USB 2.0

On back order for despatch 19/07/2024, delivery within 10 working days from despatch date.

Added

Price (ex. GST) Each

$2,313.89

(exc. GST)

$2,545.28

(inc. GST)

Units	Per unit
1 +	$2,313.89

RS Stock No.:: 144-4387
Mfr. Part No.:: USB-TMS2-M01-X
Brand:: Teledyne LeCroy

Technical data sheets

Mercury T2 Protocol Analyser Data Sheet

Legislation and Compliance

RoHS Status: Exempt

COO (Country of Origin):: US

Product Details

Teledyne LeCroy Protocol Analyser

The Teledyne LeCroy protocol analyser is a small and affordable hardware-based USB 2.0 device that combines the de facto standard CATC Trace display with powerful analysis features. This pocket-sized analyser is bus-powered and is controlled using any Windows PC. This analyser provides many of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy's top-of-the-line USB analysers with the help of comprehensive triggering.

Features and Benefits

Supports USB 2.0
Recording memory of 256 MB
High impedance probe
Advanced triggering feature isolates important traffic, specific errors or data patterns
Standard trigger events are packet identifier, token pattern, frame pattern, device request, data pattern and bus
Extensive decodes mass storage, Bluetooth HCI, hub, PTP/Still image, printer, Human interface devices (HID) and audio
Hardware filtering
Event reporting

Applications

SCADA engineering and system integration
Industrial automation
Network engineering
Service and maintenance
Field services

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Protocols Supported	USB 2.0
Model Number p	USB-TMS2-M01-X
