Teledyne LeCroy USB-T0S2-A01-X Protocol Analyser USB 2.0

RS Stock No.:: 144-4392
Mfr. Part No.:: USB-T0S2-A01-X
Brand:: Teledyne LeCroy

Teledyne LeCroy USB-T0S2-A01-X Protocol Analyser USB 2.0

Price (ex. GST) Each

$6,708.61

(exc. GST)

$7,379.47

(inc. GST)

On back order for despatch 10/01/2025, delivery within 10 working days from despatch date.*

* Delivery dates may change based on your chosen quantity and delivery address.

Units	Per unit
1 +	$6,708.61

RS Stock No.:: 144-4392
Mfr. Part No.:: USB-T0S2-A01-X
Brand:: Teledyne LeCroy

USB-T0S2-A01-X Datasheet

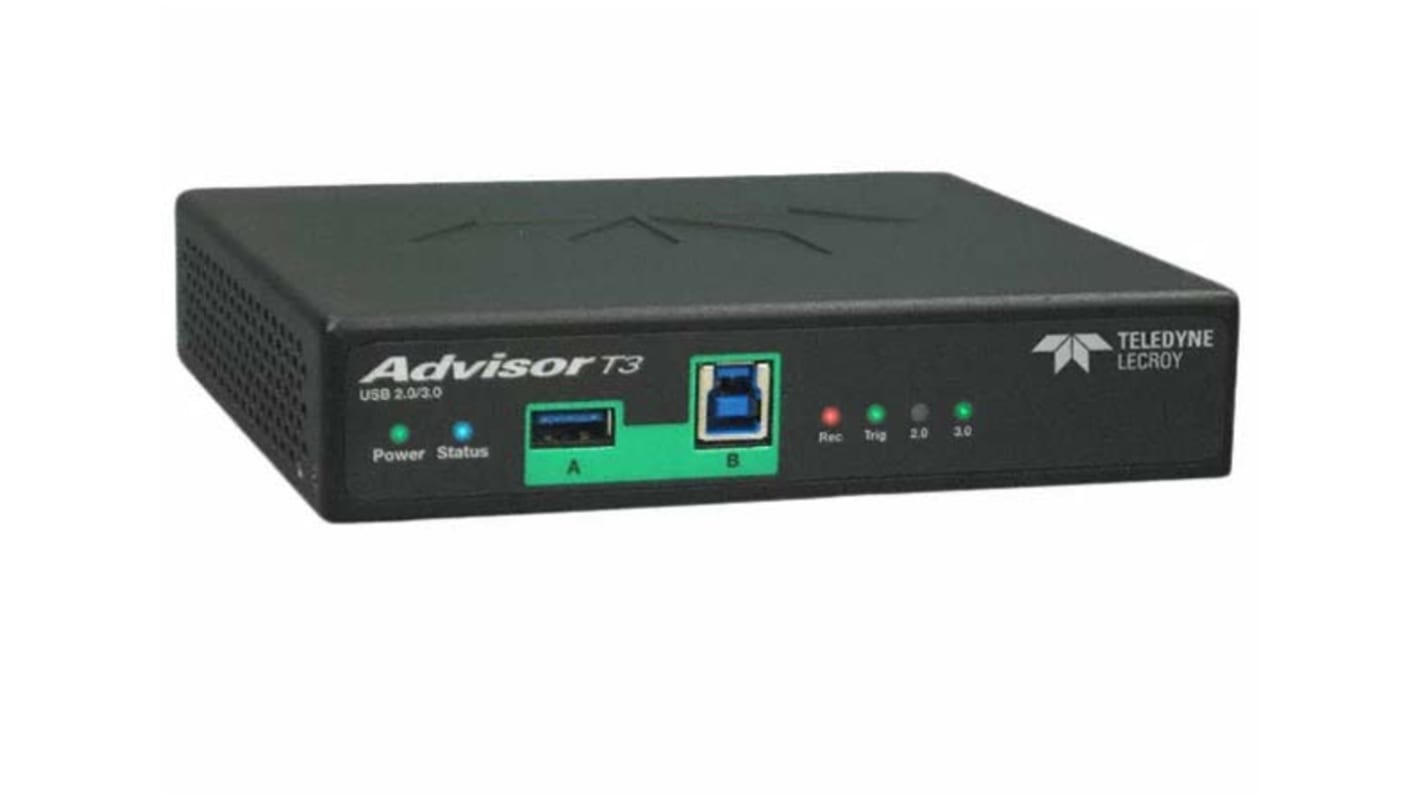

LeCroy USB-TOS2-A01-X USB Advisor T3 USB 2.0 Standard Protocol Analyser System

Teledyne LeCroy’s Advisor T3 is an ultra portable SuperSpeed USB analyser that delivers market leading accuracy at an extraordinary price. Designed to put precision USB protocol test tools in the hands of every engineer, the Advisor includes all the essential features for SuperSpeed USB debug.

Host Machine Minimum Requirements: Microsoft Windows® XP, Windows Vista, Windows 7, Server 2003 or Server 2008; 2 GB of RAM; hard drive with at least 200 MB of free space for the installation of the software and more space for recorded data; display with resolution of 1024 x 768 with at least 16-bit colour depth; USB 2.0 port or 100/1000 Mbps Ethernet

Recording Memory Size: 2 GB

Data Rates Supported: 1.2 Mbps, 12 Mbps, 480 Mbps, 5 Gb/s

Recording Channels: 1

Data Bus Interface: Half duplex differential (USB 2.0). Dual simplex differential (USB 3.0)

Form Factor: Enclosed Chassis

Front Panel Indicators: Platform LEDs: Power, Status. Analyser LEDs: Rec, 2.0, 3.0, Trig

Front Panel Connectors: Analyser—one (1) USB 2.0/3.0 recording channel with USB 3.0 "A" and "B" connectors

Carrying Case: Included

Dimensions (W x H x D): 15 x 3 x 12.7 cm (6” x 1.25” x 5")

Weight: 0.23 Kg (0.5 lbs)

Power Requirements: 100-240 V, 50 to 60 Hz (universal input), 1.0A

External Trigger: Trigger IN/OUT and Sync MicroD (proprietary)

Environmental: Operating Temperature: 0 to 55°C (32 to 131°F). Non-operating: -20 to 80°C (-4 to 176°F). Operating Humidity: 10% to 90% RH (non-condensing)

Features and Benefits

CATC Trace Analysis Software - Faster interpretation and debug of USB traffic

Portable and Convenient - Bus Powered analyzer works with any Windows-based PC

AutoDetect USB 2.0 Speeds - Automatically detects low, full, and high speed connections

OTG (On-The-Go) Support - Record and analyze HNP & SRP, including the capture of VBus and Data line pulses

Advanced Triggering - Isolates important traffic, specific errors or data patterns

Extensive Decodes - Mass Storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Devices (HID), Audio and Communication

Application

• Software development in new product designs

Attribute	Value
Protocols Supported	USB 2.0
Model Number p	USB-T0S2-A01-X
