Teledyne LeCroy USB-TMA2-M01-X Protocol Analyser USB 2.0

RS Stock No.:: 144-4386
Mfr. Part No.:: USB-TMA2-M01-X
Brand:: Teledyne LeCroy

Teledyne LeCroy USB-TMA2-M01-X Protocol Analyser USB 2.0

1 / 1

Subtotal (1 unit)**

$2,933.94

(exc. GST)

$3,227.33

(inc. GST)

1 In Global stock for delivery within 10 working day(s)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over $60.00 ex GST

Real time qty checker

Units	Per unit
1 +	$2,933.94

**price indicative

RS Stock No.:: 144-4386
Mfr. Part No.:: USB-TMA2-M01-X
Brand:: Teledyne LeCroy

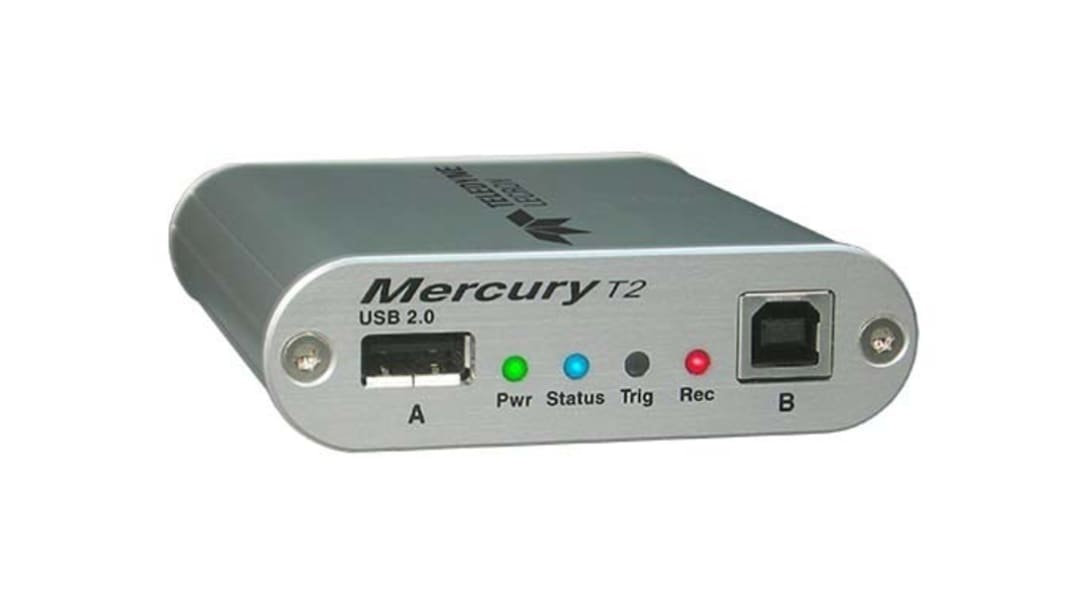

Teledyne LeCroy USB-TMA2-M01-X USB Analyser for USB 2.0 Advanced Feature Set

The Teledyne LeCroy Mercury T2 is the industry’s smallest, most affordable hardware-based USB 2.0 protocol analyser that combines the de-facto standard CATC Trace display with the very latest USB class decoding. The Mercury T2 fits in a shirt pocket yet provides much of the same lab quality protocol analysis capabilities offered in Teledyne LeCroy’s top-of-the-line USB analysers.

View and Understand USB Protocol

Featuring the industry-leading CATC Trace™ expert analysis software, the Mercury T2 system provides an easy-to-use display that graphically decodes logical protocol events. With the Standard or Advanced edition, all protocol layers can be expanded to show the underlying transactions and packets. Tooltips help explain protocol events making it easier for non-experts to identify errors.

Real Time Triggering

Isolating specific protocol events with real time triggering is essential to capture intermittent problems. The Mercury T2 provides sophisticated triggering with drag-and-drop selections for PID type, data patterns, standard requests, errors, and bus events. The Mercury T2 features 256 MB of on-board memory and also supports spool-todisk capture for extended recording

Features and Benefits

Portable and Affordable - Compact, bus-powered system measures 3.0” x 3.5”, weighs 5 oz.

Supports USB 2.0 - Capable of capturing all USB speeds up to 2.0 including OTG (On-the-Go)

256 MB Recording Memory - Extend capture time with spool-to-disk recording

High Impedance probe - Non-intrusive probe preserves real-world signal and timing conditions

Advanced Triggering - Isolates important traffic, specific errors or patterns

Extensive Decodes - Mass storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Device (HID), Audio, Video and Communication

Hardware Filtering - Automatically exclude non-essential traffic

Event Reporting - Quickly identify and track error rates, abnormal bus activity or timing conditions

Quickly identify and track error rates, abnormal bus activity or timing conditions

Applications

Software development in new product designs.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Teledyne LeCroy
	Protocols Supported	USB 2.0
	Model Number p	USB-TMA2-M01-X

	Select all
	Brand Teledyne LeCroy
	Protocols Supported USB 2.0
	Model Number p USB-TMA2-M01-X
