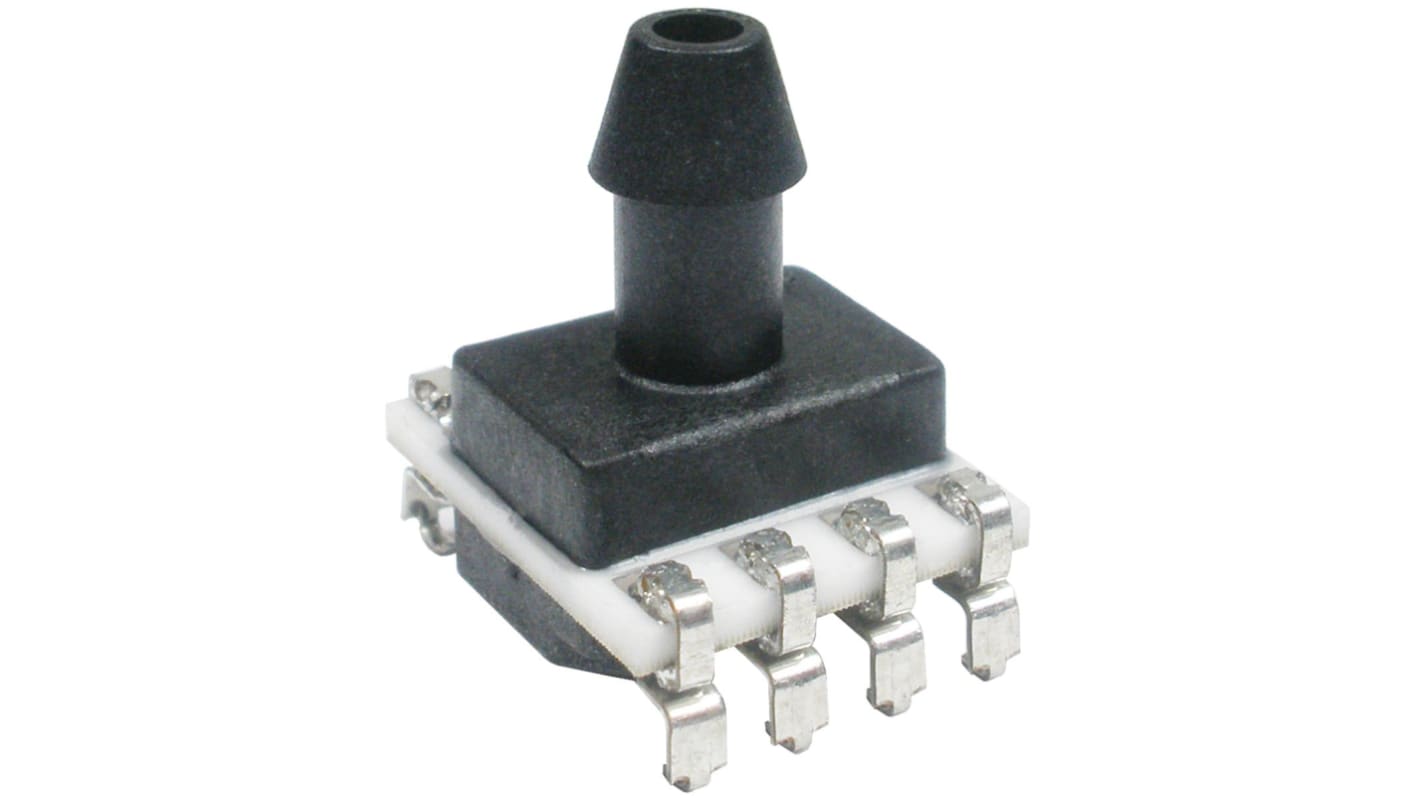

Honeywell Technologies SSCMANV015PA2A3 Absolute Pressure SensorSurface 8 SMT

This absolute pressure sensor converts absolute pressure into an electrical signal for use in low-voltage systems. It is intended for surface-mounted assemblies and measures pressures from atmospheric up to 15 psi, while tolerating transient loads up to 30 psi. The device operates across a wide temperature range and connects via a single axial barbed port, making it suitable for Compact electronic modules where stable absolute pressure readings are required.

• ±0.25% accuracy delivers precise measurement for control loops
• 3.3 to 5V operation supports low-voltage electronics
• Surface-mount package allows automated PCB assembly
• 30 psi overload capacity protects against pressure spikes
• -40 to 85°C range maintains performance across environments

• Suitable for embedded pneumatic monitoring in instrumentation
• Ideal for environmental chambers requiring absolute measurement
• Used with low-voltage data acquisition systems
• Can be used for medical device pressure-monitoring modules
• Used for leak detection in Compact fluid systems

It requires a supply between 3.3V and 5V and presents signals via an 8‑pin SMT footprint.

It withstands brief overloads up to 30 psi without functional degradation.

Fit it as a surface-mounted component using standard SMT assembly processes.

A single axial barbed port provides the pressure input for tubing attachment.
