Honeywell Technologies ABPMRRV060MGAA5 Pressure SensorBoard 6 SMT
- RS Stock No.:
- 214-1426
- Mfr. Part No.:
- ABPMRRV060MGAA5
- Brand:
- Honeywell

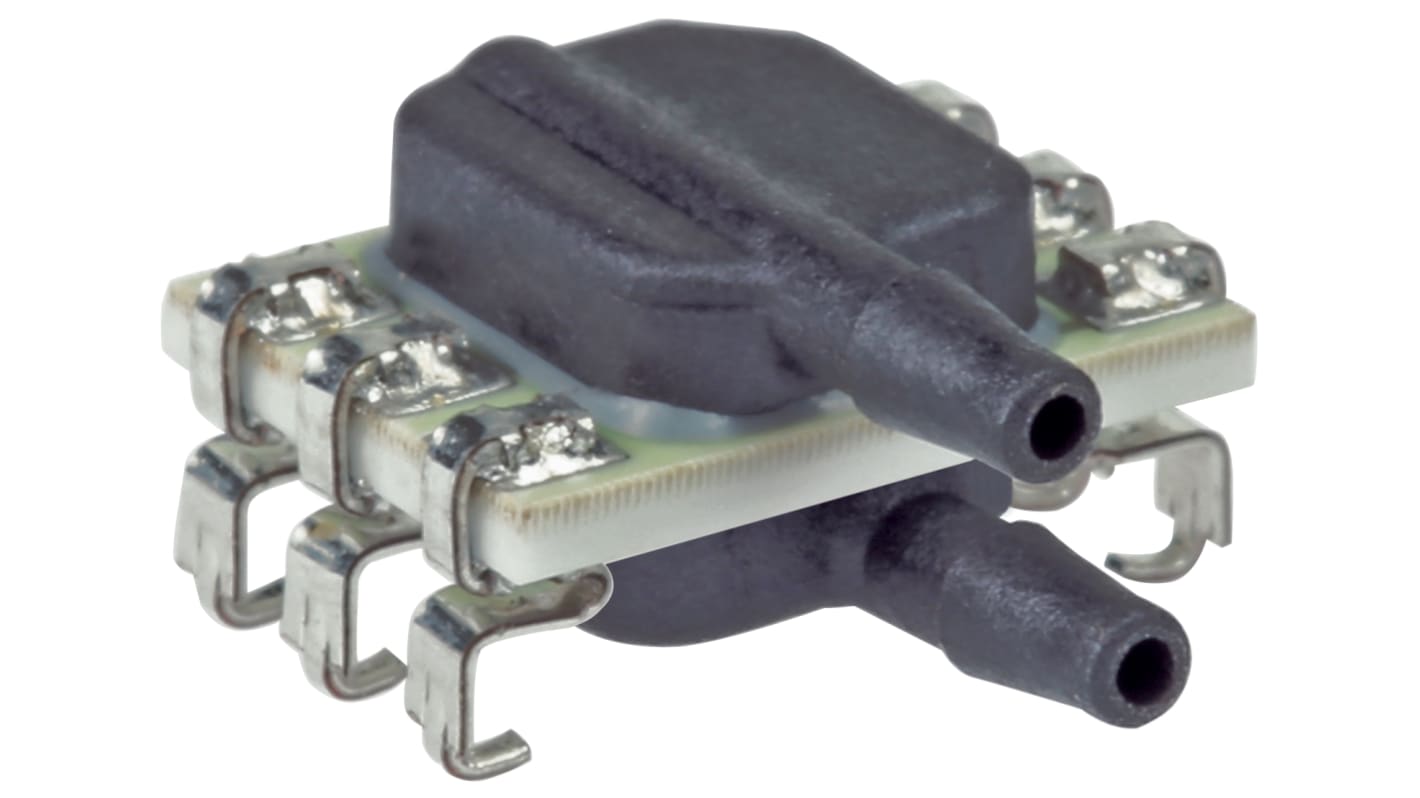

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 50 units)*
$2,618.55
(exc. GST)
$2,880.40
(inc. GST)
FREE delivery for orders over $80.00 ex GST
In Stock
- Plus 50 unit(s) shipping from 23 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 50 - 50 | $52.371 | $2,618.55 |
| 100 - 150 | $51.062 | $2,553.10 |
| 200 + | $50.277 | $2,513.85 |
*price indicative
- RS Stock No.:
- 214-1426
- Mfr. Part No.:
- ABPMRRV060MGAA5
- Brand:
- Honeywell
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Honeywell | |
| Product Type | Pressure Sensor | |
| Sensor Type | Piezoresistive Pressure Sensor | |
| Maximum Overload Pressure | 2000mbar | |
| Mount Type | Board | |
| Package Type | SMT | |
| Pin Count | 6 | |
| Minimum Supply Voltage | -0.3V | |
| Maximum Operating Pressure | 60 mbar | |
| Maximum Supply Voltage | 5V | |
| Accuracy | ±0.25 % | |
| Port Type | Dual Radial Barbed | |
| Maximum Operating Temperature | +85°C | |
| Height | 10.63mm | |
| Standards/Approvals | BPA Free, LFGB, NSF-169 | |
| Length | 7.3mm | |
| Width | 6.3mm | |
| Series | ABP | |
| Minimum Operating Pressure | 0mbar | |
| Automotive Standard | ISO 9001 | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Honeywell | ||
Product Type Pressure Sensor | ||
Sensor Type Piezoresistive Pressure Sensor | ||
Maximum Overload Pressure 2000mbar | ||
Mount Type Board | ||
Package Type SMT | ||
Pin Count 6 | ||
Minimum Supply Voltage -0.3V | ||
Maximum Operating Pressure 60 mbar | ||
Maximum Supply Voltage 5V | ||
Accuracy ±0.25 % | ||
Port Type Dual Radial Barbed | ||
Maximum Operating Temperature +85°C | ||
Height 10.63mm | ||
Standards/Approvals BPA Free, LFGB, NSF-169 | ||
Length 7.3mm | ||
Width 6.3mm | ||
Series ABP | ||
Minimum Operating Pressure 0mbar | ||
Automotive Standard ISO 9001 | ||
Minimum Operating Temperature -40°C | ||
Honeywell ABP Series Gauge Pressure Sensor, 60 mbar Maximum Operating Pressure, ±0.25% Accuracy - ABPMRRV060MGAA5
This gauge pressure sensor measures pressure relative to ambient and provides a ratiometric analogue or digital output for board-mounted systems. Calibrated and temperature-compensated via an on-board ASIC, it is suitable for reading low-range pressures with Rapid update rates and can be configured for dry gases or liquid media operation depending on port protection.
Features and Benefits:
• ±0.25%FSS accuracy improves measurement fidelity
• Total Error Band ±1.5%FSS over compensated range
• Operating temperature -40°C to 85°C for harsh conditions
• 2kHz digital and 1kHz analogue output update rates
• Single-supply operation at 3.3V or 5.0V for flexible designs
• Sleep mode reduces power consumption to μA levels
• Total Error Band ±1.5%FSS over compensated range
• Operating temperature -40°C to 85°C for harsh conditions
• 2kHz digital and 1kHz analogue output update rates
• Single-supply operation at 3.3V or 5.0V for flexible designs
• Sleep mode reduces power consumption to μA levels
Applications
• Used for ventilator and patient monitoring pressure feedback
• Suitable for HVAC differential and flow monitoring systems
• Ideal for pneumatic control and valve position sensing
• Can be used for commercial appliance pressure measurement
• Used with wet-wet differential sensing when gel protected
• Suitable for HVAC differential and flow monitoring systems
• Ideal for pneumatic control and valve position sensing
• Can be used for commercial appliance pressure measurement
• Used with wet-wet differential sensing when gel protected
What media can be applied to the input ports when using the liquid option?
The liquid option includes a silicone-based gel over the electronics under Port 1 enabling use with non-corrosive liquids such as water and saline and permitting condensation exposure.
How does the device handle overpressure and burst conditions?
Overpressure and burst limits depend on range, for a ±60 mbar differential gauge the overload protection is 2000 mbar and specified burst pressures are listed per port in the range tables.
What digital interfaces and resolutions are available?
Digital outputs support I2C or SPI with 12-bit resolution and typical digital counts aligned to defined output percentages over the transfer function.
Which materials contact the measured media in the dry gases option?
Wetted materials include high-temperature polyamide for ports, alumina ceramic substrate, silicon, gold and glass for internal components compatible with non-corrosive gases.
What reliability and lifecycle expectations exist for cyclical use?
The sensor life is specified as a minimum of 1 million pressure cycles, with vibration and shock ratings of 15 g and 100 g respectively.
