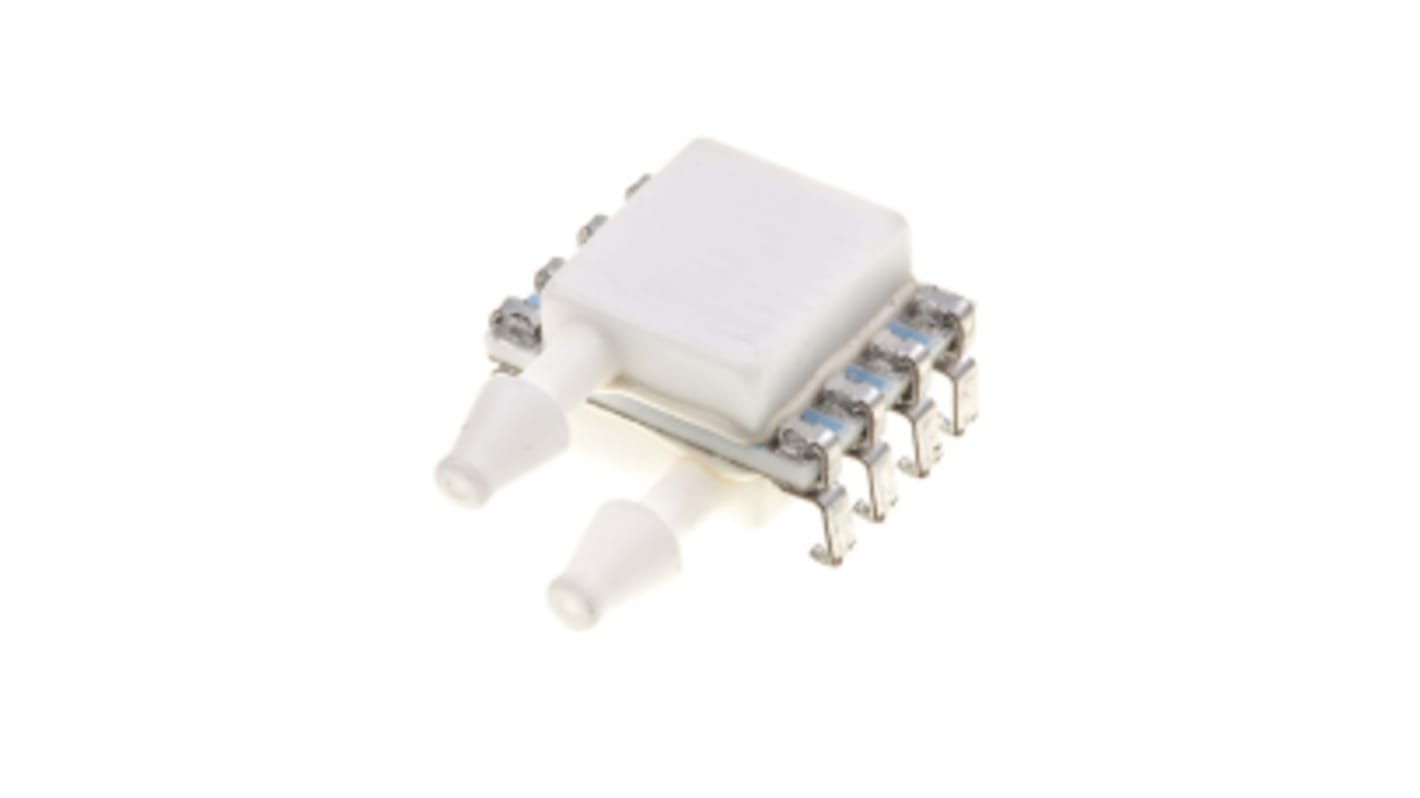

The MS4515DO is a small, ceramic based, PCB mounted pressure transducer from Measurement Specialties. The transducer is built using the latest CMOS sensor conditioning circuitry to create a low cost, high performance digital output pressure (14bit) and temperature (11bit) transducer designed to meet the strictest requirements from OEM customers. The MS4515DO is fully calibrated and temperature compensated with a total error band (TEB) of less than 1.0 over the compensated range. The sensor operates from single supply of either 3.3 or 5.0VDC and requires a single external component for proper operation.

PCB Mounted Digital Output Transducer
Combination Temperature and Pressure
Pressure Ranges from 2 to 30 inches H2O
I2C or SPI Protocol
Differential & Gage
Temperature Compensated

Select all	Attribute	Value
	Brand	TE Connectivity
	Sensor Type	Differential Pressure Sensors
	Maximum Overload Pressure	300psi
	Mounting Type	PCB Mount
	Package Type	Dual Sideport
	Pin Count	8
	Dimensions	17.4 x 12.4 x 7.2mm
	Maximum Operating Pressure	20psi
	Maximum Operating Supply Voltage	3.3 V
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-10 °C

	Select all
	Brand TE Connectivity
	Sensor Type Differential Pressure Sensors
	Maximum Overload Pressure 300psi
	Mounting Type PCB Mount
	Package Type Dual Sideport
	Pin Count 8
	Dimensions 17.4 x 12.4 x 7.2mm
	Maximum Operating Pressure 20psi
	Maximum Operating Supply Voltage 3.3 V
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -10 °C

TE Connectivity Differential Pressure Sensor, 20psi Operating Max, PCB Mount, 8-Pin, 300psi Overload Max, Dual Sideport

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
