TE Connectivity Absolute Pressure SensorSurface 8 Surface Mount

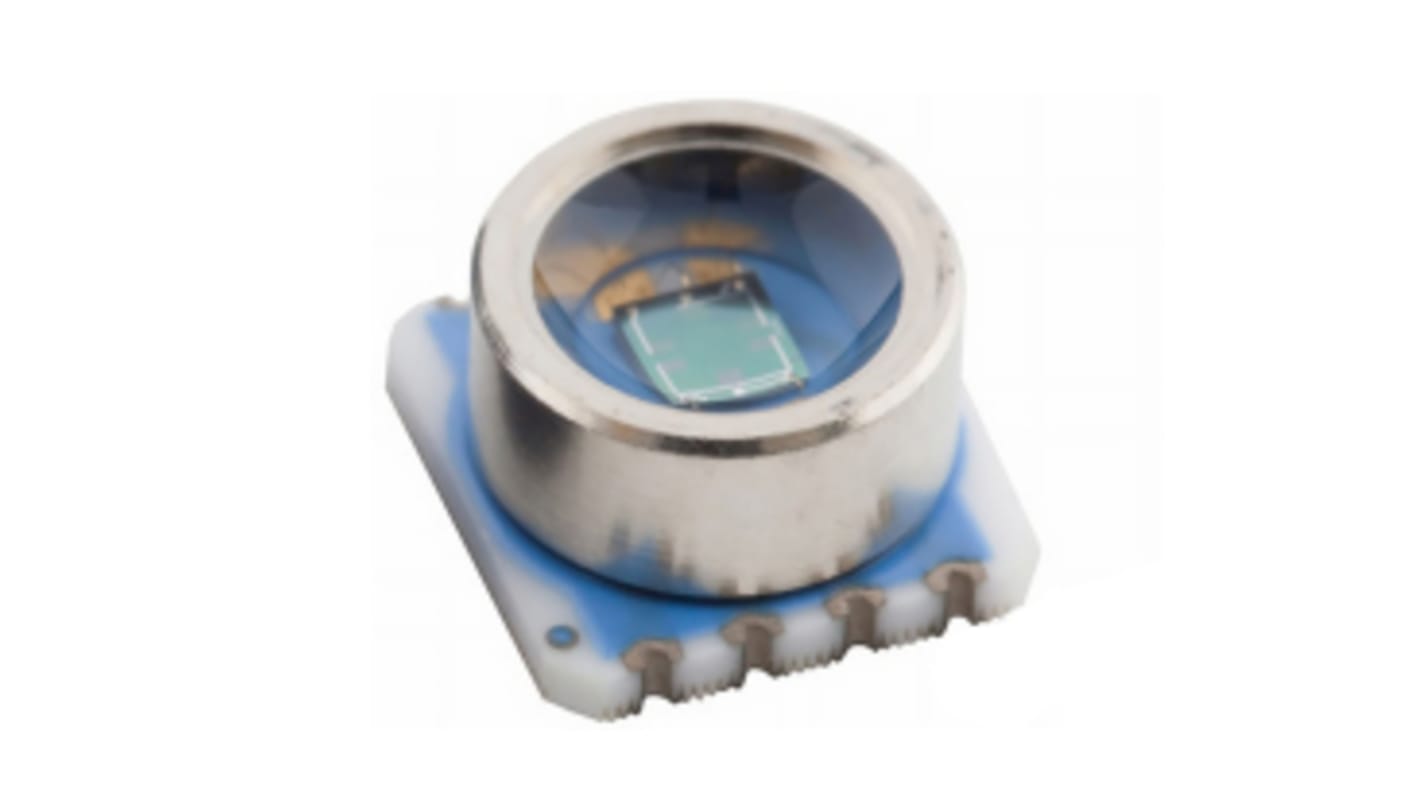

This image is representative of the product range

View all Pressure Sensor ICs
Bulk discount available
View bulk pricing options

Subtotal (1 tube of 80 units)*

$4,007.92

(exc. GST)

$4,408.72

(inc. GST)

Add to Basket
Select or type quantity

Temporarily out of stock
  • Shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
RS Stock No.:
146-8187
Mfr. Part No.:
325401000-00
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Absolute Pressure Sensor

Maximum Overload Pressure

10bar

Sensor Type

Absolute Pressure Sensor

Mount Type

Surface

Package Type

Surface Mount

Pin Count

8

Maximum Operating Pressure

1 bar

Maximum Supply Voltage

20V

Maximum Operating Temperature

125°C

Standards/Approvals

ISO 2281

Maximum Output Voltage

180mV

Series

MS54XX

Height

6.2mm

Length

6.4mm

Minimum Operating Pressure

0bar

Minimum Output Voltage

120V

Minimum Operating Temperature

-40°C

Automotive Standard

No

COO (Country of Origin):
CH
The MS54XX SMD pressure sensor series is designed for pressure sensor systems with highest demands on resolution and accuracy. The device consists of a silicon micromachined pressure sensor die mounted on a 6.2 x 6.4 mm ceramic carrier. The MS54XX can be delivered in a high sensitivity version giving a maximal output voltage or in a high linearity version. Both versions provide an output voltage directly proportional to the applied pressure.

1, 7, 12, and 70 bar absolute pressure range

Uncompensated

Piezo resistive silicon micromachined sensor

Miniature surface mount

Ceramic carrier

Low noise, high sensitivity, high linearity
