Infineon High Side, High Side Power Switch IC 14-Pin, PG-TSDSO-14

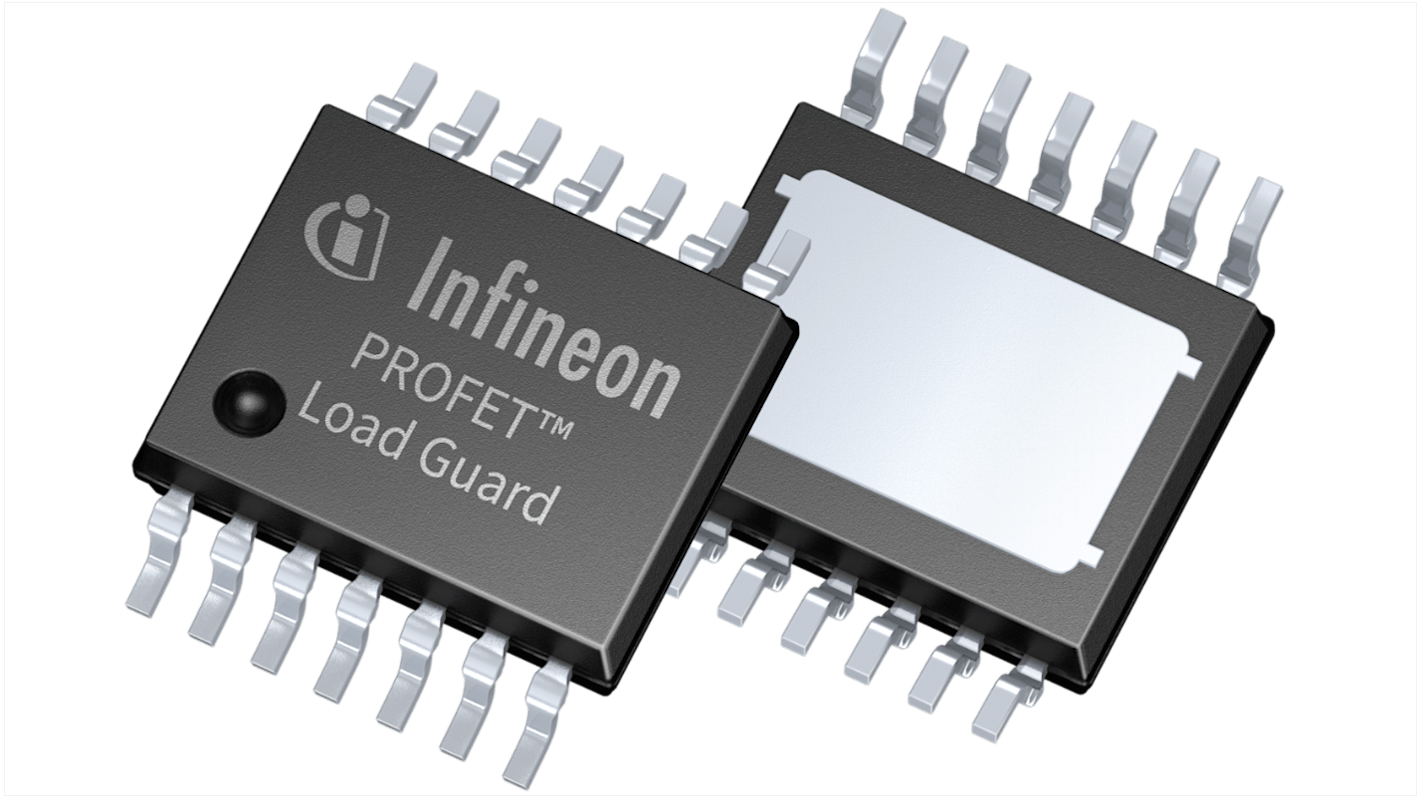

This image is representative of the product range

View all Power Switch ICs

Subtotal (1 reel of 3000 units)*

$2,757.00

(exc. GST)

$3,033.00

(inc. GST)

Add to Basket
Select or type quantity
Orders below $60.00 (exc. GST) cost $12.95.
Temporarily out of stock
  • Shipping from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +$0.919$2,757.00

*price indicative

RS Stock No.:
262-5820
Mfr. Part No.:
BTG70501EPLXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Power Switch Type

High Side

Product Type

Power Switch IC

Power Switch Topology

High Side

Switch On Resistance RdsOn

0.05mΩ

Package Type

PG-TSDSO-14

Pin Count

14

Maximum Supply Voltage

28V

Operating Current

4.5mA

Standards/Approvals

RoHS

Automotive Standard

AEC-Q100 Grade 1

Series

BTG7050-1EPL

The Infineon smart high side switch, providing protection functions and enhanced diagnosis capabilities. It offers an adjustable current limitation to offer higher reliability for protecting the system. In case of an short circuit to ground the PCB traces, connectors, as well as loads, can be protected.

High-side switch with diagnosis and embedded protection

Switch ON capability while inverse current condition

Capacitive load switching mode

Green product, RoHS compliant
