Infineon ITS4130QEPDXUMA1 High Side 4, High Side Power Switch IC 14-Pin, TSDSO-14
- RS Stock No.:
- 229-1864
- Mfr. Part No.:
- ITS4130QEPDXUMA1
- Brand:
- Infineon

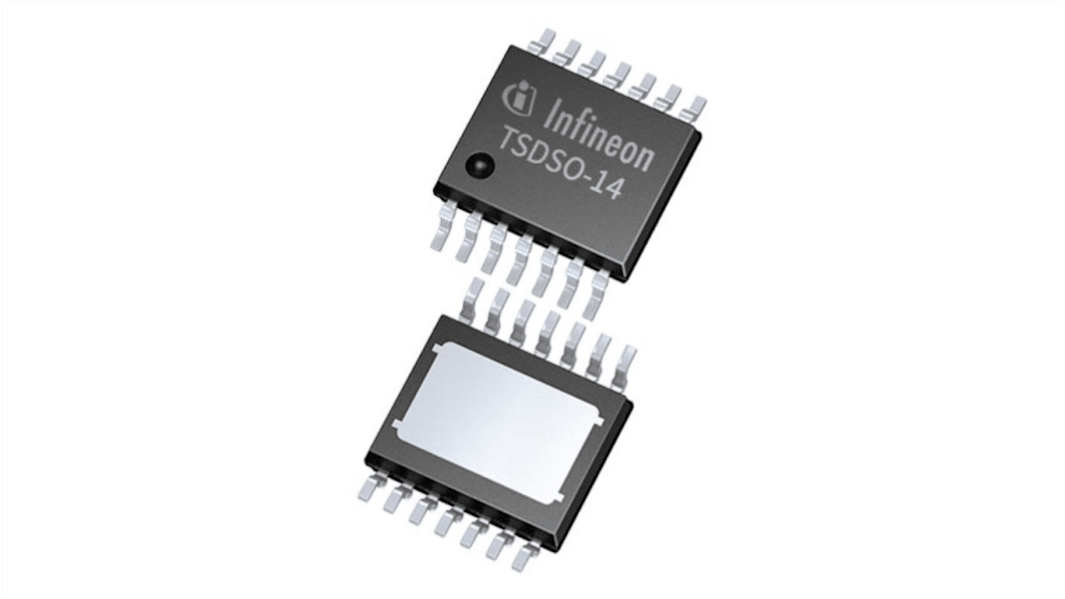

This image is representative of the product range
Bulk discount available
Subtotal (1 pack of 2 units)*
$12.39
(exc. GST)
$13.628
(inc. GST)
FREE delivery for orders over $60.00 ex GST
In Stock
- 4,834 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | $6.195 | $12.39 |
| 10 - 98 | $6.09 | $12.18 |
| 100 - 248 | $5.985 | $11.97 |
| 250 - 498 | $5.885 | $11.77 |
| 500 + | $5.785 | $11.57 |
*price indicative
- RS Stock No.:
- 229-1864
- Mfr. Part No.:
- ITS4130QEPDXUMA1
- Brand:
- Infineon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Power Switch IC | |
| Power Switch Type | High Side | |
| Power Switch Topology | High Side | |
| Switch On Resistance RdsOn | 260mΩ | |
| Number of Outputs | 4 | |
| Power Rating | 1.8W | |
| Number of Inputs | 4 | |
| Mount Type | Surface | |
| Minimum Supply Voltage | -0.3V | |
| Package Type | TSDSO-14 | |
| Pin Count | 14 | |
| Maximum Supply Voltage | 45V | |
| Operating Current | 0.0068A | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 1.15mm | |
| Length | 4.9mm | |
| Width | 6 mm | |
| Automotive Standard | No | |
| Series | PROFET | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Power Switch IC | ||
Power Switch Type High Side | ||
Power Switch Topology High Side | ||
Switch On Resistance RdsOn 260mΩ | ||
Number of Outputs 4 | ||
Power Rating 1.8W | ||
Number of Inputs 4 | ||
Mount Type Surface | ||
Minimum Supply Voltage -0.3V | ||
Package Type TSDSO-14 | ||
Pin Count 14 | ||
Maximum Supply Voltage 45V | ||
Operating Current 0.0068A | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 1.15mm | ||
Length 4.9mm | ||
Width 6 mm | ||
Automotive Standard No | ||
Series PROFET | ||
The Infineon quad channel smart high side power switch provides integrated protection functions and a diagnosis feedback. It's four channels capable of currents of more than 500 mA each. It has optimized electromagnetic compatibility.
It is RoHS compliant
It has optimized electromagnetic compatibility
It has extended supply voltage range up to 45 V
