Infineon High Side 2, High Side Power Switch IC 14-Pin, TSDSO-14

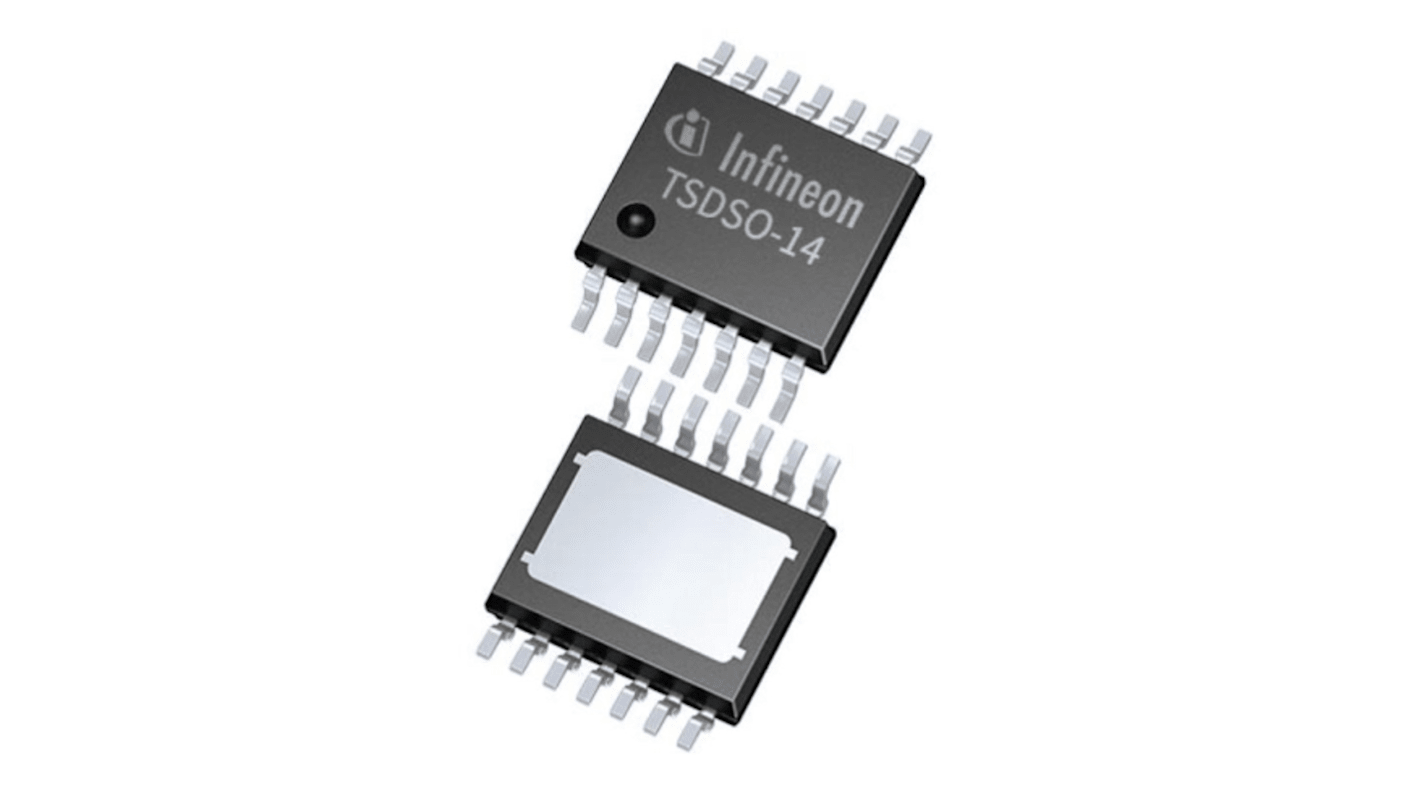

This image is representative of the product range

View all Power Switch ICs
Bulk discount available

Subtotal (1 reel of 3000 units)*

$11,742.00

(exc. GST)

$12,915.00

(inc. GST)

Add to Basket
Select or type quantity
Orders below $60.00 (exc. GST) cost $12.95.
In Stock
  • 3,000 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 - 12000$3.914$11,742.00
15000 +$3.522$10,566.00

*price indicative

RS Stock No.:
229-1853
Mfr. Part No.:
ITS4040DEPDXUMA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

Power Switch IC

Power Switch Topology

High Side

Power Switch Type

High Side

Switch On Resistance RdsOn

80mΩ

Number of Outputs

4

Number of Inputs

2

Mount Type

Surface

Minimum Supply Voltage

-0.3V

Package Type

TSDSO-14

Pin Count

14

Maximum Supply Voltage

45V

Operating Current

0.006A

Maximum Operating Temperature

150°C

Minimum Operating Temperature

-40°C

Height

1.15mm

Length

4.9mm

Standards/Approvals

No

Width

6 mm

Automotive Standard

No

Series

ITS4040D-EP-D

The Infineon dual channel smart high-side power switch provides integrated protection functions and a diagnosis feedback. It has high output current capability and nominal current up to 2.6 A.

It is RoHS compliant

Validated by JEDEC standard

It has 4 kV electrostatic discharge protection
