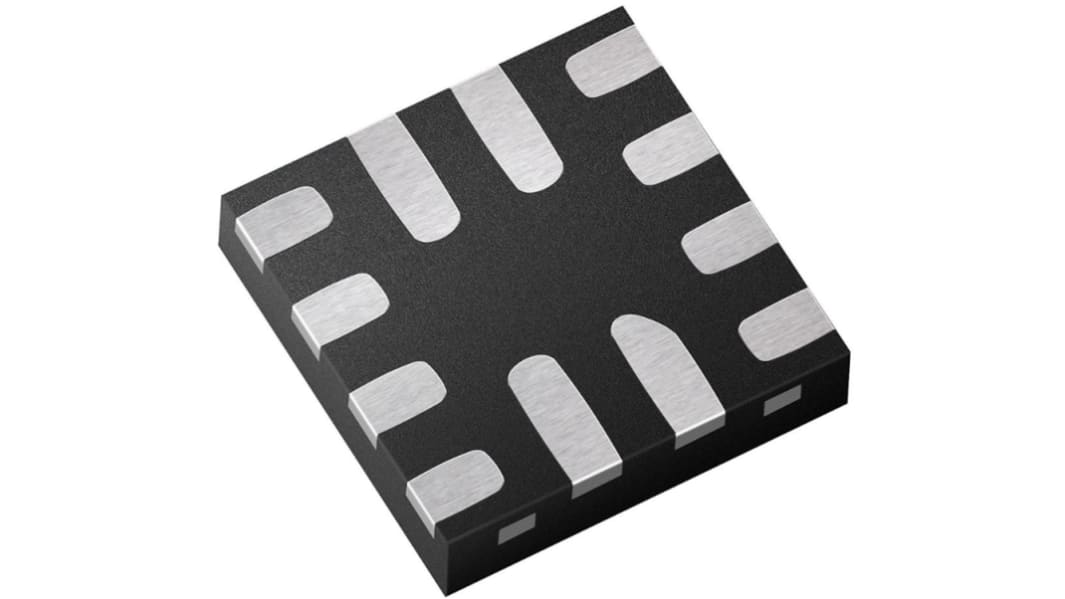

onsemi FUSB303TMX, USB Power Switch IC 12-Pin, QFN
- RS Stock No.:
- 178-4452
- Mfr. Part No.:
- FUSB303TMX
- Brand:
- onsemi
2650 In Global stock for delivery within 10 working day(s)
Price (ex. GST) Each (In a Pack of 50)
$0.76
(exc. GST)
$0.84
(inc. GST)
Units | Per unit | Per Pack* |
---|---|---|
50 - 1200 | $0.76 | $38.00 |
1250 - 2450 | $0.741 | $37.05 |
2500 + | $0.73 | $36.50 |
*price indicative
- RS Stock No.:
- 178-4452
- Mfr. Part No.:
- FUSB303TMX
- Brand:
- onsemi
Technical data sheets
Legislation and Compliance
Product Details
The FUSB303 device is a fully autonomous USB Type−C™ controller optimized for 15 W or less applications. The FUSB303 offers CC logic detection for Source Port role, Sink Port role, DRP, and accessory detection support, as well as Dead Battery support as defined in USB−C specifications. The FUSB303 features configurable address I2C access to support multiple ports per system or it can operate autonomously configured by just pins.
Fully Autonomous USB−C™ Port Controller
Supports Latest Type−C™ Specification Release 1.3
Source, Sink, and DRP Port role Configuration with Optional Accessory Support
Try.SRC and Try.SNK modes for Preferring Source Role or Sink Role Respectively
VDD Operating Range, 2.85 V − 5.5 V
Typical Low Power Operation: ICC < 10μA
GPIO and I2C Configuration
Max 28 V DC Tolerance on ID, VBUS_DET, CC1 and CC2
Dead Battery Support (Sink Port role when No Power Applied)
4 kV HBM ESD Protection for Connector Pins
Supports Latest Type−C™ Specification Release 1.3
Source, Sink, and DRP Port role Configuration with Optional Accessory Support
Try.SRC and Try.SNK modes for Preferring Source Role or Sink Role Respectively
VDD Operating Range, 2.85 V − 5.5 V
Typical Low Power Operation: ICC < 10μA
GPIO and I2C Configuration
Max 28 V DC Tolerance on ID, VBUS_DET, CC1 and CC2
Dead Battery Support (Sink Port role when No Power Applied)
4 kV HBM ESD Protection for Connector Pins
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Power Switch Type | USB |
Maximum Operating Supply Voltage | 22 V |
Number of Outputs | 1 |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 12 |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 1.65 x 1.65 x 0.35mm |
