RS PRO Fire Performance 0.75 mm² 5 Core Power Cable, H05Z1Z1-F, White, 100m

View all Power Cable
Bulk discount available

Subtotal (1 reel of 100 metres)*

$560.75

(exc. GST)

$616.82

(inc. GST)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 - 4$560.75$5.608
5 - 24$533.27$5.333
25 +$438.88$4.389

*price indicative

RS Stock No.:
836-0751
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.75 mm²

Number of Cores

5

Sheath Colour

White

Length

100m

Cable Type

Fire Performance

Outer Diameter

7.4 → 9.3mm

CPR Certification

Eca

Voltage Rating

500 V

European Harmonised Code

H05Z1Z1-F

Conductor Resistance

26 Ω/km

American Wire Gauge

18 AWG

Number of Strands

22

Minimum Operating Temperature

-5°C

Standards Met

BS EN 50525

Fire Behaviour

Flame Retardant

Insulation Material

Thermoplastic

Size of Strands

0.2 mm

Maximum Operating Temperature

+70°C

Conductor Material

Copper

COO (Country of Origin):
TR

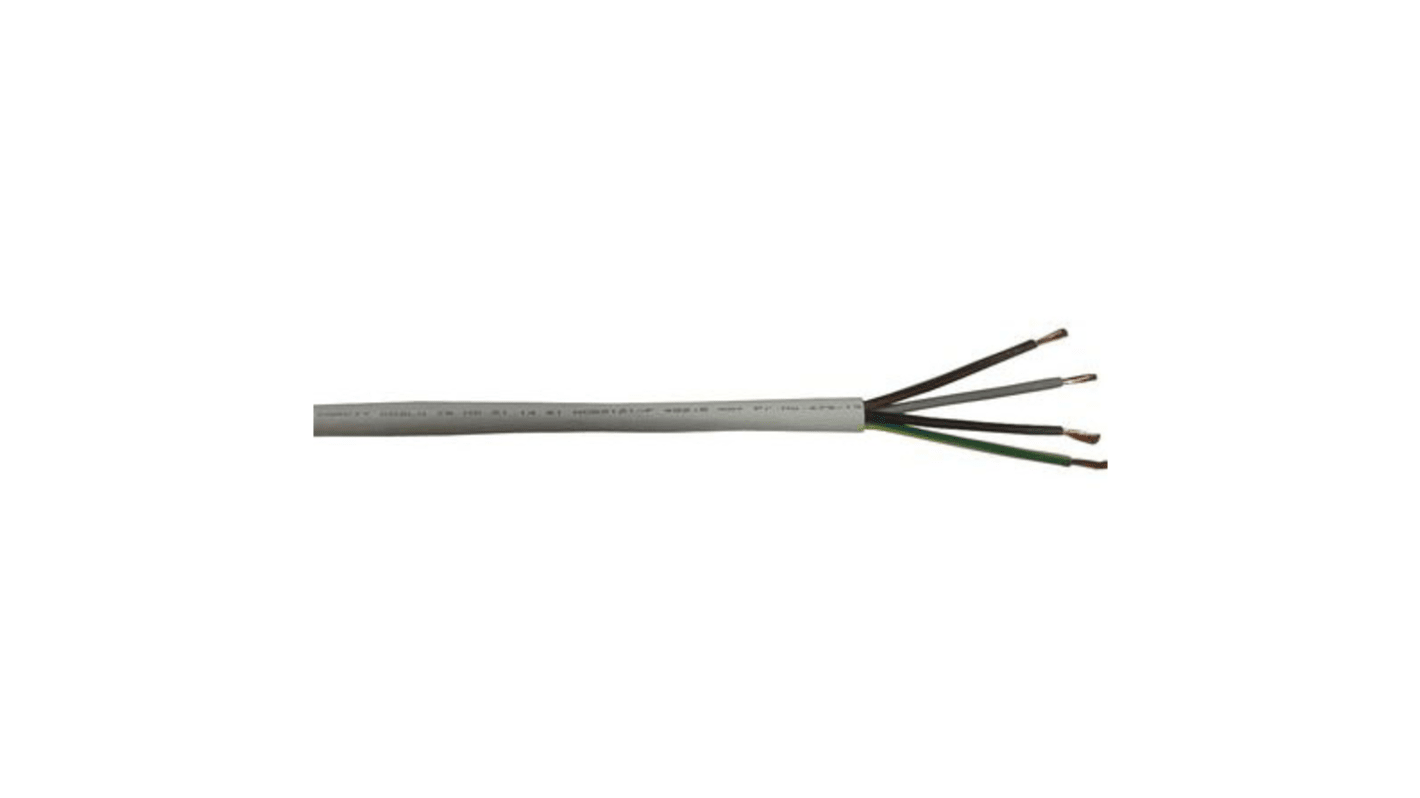

RS PRO 5-Core 0.75 mm² H05Z1Z1-F Power Cable, White, 100 m, 500 V


This robust power cable from RS PRO is well-suited to a wide range of indoor wiring jobs. It has five cores, including an earth core, and is ideal for pendant lighting applications.

This component is a LSZH (low smoke zero halogen) cable, which means it won't release poisonous halogen fumes should be there be a fire. This makes it a safe choice for wiring in public buildings. It also has a flame-resistant, insulated thermoplastic sheath that protects the wires for a long service life.

This cable is 100 metres long, making it easy to connect your appliances to power sources in very large spaces. This type of power cable is well-suited for applications in public areas, from hospitals to airports.

Features and Benefits


  • Wire size of 18 AWG (American Wire Gauge)

  • Low smoke zero halogen (LSZH) cable type

  • Copper conductor material

  • Conductor resistance of 26 Ω/km

  • Cross-sectional area of 0.75 mm²

  • Flame-retardant

  • H05Z1Z1-F harmonised code, indicating superior fire safety

  • Thermoplastic insulation material

  • Length of 100 m

  • Operating temperature range of -5°C to +70°C

  • Five cores

  • 22 strands

  • Outer diameter of 7.4 to 9.3 mm

  • Reference of 3185B

  • Indoor series

  • White sheath colour

  • Strand size of 0.2 mm

  • Meets BS EN 50525 standards for power cables for domestic and industrial appliances

  • Voltage rating of 500 V
