- RS Stock No.:
- 451-6969
- Mfr. Part No.:
- 73220236
- Brand:
- Lapp
133 In Global stock for delivery within 10 working day(s)
Added
Price (ex. GST) Each
$84.59
(exc. GST)
$93.05
(inc. GST)
Units | Per unit |
1 + | $84.59 |
- RS Stock No.:
- 451-6969
- Mfr. Part No.:
- 73220236
- Brand:
- Lapp
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

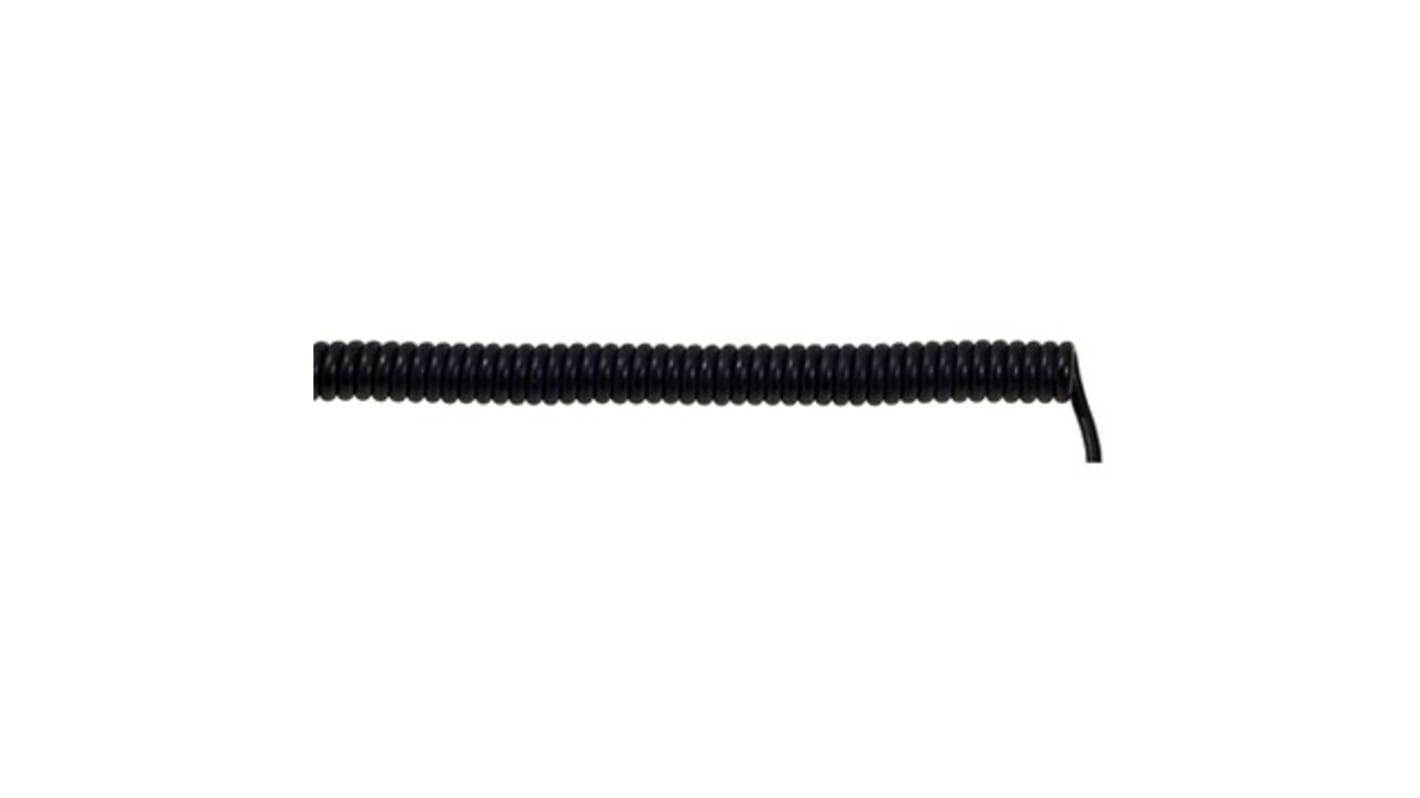

SPIREX® DATA spiral cable
From Lapp, this Spirex Data cable is a data and control cable with a spiral construction that offers greater flexibility. The coiled cable is abrasion resistant, and can extend up to four times its closed spiral length, resulting in a versatile and robust connection solution.
The Spirex cable is also screened, which means it is suitable for use in areas where electrical interference might be a concern. It also features oil-resistance, for extra protection when used in challenging environments.
Data spiral cables are used wherever shielded cables with compact dimensions are required.
Features and Benefits
Shielded with a Cu covering
Mechanical resistance
Abrasion and cut resistance
Oil resistance
Friction-proof outer sheath
Very high flexibility
Applications
This coiled data cable is ideal for electronic applications where space saving and flexibility is a a requirement. It is often used in;
Measurement and control engineering
Handling and measurement equipment
Conveyor and transport systems
Accessories
Lapp Spirex cables should be used alongside accessories that match their capabilities. As such, Lapp provides a range of easy-to-install cable glands.
560-707 is an M12 Skintop Click Cable Gland
475-075 is an M16 Skintop Click Cable Gland
475-057 is an M20 Skintop Click Cable Gland
475-097 is an M25 Skintop Click Cable Gland
560-662 is an M32 Skintop Click Cable Gland
The Spirex cable is also screened, which means it is suitable for use in areas where electrical interference might be a concern. It also features oil-resistance, for extra protection when used in challenging environments.
Data spiral cables are used wherever shielded cables with compact dimensions are required.
Features and Benefits
Shielded with a Cu covering
Mechanical resistance
Abrasion and cut resistance
Oil resistance
Friction-proof outer sheath
Very high flexibility
Applications
This coiled data cable is ideal for electronic applications where space saving and flexibility is a a requirement. It is often used in;
Measurement and control engineering
Handling and measurement equipment
Conveyor and transport systems
Accessories
Lapp Spirex cables should be used alongside accessories that match their capabilities. As such, Lapp provides a range of easy-to-install cable glands.
560-707 is an M12 Skintop Click Cable Gland
475-075 is an M16 Skintop Click Cable Gland
475-057 is an M20 Skintop Click Cable Gland
475-097 is an M25 Skintop Click Cable Gland
560-662 is an M32 Skintop Click Cable Gland
Data spiral cables are used wherever shielded cables with compact dimensions are required.
Shielded with a Cu covering
Friction-proof outer sheath
Very high flexibility
Extended lengths up to four times the length of the closed spiral
Fine-wire stranded cable
Friction-proof outer sheath
Very high flexibility
Extended lengths up to four times the length of the closed spiral
Fine-wire stranded cable
Standards
Core ID code in accordance with DIN 47100; conductor construction in accordance with VDE 0295/6
Specifications
Attribute | Value |
---|---|
Cross Sectional Area | 0.14 mm² |
Number of Cores | 18 |
Sheath Colour | Black |
Length | 200mm |
Cable Type | Coiled |
Sheath Material | Polyurethane PUR |
Outer Diameter | 7.8mm |
Voltage Rating | 350 V |
Standards Met | CE |
Minimum Operating Temperature | -5°C |
Insulation Material | PVC |
Cable Shape | Coiled Multicore |
Coil Diameter | 200mm |
Size of Strands | 38 AWG |
Maximum Operating Temperature | +50°C |
Uncoiled Length | 800 mm |
Number of Strands | 18 |
Series | UNITRONIC |
Core Strands | 18/38 |
Conductor Material | Bare Copper |
